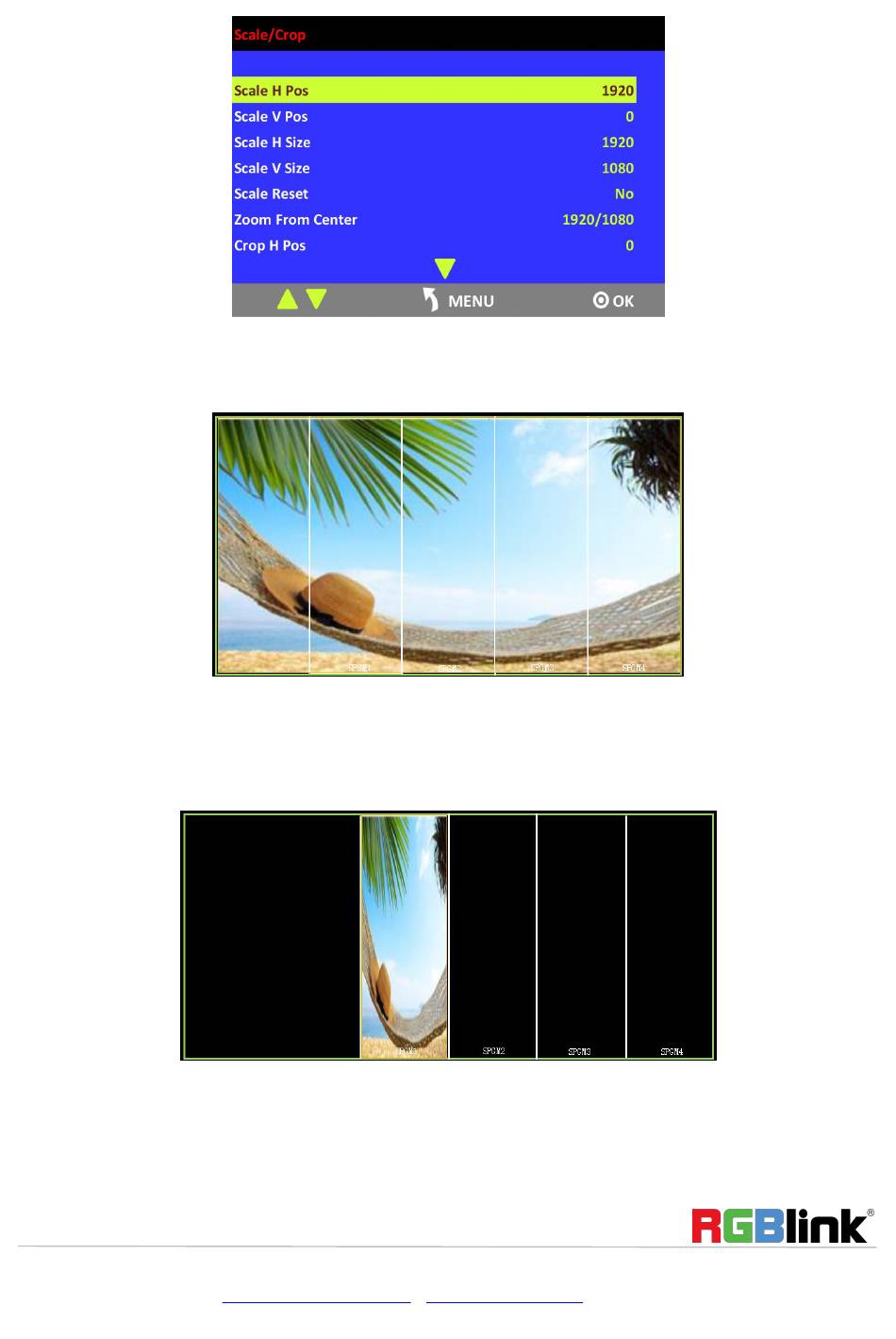

According to the parameters from Step 2, set Scale H Pos as 0 and Scale H Size as 9600, [1920
(PGM)+1920 (SPGM1)+1920 (SPGM2)+1920 (SPGM3)+1920 (SPGM4)=9600], as shown in the figure
below:
IIIIII Splicing Mode
(1) Push the [SYSTEM] button, and enter to the menu items, select <4K1K> in <Output> option, and select "ON".
(2) Select the splicing mode <IIIII>.
(3) Select the signal, for example, select signal 5, as shown below:
(4) Then, the H Total is 11520, V Total is 1080.
PGM1: PGM1 Pos X is 0, PGM1 Pos Y is 0, PGM1 H Size is 1920, PGM1 V Size is 1080.
PGM2: PGM2 Pos X is 1920, PGM2 Pos Y is 0, PGM2 H Size is 1920, PGM2 V Size is 1080.
SPGM 1: SPGM 1 Pos X is 3840, SPGM 1 Pos Y is 0, SPGM 1 H Size is 1920, SPGM 1 V Size is 1080.
SPGM 2: SPGM 2 Pos X is 5760, SPGM 2 Pos Y is 0, SPGM 2 H Size is 1920, SPGM 2 V Size is 1080.
