RGBlink M3 Quick Start Manual page 25

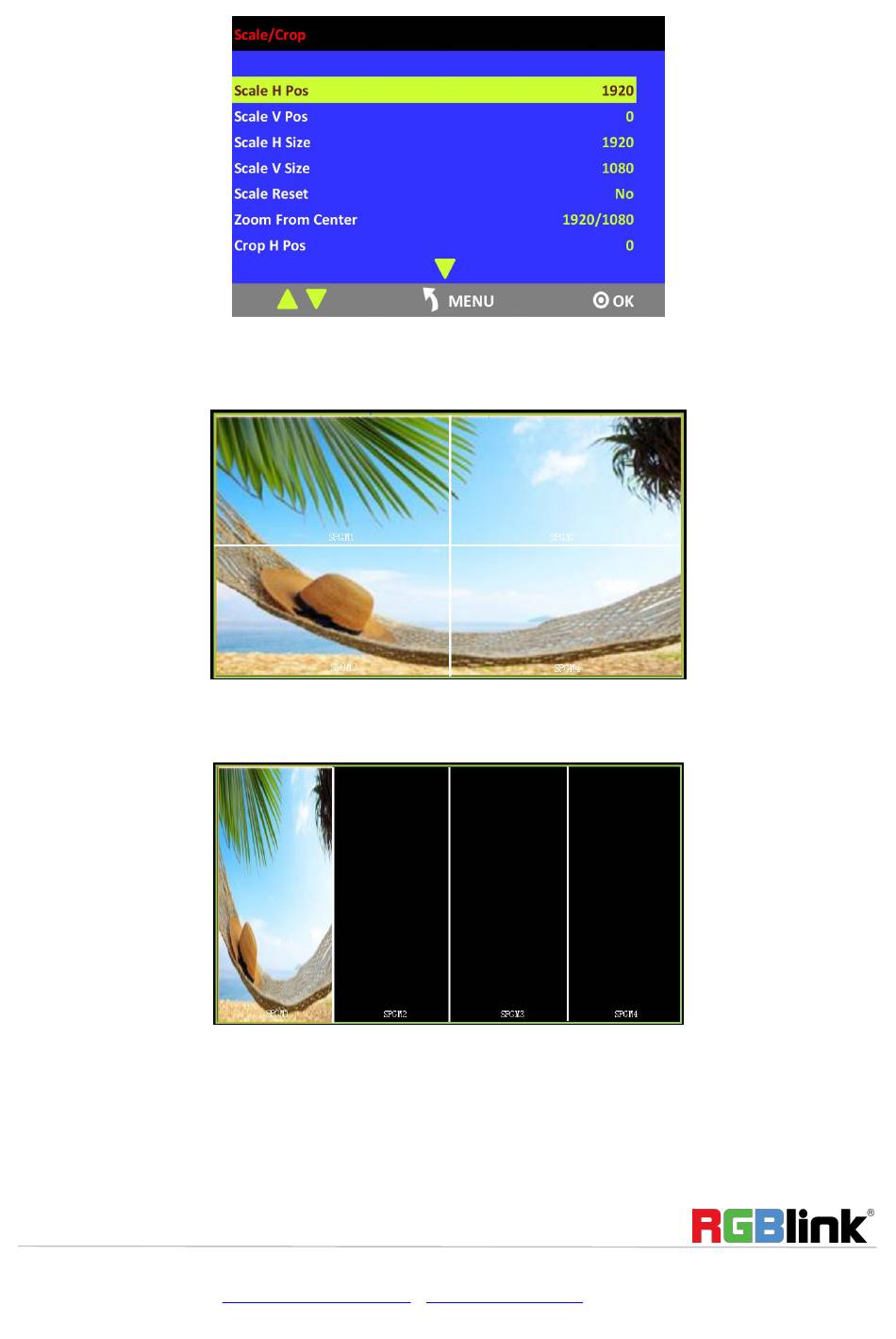

According to the parameters from Step 2, set Scale H Size as 3840, [1920 (SPGM1/3)+1920
(SPGM2/4)=3840], and set Scale V Size as 2160 [1080 (SPGM1/3)+1080 (SPGM2/4)=2160]. The image or
video will output to the 4 split screens, as shown in the figure below:
IIII Splicing Mode
(1) Select the signal, for example, select signal 5, as shown below:
(2) Then, the H Total is 7680, V Total is 1080.
SPGM 1: SPGM 1 Pos X is 0, SPGM 1 Pos Y is 0, SPGM 1 H Size is 1920, SPGM 1 V Size is 1080.
SPGM 2: SPGM 2 Pos X is 1920, SPGM 2 Pos Y is 0, SPGM 2 H Size is 1920, SPGM 2 V Size is 1080.
SPGM 3: SPGM 3 Pos X is 3840, SPGM 3 Pos Y is 0, SPGM 3 H Size is 1920, SPGM 3 V Size is 1080.
SPGM 4: SPGM 4 Pos X is 5760, SPGM 4 Pos Y is 0, SPGM 4 H Size is 1920, SPGM 4 V Size is 1080.
