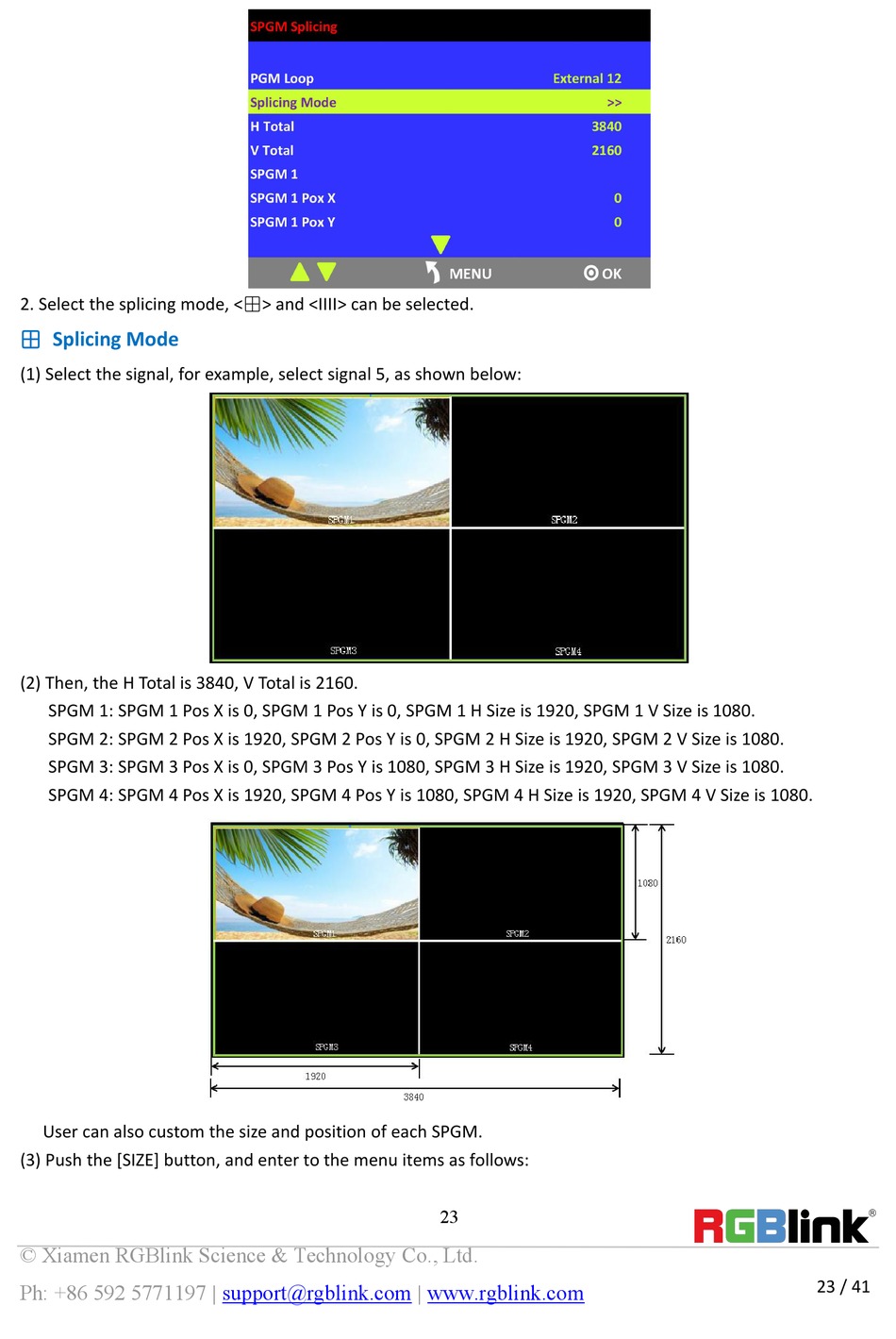

RGBlink M3 Quick Start Manual page 24

2. Select the splicing mode, <田> and <IIII> can be selected.
田 Splicing Mode
(1) Select the signal, for example, select signal 5, as shown below:
(2) Then, the H Total is 3840, V Total is 2160.
SPGM 1: SPGM 1 Pos X is 0, SPGM 1 Pos Y is 0, SPGM 1 H Size is 1920, SPGM 1 V Size is 1080.
SPGM 2: SPGM 2 Pos X is 1920, SPGM 2 Pos Y is 0, SPGM 2 H Size is 1920, SPGM 2 V Size is 1080.
SPGM 3: SPGM 3 Pos X is 0, SPGM 3 Pos Y is 1080, SPGM 3 H Size is 1920, SPGM 3 V Size is 1080.
SPGM 4: SPGM 4 Pos X is 1920, SPGM 4 Pos Y is 1080, SPGM 4 H Size is 1920, SPGM 4 V Size is 1080.
User can also custom the size and position of each SPGM.
(3) Push the [SIZE] button, and enter to the menu items as follows:
