Select effect:
Turn the knob, and select <MASK>, push the knob to confirm. Turn the rotary knob, and select the effects,
diamond, round, heart, star, triangle, oval, hexagons, pentagon, 4 point star, 6 point star, lighting, crescent
left and crescent right.
Mask setting:
M3 support load file from UDisk, and set the selected layer, including effect & PIC Pos X, Y, effect X, Y, PIC
Pos X, Y.
WIPE Setting

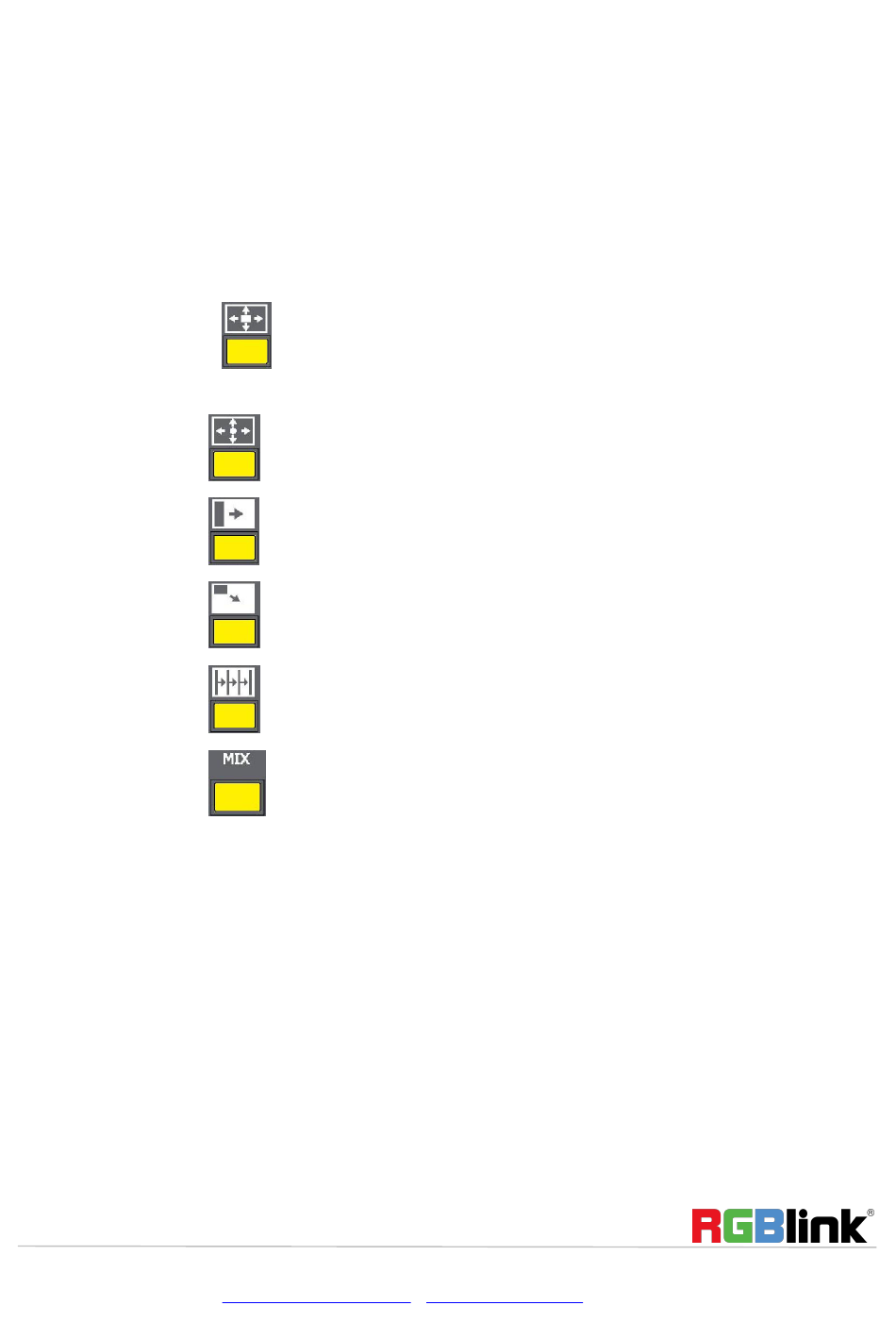

1. Push the WIPE buttons in WIPE Operation Area, M3 supports 14 kinds of wipe modes:
Push the wipe button
T←M→B.
Push the wipe button
Push the wipe button
Push the wipe button
Push the wipe button
Push the wipe button
2. Push the [TAKE] button, or use T-bar switcher to switch the image to program with selected wipe.
Custom LOGO
Push the [LOGO] button in PST/PGM Monitor Area and enter to the logo items as below:
© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: +86 592 5771197 |
, there are 6 kinds of mode: ←□→, →□←, ← ＋ →, → ＋ ←, L←M→R, and
can select ←O→ mode.
, there are 2 kinds of mode: R→L, L→R.
, there are 3 kinds of mode: T→B, B→T, LT→RB.
, can select III→.
, can select fade mode.
