EC900-FS6 Installation Guide
• EC900-FS6 system unit
• 10-pole terminal block for RS-422/4-bit DIO
• 2-pole terminal block for RS-485
• 2-pole terminal block for power input
• DIN-rail bracket/screw pack

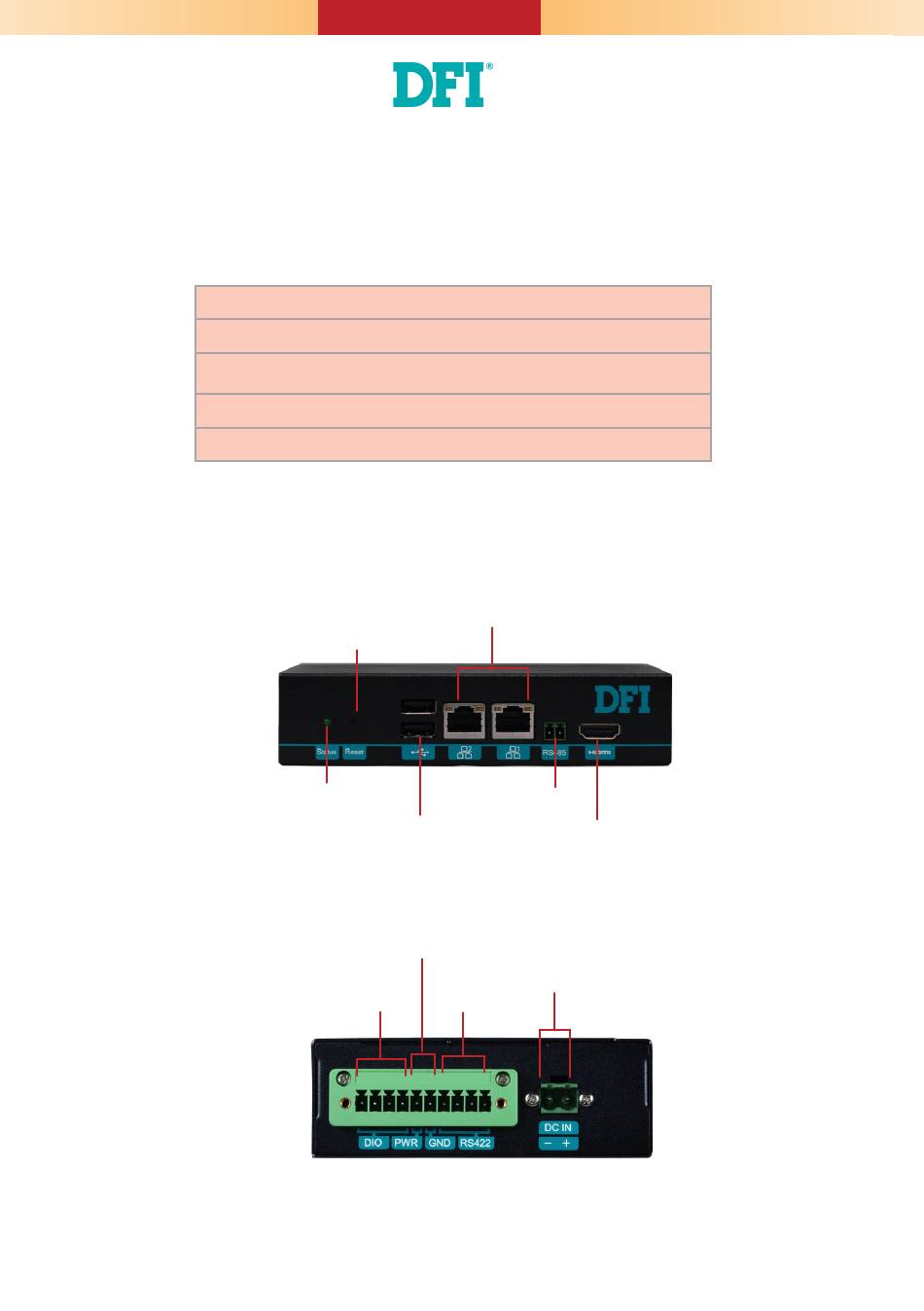

Front View
Rear View
DFI reserves the right to change the specifications at any time prior to the product's release. For the latest revision and details of the
installation process, please refer to the user's manual.
Package Contents
Panel
LAN 2 LAN 1
Reset
Status LED
(green)
USB 2.0
Power (1-pin)
Ground (1-pin)
Digital IO
(4-pin)
RS422 (4-pin)
www.dfi.com
1
COM (RS485)
HDMI
DC-in
Advertisement
Table of Contents
Related Manuals for DFI EC900-FS6
Summary of Contents for DFI EC900-FS6
- Page 1 Digital IO (4-pin) RS422 (4-pin) Rear View DFI reserves the right to change the specifications at any time prior to the product's release. For the latest revision and details of the installation process, please refer to the user's manual. www.dfi.com...
- Page 2 Removing the Chassis Cover Please observe the following guidelines and follow the procedure to open the system. 1. Make sure the system and all other peripheral devices connected to it have been powered off. 2. Disconnect all power cords and cables. 3.
- Page 3 Installing a Mini PCIe Card The system board is equipped with 1 Mini PCIe slot that supports both PCIe and USB signals. 1. Grasp the Mini PCIe card by its edges and align the notch of the PCIe card with the key in the connector on the system board. 2.
- Page 4 DIN-Rail Mount The system features DIN-rail mount chassis that facilitates fast installation of the EC900-FS6 to a DIN rail. The din-rail mount kit includes the following: • Din-rail mount bracket • 2 screws 1. Use the provided mounting screws to attach the din-rail mount bracket to the rear side of the device.
- Page 5 Communication Port Pin Assignments The system is equipped with one 10-pole terminal block that enables digital input/ output with power and RS422 communication on the side panel. Power (1-pin) Ground (1-pin) DC-in ̶ + Digital IO RS422 (4-pin) (4-pin) 1 2 3 4 1 2 3 4 Digital Input/output Pin Assignments...
- Page 6 SW5 can be conveniently accessed from the opening on the bottom chassis. This switch is for development and troubleshooting which should only be performed by developers and service technicians who are fully aware of the outcome of any changes to the settings. www.dfi.com A48312914...
