DFI EC710-ASL User Manual

Fanless embedded system

Hide thumbs Also See for EC710-ASL:

Quick installation manual (8 pages)

page of 59

/ 59
Bookmarks

Quick Links

Download this manual

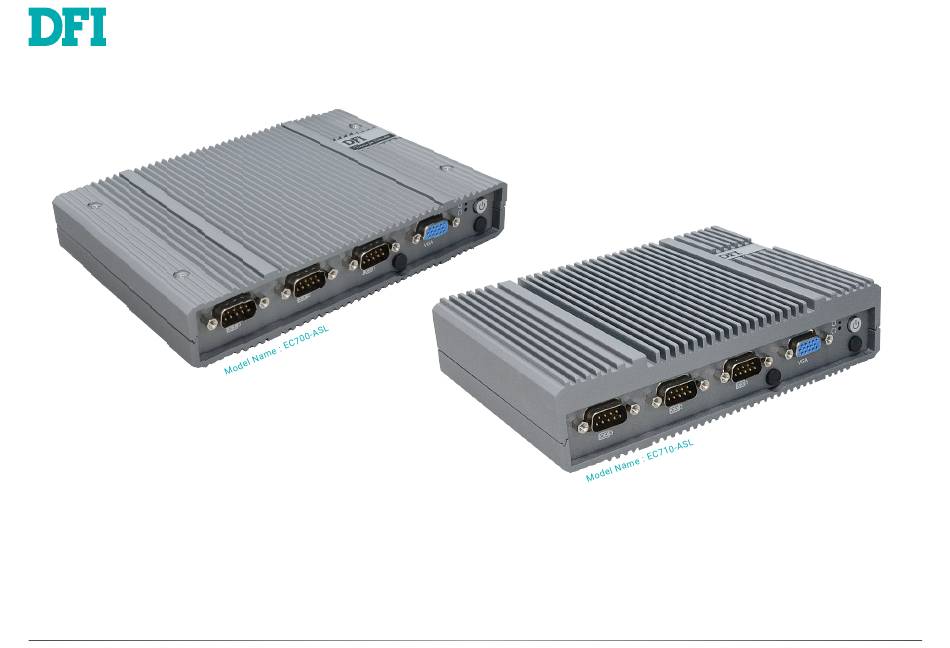

EC700-ASL/ EC710-ASL

Fanless Embedded System

User's Manual

Need help?

Do you have a question about the EC710-ASL and is the answer not in the manual?

Questions and answers

Summary of Contents for DFI EC710-ASL

Page 2 1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | EC700-ASL/ EC710-ASL...
Page 3 Overview ..........................22 OOB IP Address Change ......................58 Main ............................23 SSH ..........................58 Advanced ..........................23 Console Redirection ......................59 RC ACPI Configuration ....................24 CPU Configuration ......................24 Power & Performance ....................25 PCH-FW Configuration ....................25 Intel (R) Time Coordinated Computing ................26 User's Manual | EC700-ASL/ EC710-ASL...
Page 4 It must be returned to the purchase point, factory or authorized service agency for all such work. 4. We will not be liable for any indirect, special, incidental or consequential damages to the product that has been modified or altered. User's Manual | EC700-ASL/ EC710-ASL...
Page 5 Make sure the system is placed or mounted correctly and stably to prevent the chance of dropping or falling may cause damage. • The openings on the system shall not be blocked and shall be kept in distance from User's Manual | EC700-ASL/ EC710-ASL...
Page 6 Front View COM3 LAN1/2 ( 2.5G ) COM2 LAN3 COM1 USB-C HDMI ▲Storage LED Line Out / Mic In ▼Reset Button Rear View Power Button COM4 / DIO Antenna Holes Grounding DC In USB3.2 Type A User's Manual | EC700-ASL/ EC710-ASL...
Page 7 Front View COM3 LAN1/2 ( 2.5G ) COM2 LAN3 COM1 USB-C HDMI ▲Storage LED Line Out / Mic In ▼Reset Button Rear View Power Button COM4 / DIO Antenna Holes Grounding DC In USB3.2 Type A User's Manual | EC700-ASL/ EC710-ASL...
Page 8 Supported by X series CPU and TSN standard up to 2.5GbE (Opt.) On Board DDR5 & eMMC Support: LPDDR5 4800 MHz memory down eMMC module –Easy maintenance. Up to Quad Display Support: Support via HDMI/USB-C/VGA, Quad display support by Dev. EC710-ASL User's Manual | EC700-ASL/ EC710-ASL...
Page 9 Chapter 1 INTRODUCTION X Block Diagram User's Manual | EC700-ASL/ EC710-ASL...
Page 10 Chapter 1 INTRODUCTION X Specifications **EC710-ASL with 43mm system height by project support. Intel Industrial RE Series ® Intel Processor X7433RE 4 Cores, 1.5GHz to 3.4GHz ® Intel Processor X7213RE 2 Cores, 2.0GHz to 3.4GHz ® Processor Intel Processor X7211RE 2 Cores, 1.0GHz to 3.2 GHz ®...
Page 11 Chapter 1 INTRODUCTION 2 x Intel Ethernet controller i226 2.5GbE (TSN support by project) ETHERNET Controller 1 x Intel Ethernet controller i210 GbE (support DFI OOB function) AUDIO Audio Codec REALTEK ALC888S 1 x Power LED Indicators 1 x Storage LED...
Page 12 Dimensions (W x H x D) 180 x 33 x 127.8 mm Weight Shock 30G, IEC-60068-2-27 MIL-STD-810G (During Operation) STANDARDS AND Vibration 3 Grms, IEC 60068-2-64 MIL-STD-810G CERTIFICATIONS (During Operation) Certifications CE, FCC, RoHS, UKCA User's Manual | EC700-ASL/ EC710-ASL...
Page 13 The 4 screws of the system are used to secure the cover to the chassis. Remove the screws and put them in a safe place for later use. Step 3: The boards can be easily accessed after the chassis cover is removed. User's Manual | EC700-ASL/ EC710-ASL...
Page 14 Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. M.2 B Socket User's Manual | EC700-ASL/ EC710-ASL...
Page 15 Connect the internal cable to the board's antenna connector, screw the antenna connector through the antenna hole with washers and nuts, and screw on the antenna as illustrated below. Antenna Chassis Wall Module Connector Cable Antenna Connector Washer User's Manual | EC700-ASL/ EC710-ASL...
Page 16 Screw on the two brackets onto the system tightly as illustrated below. EC700-ASL EC710-ASL Wall Mount Bracket Wall Mount Bracket Wall Mount Bracket Wall Mount Bracket User's Manual | EC700-ASL/ EC710-ASL...
Page 17 Attache the brackets to the bottom side of the system as illustrated below. Mount the assembly onto the VESA mount bracket previously attached to the back of a monitor. EC710-ASL EC700-ASL User's Manual | EC700-ASL/ EC710-ASL...
Page 18 It does not matter which side of the system the brackets are mounted onto and what orientation of the system is. The brackets and mounting screw holes are highly symetrycal. Please configure the mounting according to field needs. User's Manual | EC700-ASL/ EC710-ASL...
Page 19 ESD protection. „ COM Connect to both JP1 & JP2 : Connect to both JP1 & JP2 : 2-3, 5-6, 8-9, 11-12 On 1-2, 4-5, 7-8, 10-11 On User's Manual | EC700-ASL/ EC710-ASL...
Page 20 Chapter 3 SYSTEM SETTINGS X Pin Assignment I2C Header (J8) Front Panel (JP4) Assignment Assignment Assignment PWR_BTN SUS_LED# I2C_SCL SYS_RST HD_LED# I2C_SDA I2C_INT User's Manual | EC700-ASL/ EC710-ASL...
Page 21 Connect to JP1 (pin 2, ,5, 8, 11) &JP2 (pin 2, ,5, 8, 11) if there is internal signal communication request via DB9-COM4 connector without I/O shield changed. „ JP2 „ JP1 Assignment Assignment --> --> USB2_N --> --> USB2_P --> --> --> --> CASEOPEN- User's Manual | EC700-ASL/ EC710-ASL...
Page 22 “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. User's Manual | EC700-ASL/ EC710-ASL...
Page 23 The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | EC700-ASL/ EC710-ASL...
Page 24 S0 State The system automatically powers on after power failure. S5 State The system enter soft-off state after power failure. Power-on signal input is required to power up the system. Last State The system returns to the last state right before power failure. User's Manual | EC700-ASL/ EC710-ASL...
Page 25 Enable or disable turbo mode of the processor. This field will only be displayed when EIST is enabled. C states Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and nothing is executing. User's Manual | EC700-ASL/ EC710-ASL...
Page 26 Enable or Disable Intel(R) TCC Mode. When enabled, this will modify system settings to improve real-time pertormance. The full list of settings and their current state are displayed below when Intel(R) TCC mode is enabled. User's Manual | EC700-ASL/ EC710-ASL...
Page 27 Select WatchDog Timer Unit — Second or Minute. SuperIO WatchDog Timer Set SuperIO WatchDog Timer Timeout value. The range is from 0 (disabled) to 255. Serial Port Enable or disable serial port. COM Mode Choose mode between RS232 / RS485 / RS422 User's Manual | EC700-ASL/ EC710-ASL...
Page 28 This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Serial Port Enable or disable serial port. COM Mode Choose mode between RS232 / RS485 / RS422 User's Manual | EC700-ASL/ EC710-ASL...
Page 29 Select data bits: 7 bits or 8 bits. Parity Select parity bits: None, Even, Odd, Mark or Space. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: None or RTS/CTS. User's Manual | EC700-ASL/ EC710-ASL...
Page 30 Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | EC700-ASL/ EC710-ASL...
Page 31 Chapter 4 BIOS SETTINGS Chipset X Chipset System Agnet (SA) Configuration Memory Configuration Memory Configuration Parameter. Graphics Configuration Settings about graphic. User's Manual | EC700-ASL/ EC710-ASL...
Page 32 0: Functional Mode protects requests based on the address range Keep IGFX enabled based on the setup options. 1: Makes all requests non protected and ignore range checks 2: Makes all requests protected and ignore range checks User's Manual | EC700-ASL/ EC710-ASL...
Page 33 LAN1 , LAN2 , LAN3 & M.2-E/ M.2-B, M.2-M PCI Express Configuration Control the PCI Express Root Port. PCI Express Configuration Settings SATA And RST Configuration SATA Device Otpions Settings HD Audio Configuration HD Audio Subsystem Configuration Settings User's Manual | EC700-ASL/ EC710-ASL...
Page 34 　• Intel RST Premium With Intel Optane System Acceleration This option allows you to create RAID or Intel Rapid Storage configuration along with Intel® Optane™ system acceleration on Serial ATA devices. Ports Enable or disable the Serial ATA port function. User's Manual | EC700-ASL/ EC710-ASL...
Page 35 Secure Boot. Press Enter and a prompt will show up for you to confirm. Reset To Setup Mode Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. User's Manual | EC700-ASL/ EC710-ASL...
Page 36 Select this option to save BIOS configuration settings to a USB flash device. ► Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore set- ting from the USB flash device. User's Manual | EC700-ASL/ EC710-ASL...
Page 37 MAC address should be burned or not. c. After updating unique MAC Address from manufacturing, NVM will be protected immediately after power cycle. Users cannot update NVM or MAC address. User's Manual | EC700-ASL/ EC710-ASL...
Page 38 ► Remote hardware monitor log ► Recovery (Factory Mode) ► Remote BIOS setup & uefi shell (serial over lan) ► Remote BIOS update SPI-NAND ► Remote BIOS update SOL & DFI USB-Storage ► Change OOB IP address User's Manual | EC700-ASL/ EC710-ASL...
Page 39 Chapter 5 EC700/EC710-ASL Out Of Band Setup X EC700/EC710-ASL cBMC LAN3 User's Manual | EC700-ASL/ EC710-ASL...
Page 40 Chapter 5 EC700/EC710-ASL Out Of Band Setup X Default Password Setting Step 1: Step 2: The default password can be obtained through the "ping" and "arp -a" commands. Use a LAN cable to connect a LAN port on PC and a LAN port (i210) on the board.
Page 41 Setup Lan IP Address - Open Network Status go to Advanced network settings and click Type in the following information, then press OK. Change adapter options, double click Ethernet. IP address: 192.168.10.99 Subnet mask: 255.255.255.0 Note: Remote PC and DFI system shall be in the same network domain. User's Manual | EC700-ASL/ EC710-ASL...
Page 42 Chapter 5 EC700/EC710-ASL Out Of Band Setup Open SSH login Step 4: Execute windows Command Prompt. To run the command prompt: Please obtain a default password before logging in, and type in the information as follows: ■ Pressing Windows key + R key to open "Run" box. Type "cmd" and then click "OK".
Page 43 Chapter 5 EC700/EC710-ASL Out Of Band Setup Use SSH key Pair Login Step 2: Step 1: Please obtain a default password before logging in, and type in the information as follows: Execute windows Command Prompt. C:\users\user name> : ssh root@192.168.10.100 "mkdir -p ~/.ssh && chmod 700 ~/.ssh"...
Page 44 Chapter 5 EC700/EC710-ASL Out Of Band Setup Step 3: • Use SSH key Pair Login - Change A Path and Create A Filename Please enter the command as follows: scp C:\Users\test\.ssh\id_rsa.pub root@192.168.10.100:~/.ssh/authorized_keys You can also type in a path location where you want to save the file and create a file name.
Page 45 Chapter 5 EC700/EC710-ASL Out Of Band Setup Step 1: Step 2: Please obtain a default password before logging in, and type in the information as follows: Please enter the command as follows: C:\users\user name> : ssh root@192.168.10.100 "mkdir -p ~/.ssh && chmod 700 ~/.ssh"...
Page 46 Chapter 5 EC700/EC710-ASL Out Of Band Setup X Remote Control PC Power On/Off User's Manual | EC700-ASL/ EC710-ASL...
Page 47 Chapter 5 EC700/EC710-ASL Out Of Band Setup Turn On/Off PC Remotely PC Power On/Off Status Check After the status check, you can control PC power on/off remotely. Please complete Default Password Setting - Step 4 before entering the following command.
Page 48 Chapter 5 EC700/EC710-ASL Out Of Band Setup PC Rebooting Perform a Timed Force Shutdown To reboot the PC, please type in the following command. To forcibly shut down the PC, please type in the following command. You will hear a single beep, it means PC rebooted successfully.
Page 49 To start super I/O log: ./sio_start_log.sh YYYY-MM-DD hh:mm:ss hours /DFI/sio_log & Shell Script : For example: ./sio_start_log.sh 2024-05-24 09:00:00:00 24 /DFI/sio_log & Make sure to add the ampersand "&" at the end to run in the background. To stop super I/O log: ./sio_stop_log.sh...
Page 50 Chapter 5 EC700/EC710-ASL Out Of Band Setup How to Export Super I/O Logs From OOB To export super I/O log, please type in the following command. Please complete Default Password Setting - Step 4 before entering the following command. scp -r root@192.168.10.100:/DFI/sio_log C:\Users\username\.ssh Shell Script : For example: scp -r root@192.168.10.100:/DFI/sio_log C:\Users\yili.pan\.ssh...
Page 51 Chapter 5 EC700/EC710-ASL Out Of Band Setup X Using USB Storage / MicroSD Card to run actions The shell scripts for USB storage Please execute the following commands to switch between the USB flash drive and the mi- croSD card for the device operations.
Page 52 Please fast forward the video to 1:31 and follow the steps of how to request the BIOS files from DFI. Step 2: Copy BIOS bin file to its corresponding users folder in C drive. User's Manual | EC700-ASL/ EC710-ASL...
Page 53 Shell Script : root@192.168.10.100's password: Note: For creating a default password, please refer to Default Password Setting - Step Refresh DFI USB storage to notify windows ssh root@192.168.10.100 ./DFI/refresh_usb_storage.sh Shell Script : Step 4: Run SSH command: Please type in the information as follows: C:\users\user name>...
Page 54 Chapter 5 EC700/EC710-ASL Out Of Band Setup Remote BIOS Update (Via Teraterm) ・・ Remote BIOS Update (SOL & DFI USB-Storage) Remote BIOS Setup & UEFI shell (Serial Over Lan) User's Manual | EC700-ASL/ EC710-ASL...
Page 55 Chapter 5 EC700/EC710-ASL Out Of Band Setup Check BIOS Set Up from USB Storage BIOS set up is on USB storage Before starting BIOS update, please make sure the To check BIOS set up, please execute a shell script as following: ./insert_usb_storage.sh...
Page 56 BIOS files from DFI. Step 2: TeraTerm is already included in the DFI system. After successfully booting to OOB, you will see a USB flash drive in the DFI system. • How to Access BIOS Setup Menu When Power on Please copy the teraterm folder from the USB flash drive to the computer where you want to operate the OOB.
Page 57 When system power is on, press "ESC" key in the teraterm window. When there is no error message displayed, the BIOS update will be completed successfully. Boot from DFI USB-Storage device &Update BIOS in uefi mode Save & Exit ---> UEFI: DFI USB-Storage...
Page 58 Chapter 5 EC700/EC710-ASL Out Of Band Setup X OOB IP Address Change Step 1: Step 2: In the new command prompts window, login to OOB with SSH Execute windows Command Prompt. root@(Input new IP address) To run the command prompt: ■...
Page 59 Chapter 5 EC700/EC710-ASL Out Of Band Setup Console Redirection The old IP address Step 1: After the IP address changes, Console Redirection is unable to run commands. To fix the problme, please navigate to C:\Program Files (x86)\teraterm to look for a TTL file named 'telnet.ttl.' This file needs to be modified.
