DFI EC300-CS Quick Installation Manual

Edge ai embedded system
Hide thumbs Also See for EC300-CS:

Advertisement

Quick Links

Quick Installation Guide
EC300-CS
Edge AI Embedded System
© July 17, 2024 DFI Inc.
Package Contents
• 1 EC300-CS System Unit
• 1 Mounting Bracket
• 1 Power Connector
www.dfi.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the EC300-CS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DFI EC300-CS

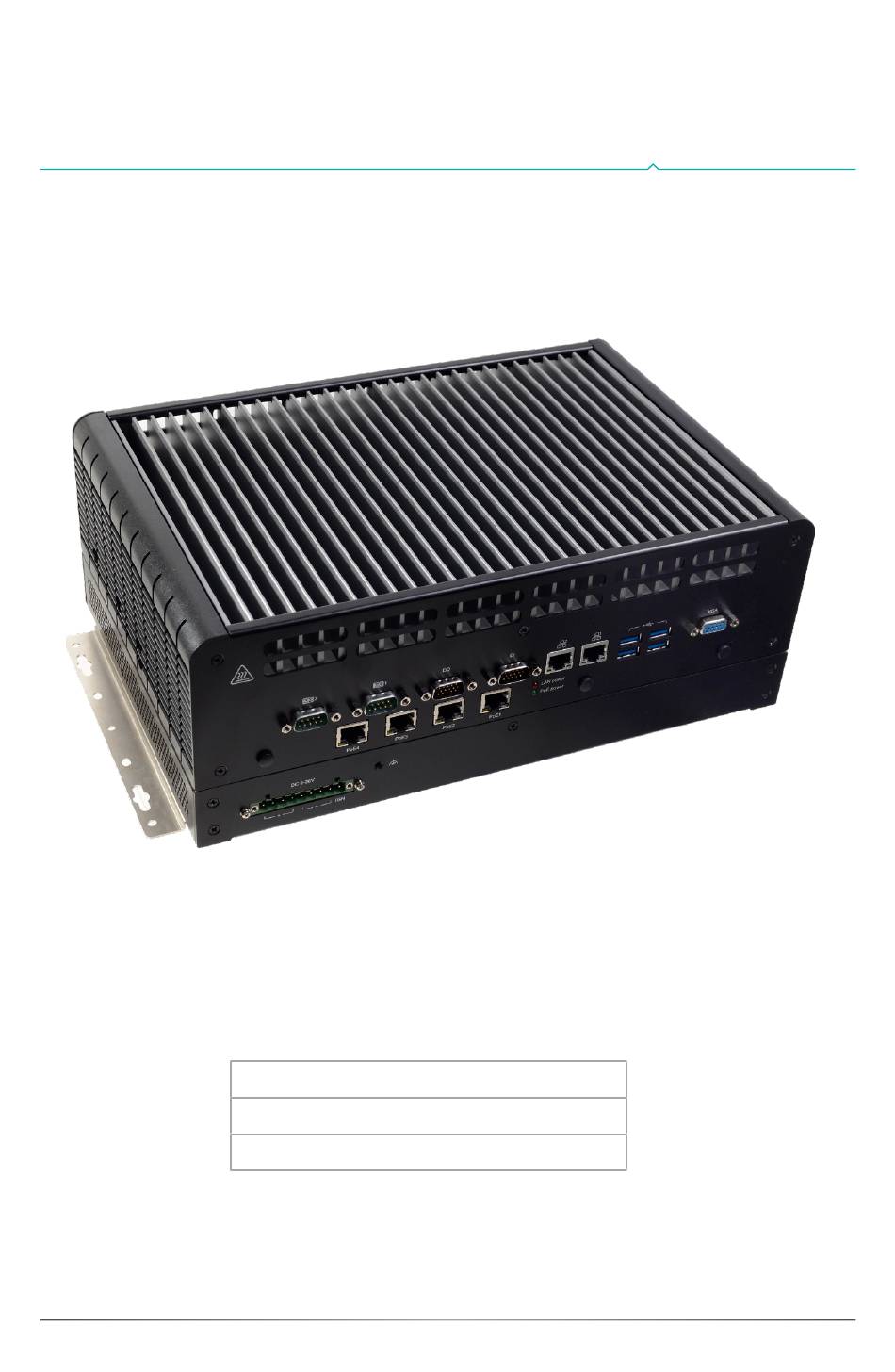

  • Page 1 Quick Installation Guide EC300-CS Edge AI Embedded System www.dfi.com Package Contents • 1 EC300-CS System Unit • 1 Mounting Bracket • 1 Power Connector © July 17, 2024 DFI Inc.
  • Page 2: Product Overview

    Product Overview Front View PoE4 COM2 DC-in 9~36V COM1 Grounding PoE3 LAN2 PoE2 LAN1 PoE1 USB3.0 LAN Power (Red) PoE Power (Green) Antenna Hole Quick Installation Guide | EC300-CS...
  • Page 3 Rear View Mic-in Reset Button Power Button SIM Sockets 2.5” SSD Storage Driver Bay HDMI Antenna Hole DP++ USB2.0 Status LED (Orange) HDD LED (Red) Line-out Quick Installation Guide | EC300-CS...
  • Page 4: Removing The Chassis Cover

    1. Make sure the system and all other peripheral devices connected to it have been powered off. 2. Disconnect all power cords and cables. Turn over the machine to let the bottom side become the top. Step 1: Remove eight screws circled by red in each corner. Quick Installation Guide | EC300-CS...
  • Page 5 Remove the bottom case Step 2: The SSD part appears. Step 3: Quick Installation Guide | EC300-CS...
  • Page 6 There are two 2.5” HDD slots for harddisk/SSD installation. Step 4: If you want to change/remove/install other components, please remove the Step 5: first layer first. Remove the 4 screws in each corner circled by red. Quick Installation Guide | EC300-CS...
  • Page 7 Tilt up to remove the first layer carefully and slowly. Please unplug these Step 6: cables first. The main body appears. Step 7: Quick Installation Guide | EC300-CS...
  • Page 8: Installing An Antenna

    2. Disconnect all power cords and cables. Step 1: There are antenna holes reserved on every side of the system and covered by rubber plugs. Please remove the plug prior to installing an antenna. Quick Installation Guide | EC300-CS...
  • Page 9 The drive bay can be easily accessed without opening the system. Before inserting a HDD/SDD, please turn off the system first. Use the following procedure to install a SATA HDD or SSD to the system: Step 1: Locate the drive bay on the front. Quick Installation Guide | EC300-CS...
  • Page 10 Slide the drive into the slot until the drive is fully seated. Close the drive latch to lock the drive in place. Important: Excessive force may damage its mechanical parts. If the HDD/SSD is inserted backward into the slot, forcing the device may damage the slot. Quick Installation Guide | EC300-CS...
  • Page 11: Installing The M.2 Module

    POE BTB Sim1 LAN2 Sim2 MPJP3 MPJP2 M2JP1 LAN1 Sim3 JP24 M2CN2 USB2_3/4 M.2-B MPCN5 MPCN3 USB3_3/4 Mini PCIe1 Mini PCIe2 SATA1(R3) USB2_1/2 CN38 USB3_1/2 12V_DC2 SATA0(R2) SMBus Reset Button Header CN37 Power SYS_FAN Button 12V_DC1 Quick Installation Guide | EC300-CS...
  • Page 12 Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. Quick Installation Guide | EC300-CS...
  • Page 13: Installing The So-Dimm Module

    POE BTB Sim1 LAN2 Sim2 MPJP3 MPJP2 M2JP1 LAN1 Sim3 JP24 M2CN2 USB2_3/4 M.2-B MPCN3 MPCN5 USB3_3/4 Mini PCIe1 Mini PCIe2 SATA1(R3) USB2_1/2 CN38 USB3_1/2 12V_DC2 SATA0(R2) SMBus Reset Button Header CN37 Power Button SYS_FAN 12V_DC1 Quick Installation Guide | EC300-CS...
  • Page 14 Inspect that the clip sits in the notch. If not, please pull the clips outward, release and remove the card, and mount it again. Quick Installation Guide | EC300-CS...
  • Page 15: Mounting Options

    Locate the mounting holes on the bottom of the system as shown in the photo. Screw on the two brackets onto the system with six screws as illustrated below. Wall Mount Bracket Wall Mount Bracket Quick Installation Guide | EC300-CS...
  • Page 16 DFI reserves the right to change the specifications at any time prior to the product's release. This QR may be based on the product’s revision. For more documentation and drivers, please visit the download page at www.dfi.com/ downloadcenter, or via the QR codes to the right.
