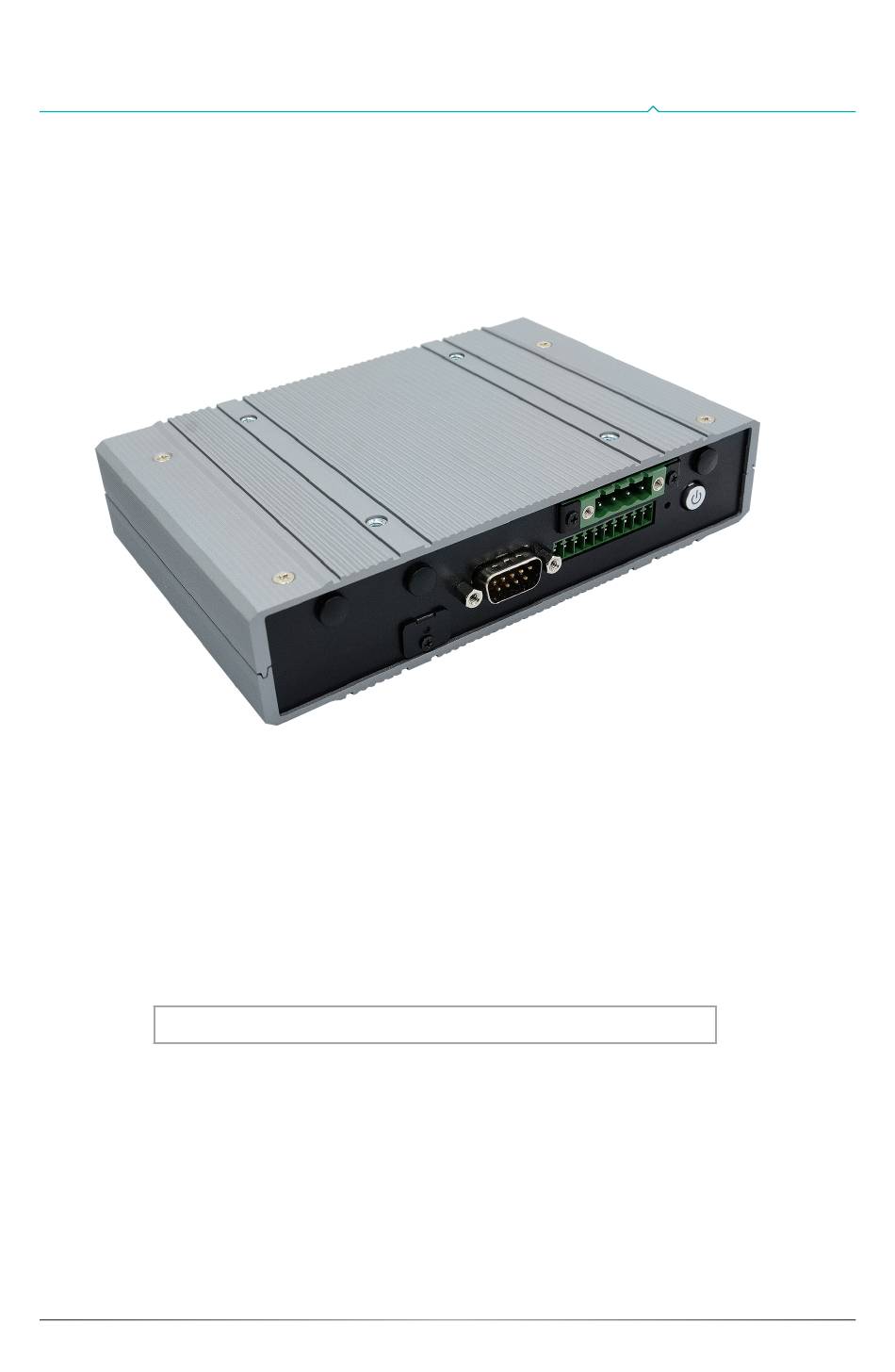

Product Overview Front View Antenna Hole (5G) CAN Bus uSD3.0 Slot COM 1 8-bit DIO Terminal Block Switch 1 Power Button Quick Installation Guide | EC800-QRB...
Page 3
DC Jack (12V) Antenna Hole (WIFI) USB 3.1 Gen1 Default Disable (Opt. with LAN) HDMI 1.4 USB 3.1 OTG (Type C) LAN 1 USB 2.0 Audio Jack (Line-out/Mic-in) *This function will be available on the next version. Quick Installation Guide | EC800-QRB...
3. Locate the M.2 socket on the system board 4. Make sure the notch on card is aligned to the key on the socket. 5. Make sure the standoff screw is removed from the standoff. M.2 Module M.2 Socket Stand-off Notch Quick Installation Guide | EC800-QRB...
Page 5
Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. Quick Installation Guide | EC800-QRB...
Connect the internal cable to the board's antenna connector, screw the antenna connector through the antenna hole with washers and nuts, and screw on the antenna as illustrated below. Antenna Chassis Wall Module Connector Cable Antenna Connector Washer Quick Installation Guide | EC800-QRB...
PIN Assignment X DIO Assignment Assignment DIO0 DIO1 DIO2 DIO3 DIO4 DIO5 DIO6 DIO7 +3.3V Quick Installation Guide | EC800-QRB...
Page 8
X COM 1 Assignment Assignment Quick Installation Guide | EC800-QRB...
Page 9
X CAN Bus Connector Assignment CAN1H CAN1L Quick Installation Guide | EC800-QRB...
Page 10
1. Access Switch 1 hole to enter into download mode. Download 2. Refer to Image_flash_guide. DFI reserves the right to change the specifications at any time prior to the product's release. This QR may be based on the product’s revision. For more documentation and drivers, please visit the download page at www.dfi.com/...
