DFI EC510-KH Installation Manual

Hide thumbs Also See for EC510-KH:

Advertisement

Quick Links

Download this manual

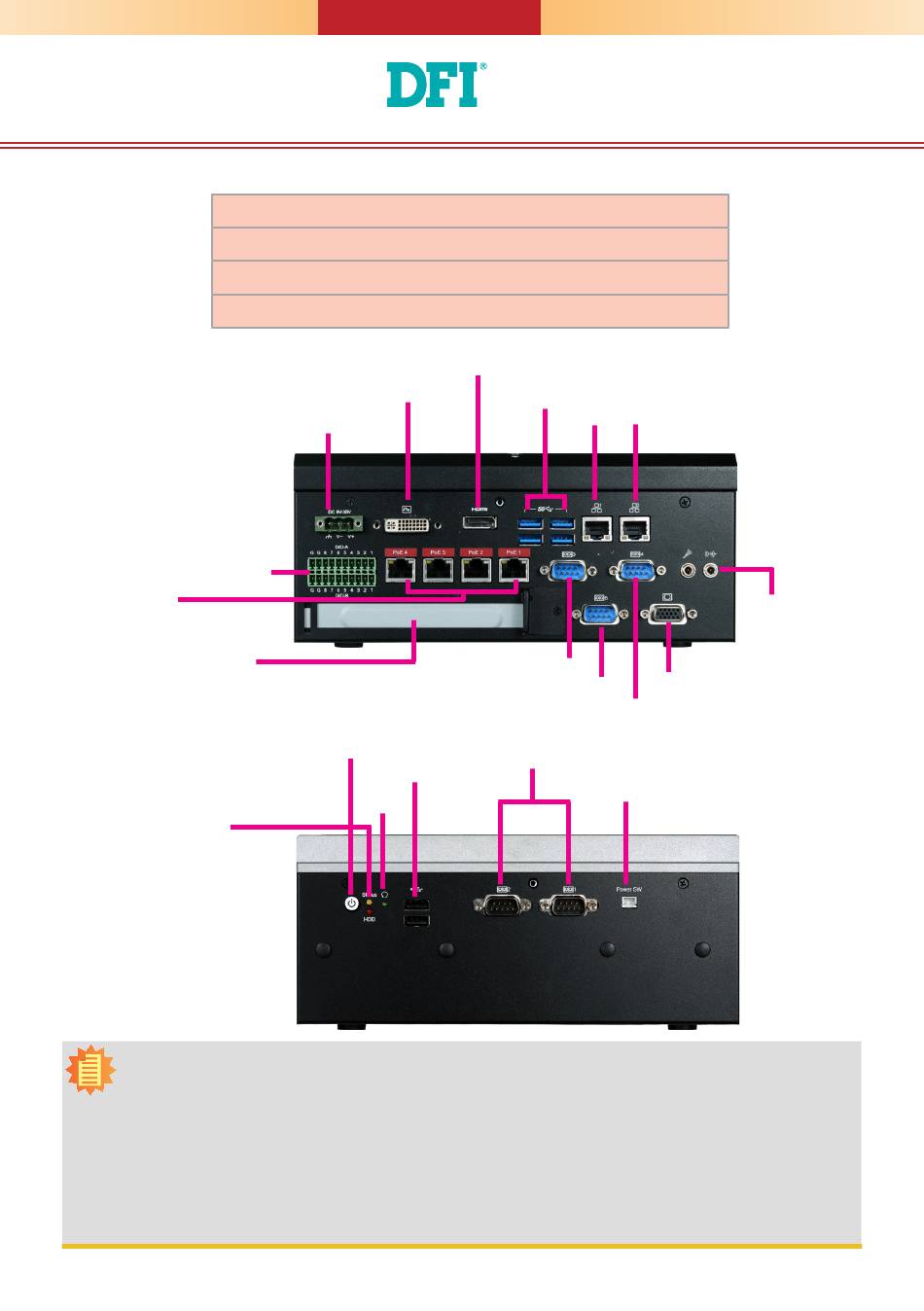

EC510/511-KH Installation Guide
• EC510/511-KH system unit
• Quick Installation Guide
• CD disk includes:
Rear Panel
Digital IO
(1)
PoE 1~4
or
LAN 3~6
Expansion slot
Status LED
HDD LED
Front Panel
Notes:
1.
The PoE ports support PoE devices that comply with 802.3af and each port delivers 15.4W of
power to connected devices. The system may be equipped with 4 Gigabit Ethernet ports without
PoE depending on the SKU; please refer to the Ordering Information for details.
2.
This port can be in HDMI or DVI-D (HDMI available upon request).
3.
This port is a DP/HDMI combo port but can only transmit either HDMI or DP signals (as indicated on
the panel). Please plug in a DP or an HDMI cable with the right orientation and alignment to avoid
damage to the connector. You should feel resistance (due to a pin on the right) if the cable is not
inserted correctly. For detailed instructions, see https://youtu.be/SUj07rfN5l8.
DFI reserves the right to change the specifications at any time prior to the product's release. For the latest revision and details of the
installation process, please refer to the user's manual.
Package Contents
- Drivers / Manual
(2)
DVI-I
(DVI-D signal)
DC-in
Power Button
USB 2.0
Reset Switch
(3)
HDMI
USB 3.0
LAN 1 LAN 2
COM 3
COM 5
COM 2 COM 1
Remote Power Switch
1
Mic-in, Line-out
VGA
COM 4
www.dfi.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the EC510-KH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DFI EC510-KH

Summary of Contents for DFI EC510-KH

  • Page 1 You should feel resistance (due to a pin on the right) if the cable is not inserted correctly. For detailed instructions, see https://youtu.be/SUj07rfN5l8. DFI reserves the right to change the specifications at any time prior to the product's release. For the latest revision and details of the www.dfi.com...

  • Page 2: Removing The Chassis Cover

    Removing the Chassis Cover Please observe the following guidelines and follow the procedure to open the system. 1. Make sure the system and all other peripheral devices connected to it have been powered off. 2. Disconnect all power cords and cables. 3.
  • Page 3 Installing a 2.5" SATA Drive The system can accommodate two SATA drives. Please use the following procedure to install a SATA drive in the system. 1. The SATA HDD bracket is included in the product package. Locate the SATA drive bay on which the SATA HDD bracket will be mounted. SATA drive bay 2.
  • Page 4 3. Place the SATA drive with the HDD bracket into the system. Align the mounting holes on the HDD bracket with the mounting holes on the SATA drive bay and use the provided screws to secure the drive in place. Mounting Screw 4.

  • Page 5: Installing A Sodimm

    Installing a SODIMM Grasp the module by its edges and align the SODIMM’s notch with the socket’s key; then insert the SODIMM into the socket at an angle and push it down until the retaining clips snap into place. DIMM1 DIMM2 The installed SODIMM To remove a SODIMM, gently spread the retaining clips at each end of the...
  • Page 6 Installing a Mini PCIe Expansion Card The Mini PCIe sockets are located on the mainboard. You need to revmove the daughter board and the front bezel to access them. The 4 mounting screws on the daughter board are used to secure the board to the mainboard.
  • Page 7 The system board is equipped with 2 Mini PCIe slots with Mini SIM card sockets to support a variety of wireless LAN and mobile broadband communication modules. Mini PCIe slot 1 provides both USB and PCIe interfaces whereas Mini PCIe slot 2 provides only USB interface.
  • Page 8 Installing a SIM Card Open the SIM card socket by pushing the white latch inward. SIM 2 Push the latch inward to open it Insert the SIM card into the slot. Please place the card with the IC facing down and the angled corner aligning with the socket's angled corner so it will be cor- rectly in contact with the system board.

  • Page 9: Installing An M.2 Card

    Installing an M.2 Card The onboard M.2 Type 2280 connector (M Key) supports PCIe NVMe modules up to PCIe Gen 3.0 x4 bandwidth. Note that only SKUs with Intel QM175 ® Chipset support M.2 socket. To install an M.2 card, insert the bottom edge of the M.2 card into the connector, and then secure the card to the standoff with the provided mounting screw.
  • Page 10 Installing a PCI or PCIe Expansion Card Important: When inserting expansion cards into the system, please select a standard card within 167.65mm (as shown in the picture below) in order to fit into the expansion slot. The PCI and PCIe slots on the riser card inside the system are used to install expansion cards.
  • Page 11 PCI card Rear View Note: The EC511-KH has one PCIe x16 slot with the H120-1E riser card, whereas the EC510-KH has one PCI slot with the H320-1P riser card.

  • Page 12: Board Layout And Jumper Settings

    JP16. 5V_Standby 2-3 On 3. When COM3 RS232/422/485 is selected, JP12 and JP18 must be set in accordance to JP13. 4. When COM4 RS232/422/485 is selected, JP6 and JP19 must be set in accordance to JP5. www.dfi.com...
