Operation - General Pipe Cleaners Speedrooter 91 Operating Instructions Manual

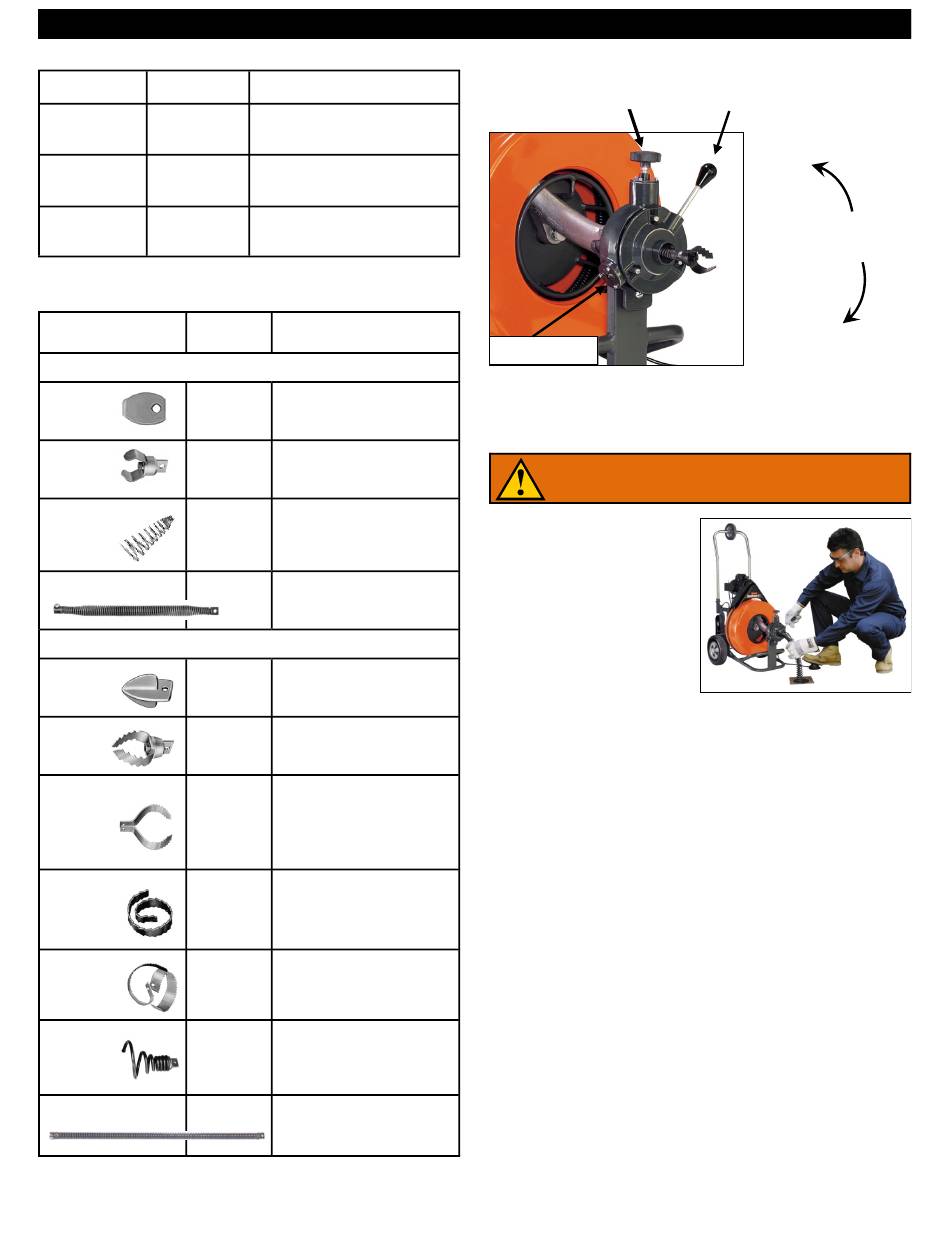

Cable Application Chart (Table 1)
Cable Size Pipe Size
3/4"
4" to 10"
(Large Drum)
5/8"
3" to 6"
(Large Drum)
1/2"
2" to 4"
(Small Drum)
Cutter Application Chart (Table 2)
Cutter Cat. #
Cutters for 1/2" Cables
Arrow
AH
Head
1-1/2"
1-1/2UC
U-Cutter
Small
Retrieving RTR-1
Tool
13" Flexible Leader LE-1
Cutters for 5/8" and 3/4" Cables
Spear
SHD
Head
2"
2UC
U-Cutter
3" & 4"
3SCB
Side
Cutter
4SCB
Blades
3" Heavy
Duty Saw 3HDB
Blade
4" Rotary
4RSB
Saw Blade
Large
Retrieving RTR-2
Tool
26" Flexible Leader LE-3
Note: There are no fixed rules for what cutter to use. If
one tool doesn't take care of a stoppage, simply try
another.
Typical Applications
Large Drains, Long Runs,
Roots
Floor Drains, Roots
Stacks & Small Drains
(No Roots)
Typical Applications
Starting Tool, ideal for
cutting and scraping.
Finishing tool, works well
in grease stoppages.
To remove or retrieve
loose objects.
Tool for negotiating
around difficult bends.
Starting Drill—gets water
flowing.
For Cutting and Scraping
For Cutting—Scraping
&
walls of pipe.
For Cutting Roots
For Cutting Roots
For removing loose ob-
jects or broken cables.
Helps cable get through
tight traps and bends.
POWER CABLE FEED
Feed Pressure Knob
Raised Cap

OPERATION

SET-UP
MAKE SURE THE MOTOR SWITCH IS IN
THE „OFF‟ POSITION!
1.
Place machine at a
distance not greater
than two feet from the
drain opening.
sure the Speedrooter
Guide Tube (S91-GT)
is in place. If you
can't get the machine
this close to the drain
opening, run the cable
through the optional Guide Tube Extension (GTE) or
a metal guide tube to prevent cable whipping.
2.
Position the air foot pedal for easy accessibility. The
machine is designed for one-person operation. Be
sure you can quickly remove your foot from the pedal
in an emergency.
3. Lock the wheels by lifting the brake handle located
next to the left wheel and pressing it into the clip.
4. Be sure the motor switch is in the off position.
5. Make sure the Power Cable Feed is set to match the
cable size you have selected. If you're using 3/4" or
5/8" cables, the feed should be assembled with the
raised side of the lower two caps outward. If you are
using 1/2" cables, the feed should be assembled with
the raised side of the caps inward.
6. Select the proper cutting tool (See Cutter Application
Chart—Table 2). A good tool to start with is the
Spearhead or 2" U-Cutter. If you are having difficulty
getting around a P-Trap or close bend, try the flexible
leader. After the line has been opened, follow with
larger blades, which scrape the inside edges of the
pipe, assuring a real cleaning job.
7. Insert the cutter into the female connector at the end
of the cable and tighten the connecting screw and
lock washer firmly in place.
5
Speedrooter 91™
Feed Control Lever
Reverse
Neutral
Forward
Be
