Folding Mechanism - Maxxus RunMaxx 7.4 Installation And Operating Manual

Hydraulic Cylinder
The folding mechanism relies on a hydraulic cylinder. This is filled with oil and is under high pressure. If the
cylinder is damaged, the safe folding of the treadmill deck is no longer guaranteed. It must therefore be replaced
without fail before the treadmill deck is raised again.
Hydraulic Cylinder
Figure similar to the treadmill

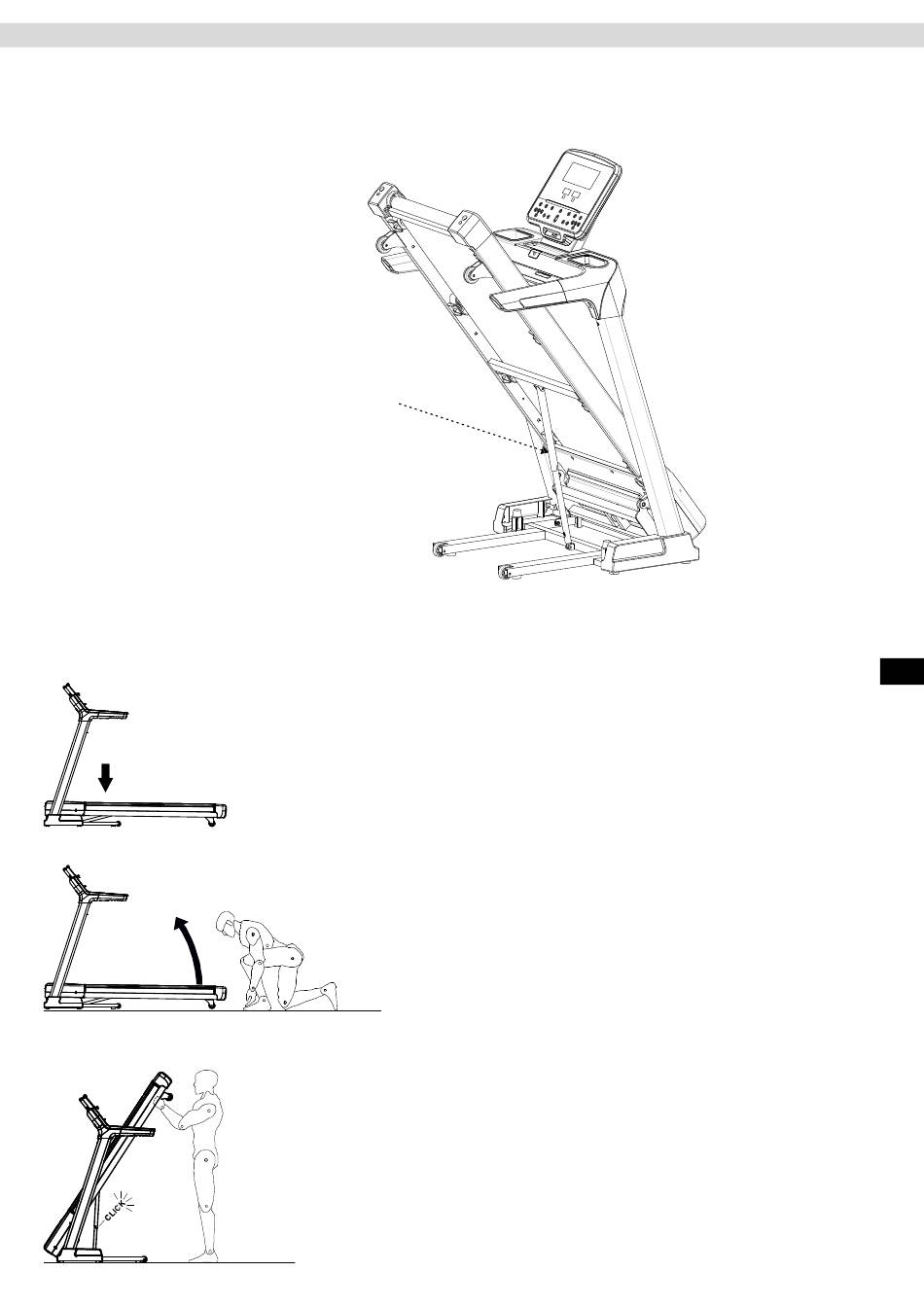

This treadmill is equipped with a folding mechanism. To save space, fold the treadmill deck up and down as
follows:
Folding up the Treadmill Deck
Step 1:
Make sure that the deck incline level is at "0", switch the treadmill off at the
main switch and remove the mains plug from the socket.
CAUTION:
Never fold up the treadmill deck without the incline in "0" position or without
switching it off.
Step 2:
Hold onto the rear end of the treadmill deck and lift it upwards.
Make sure that you are standing with your feet firmly on the ground.
Step 3:
Push up the deck until you hear it click into the catch.
Check that it is locked safely in the upright position by gently shaking the
deck.
