1.Prerequisites

Hardware: CHC i80 Base with internal radio
Kit, Controller Kit,UHF Bar Antenna (450-470
MHz), Lithium Battery,Extension pole,
Tribrach with optical plummet, Auxiliary H.I.
Tool, H.I. Tape,Tribrach adaptor,tripod
Software: SurvCE version beyond 4.90.26
2.Steps to set i80 working as base
in internal UHF mode with SurvCE

2.1 Base installation

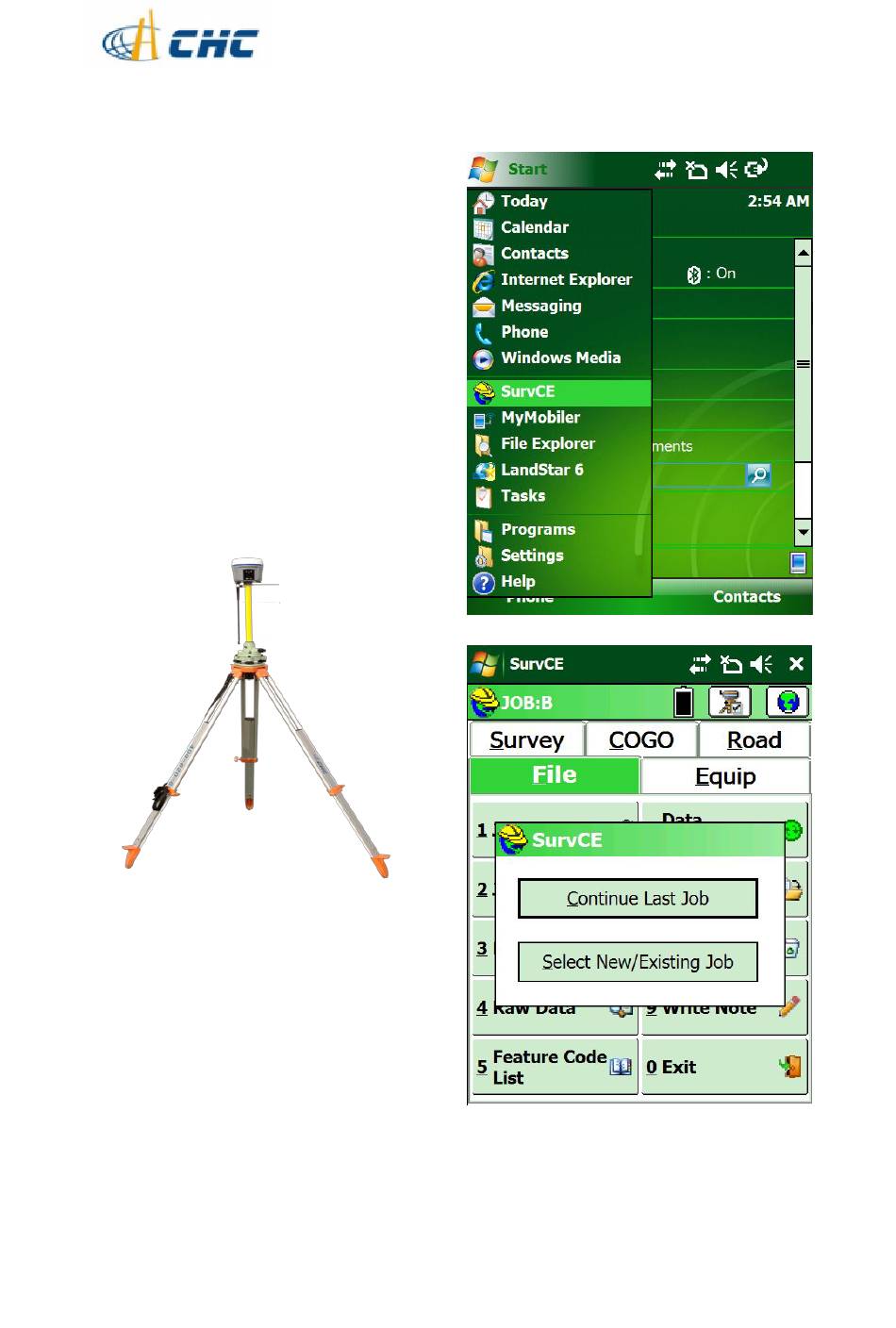

Set up base on known point or unknown
point as shown in follow figure and screw bar
antenna on base receiver.
Note: If the PN on the back of base receiver
is end with "2231", it means this receiver has
internal CHC radio inside and it can only be
used with CHC protocol. If the PN on the
back of base receiver is end with "1121", it
means this receiver has internal Satel radio
inside and it can only be used with Satel
protocols.

2.2 Base setting in SurvCE

1. Power on the receiver
Long press the i80 power button until the
i80 GNSS Receiver Quick Tour with SurvCE (Internal UHF Base)
green and blue LED lights are on.
2. Click on [start] and then SurvCE
3. Click [Select New/Existing job]
4. Enter a job name and select a projection
