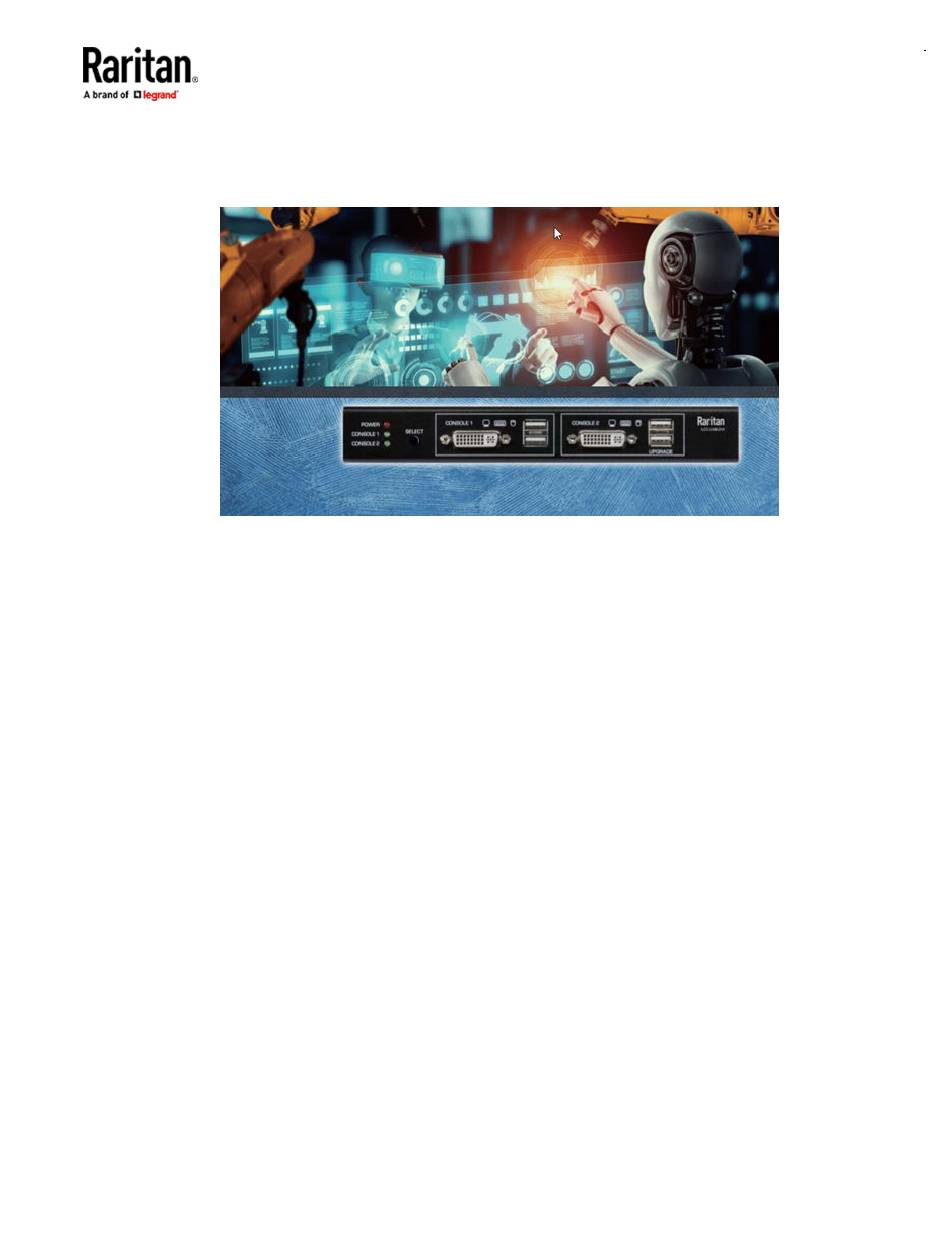

OSD Operation Manual
Introduction
LCC-USB-DVI is a Local Console Controller that controls one PC with two KVM consoles the local-site console (Console 1,
C1) and the remote-site console (Console 2, C2). It features up to 10 User-preset On-Screen Display (OSD) Image Banks.
Users can upload their own OSD images from a USB Flash drive at the local-site console using either of the two USB ports
for the keyboard and mouse. The priority of the local- site console port is higher than that of the remote-site console port.
Operation Modes:
The LCC-USB-DVI unit has three Operation Modes
1. C1/C2 Sharing Mode: Both local-site and remote-site console users have access to the connected PC.
a.
a. When the local user presses the local-site panel SELECT button, the operation mode toggles between C1/C2 Sharing
Mode and C1 Maintaining Mode.
b. When the remote user enters the hotkey sequence <ScrLk>, <ScrLk>, <M>, <0>, the operation mode transitions
b.
from C1/C2 Sharing Mode to C2 Operating Mode. Use the hotkey sequence <ScrLk>, <ScrLk>, <M>, <1> to return to
C1/C2 Sharing Mode.
2. C1 Maintaining Mode: Since the unit is designed to give the local-site console higher priority than the remote-site
console, the first panel button press will revert the ongoing C2 Operating Mode to C1/C2 Sharing Mode. The second
panel button press will switch the unit to C1 Maintaining Mode and disable the K/M access of the remote-site console.
This mode is used when a local-site technician is performing urgent equipment maintenance.
3. C2 Operating Mode: In this mode, the user-selected OSD image is displayed on the top of console 1's monitor, and the
keyboard and mouse operations of the console 1 are disabled.
FIG. 1:
Shows two consoles (Local-site and Remote-site consoles) controlling the connected PC. The remote-site console is
connected to a set of keyboard, mouse, and monitor, just like the local-site console.
LCC-USB-DVI OSD Operation Guide
LCC-USB-DVI-OSD_v1.0.0_A1
page
1
