Connecting Environmental Sensors (Optional)
An SRC provides the SENSOR port for connecting Raritan DX
or DX2 environmental sensor packages so that you can
remotely monitor environmental factors, such as temperature
and humidity, around the rack.

For sensor connection instructions, refer to the SRC User
Guide or Online Help.

For detailed information on each sensor package, refer to
the Environmental Sensors and Actuators Guide (or Online
Help) on Raritan website's
http://www.raritan.com/support/
(

If you need a Raritan sensor hub for connecting DX or DX2,
only DPX3-ENVHUB4 is supported by SRC.
QS Rule

FEATURE 2: Cabinet Access Control

Raritan's door handles or SmartLock kits are required for
SRC to control the access to a cabinet.
Depending on your SRC model, you may have to purchase
either only door handles or a full SmartLock kit from Raritan.
Raritan's SmartLock kit contains one DX2-DH2C2 and a pair
of door handles.
Note: For details, refer to the user documentation
accompanying the SmartLock kit or download it from
Support page http://www.raritan.com/support/
Raritan's (
To detect the cabinet's door status, you need to connect
third-party contact closure detectors, which are optional.
Important: It is not guaranteed that all third-party
detectors/switches are compatible with the SRC. You need
to test the compatibility after installing them.
Limitations
Read the restrictions below before connecting door handles
or a SmartLock kit (that is, DX2-DH2C2 kit) to SRC.

(IMPORTANT) NO asset management strips can be
connected simultaneously.

Up to one DX2-DH2C2 can be connected per SENSOR port
of SRC.

SRC-0100 supports a maximum of 2 door handles by
connecting one DX2-DH2C2.

SRC-0102 has two onboard door handle ports so it
supports a maximum of 4 door handles. You can
connect two door handles to onboard door handle
ports and connect one DX2-DH2C2 to its SENSOR port.

Only the door handles sold with DX2-DH2C2 are
supported.

No hot plugging or hot swapping with door handles when
they are directly or indirectly connected to a
SRC Quick Setup Guide
SRC_QSG_0A_3.5.10_E  255-80-0063-00 RoHS
Support page
).
powered SRC.

That is, no connection or disconnection of door handles
when they are powered.


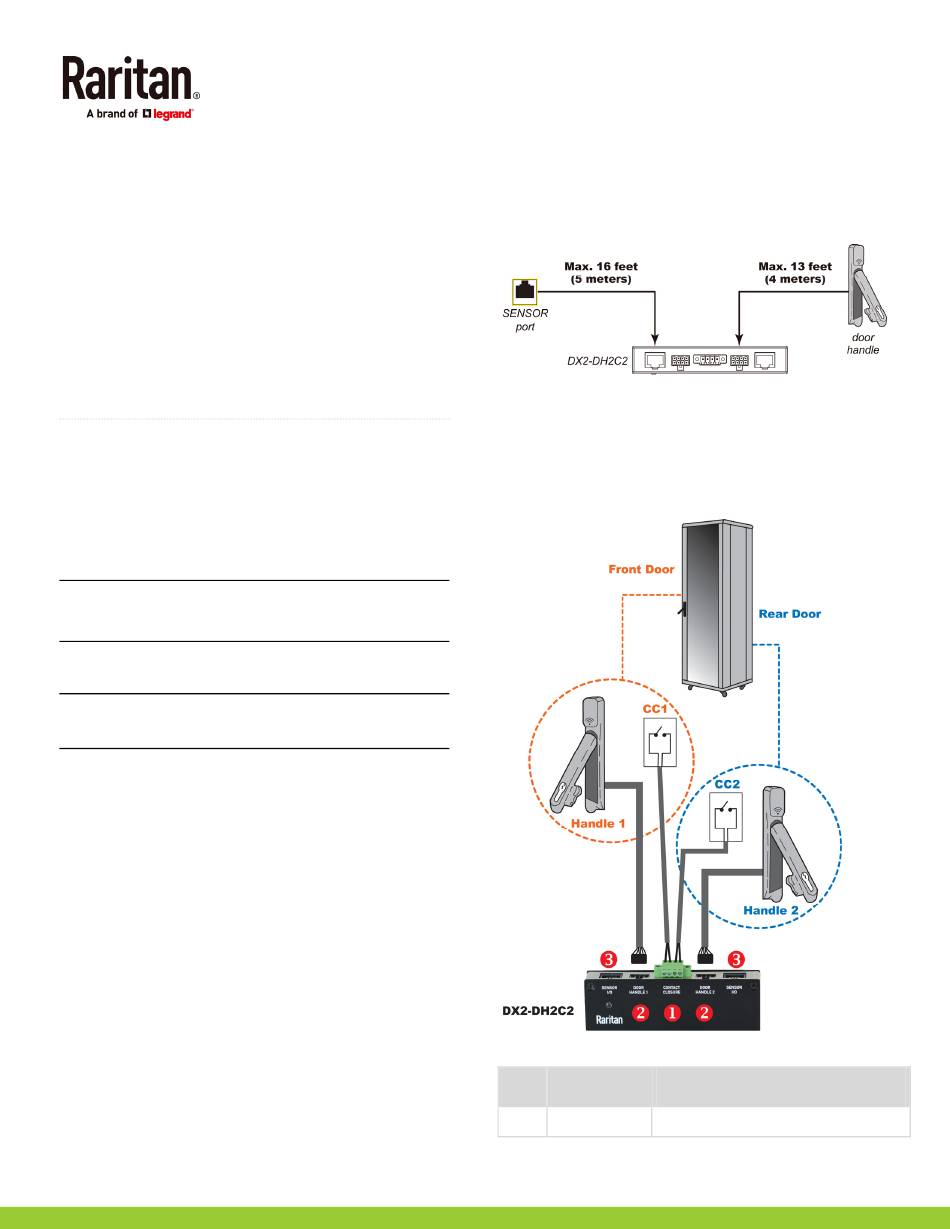

The maximum cabling length for door handles or
SmartLock kit is 29 feet (9 meters). For details, refer to
the following diagram.
Connecting a SmartLock Kit to DX2-DH2C2
You need a SmartLock kit if your SRC does NOT include a
built-in DX2-DH2C2, such as SRC-0100.
 DX2-DH2C2 ports and terminals:
).
No. Component

Two pairs of
Function
Connect to third-party contact closure
