No. Component Function
contact detectors/switches for detecting the
closure sensor door open/closed status.
terminals
Contact closure detectors are
OPTIONAL.

Two door Connect to the standard category cable
handle ports of the door handle.
The two door handles are usually
attached to different doors of the same
cabinet.

Two RJ-45 Connect a standard network patch
ports cable for either or both purposes below:

Connect to the SENSOR port
(yellow) of the SRC.

Cascade DX2 sensor package(s).
Exception: You CANNOT cascade
DX2-DH2C2 packages.
 Connection procedure:
1. Connect supported door handles to DX2-DH2C2.
2. (Optional) Connect contact closure detectors/switches for
detecting door status to DX2-DH2C2. For connection
details, refer to the Environmental Sensors and Actuators
Guide (or online help) on the
http://www.raritan.com/support/
(
3. Connect DX2-DH2C2 to the SENSOR port of SRC.
Connecting Raritan's Door Handles to SRC
You only need to purchase door handles if your SRC has a
built-in DX2-DH2C2, such as SRC-0102.
SRC Quick Setup Guide
SRC_QSG_0A_3.5.10_E  255-80-0063-00 RoHS
Support page
).

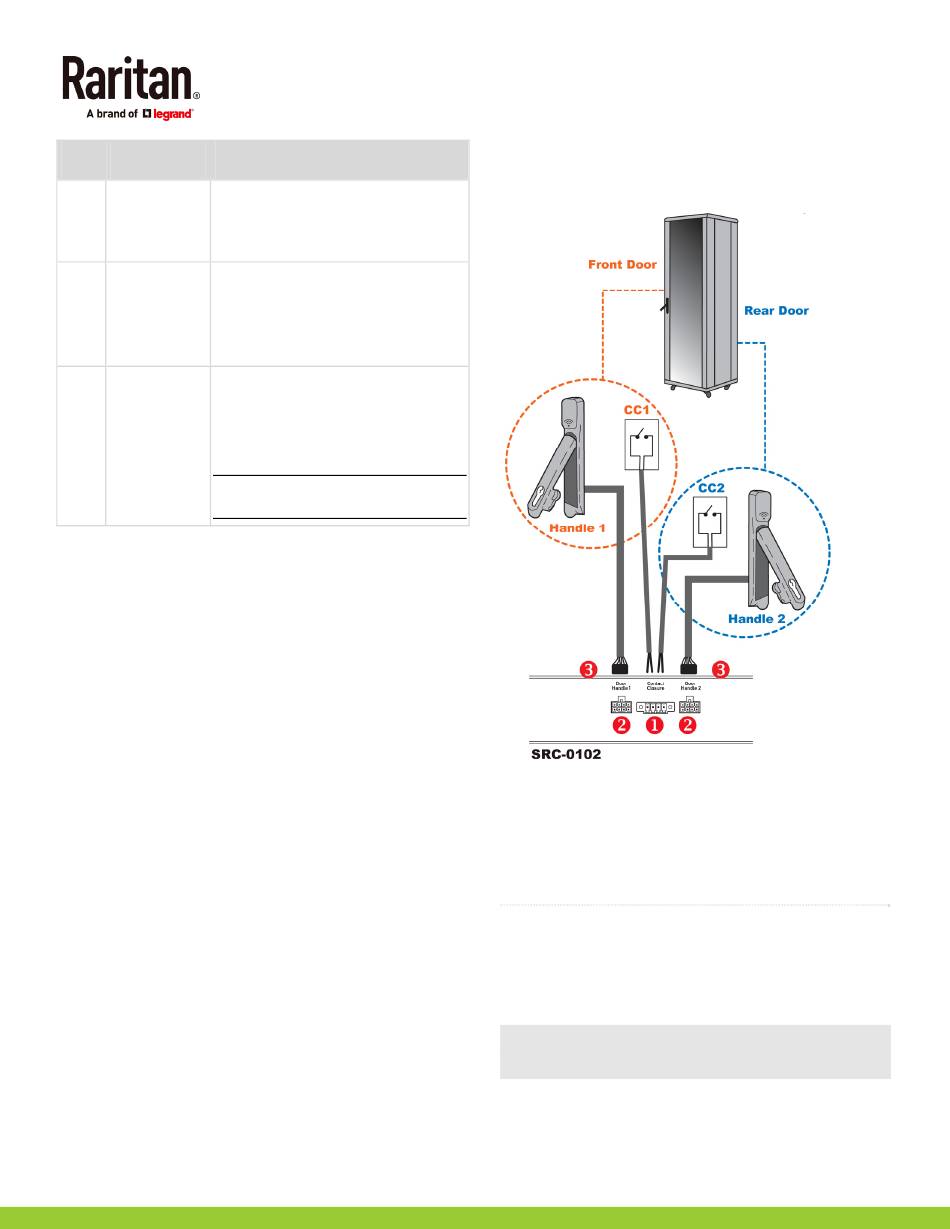

 SRC door handle ports and terminals:
Numbers in the following diagram (
the numbers in the previous section's table.
 Connection procedure:
1. Connect Raritan door handles to onboard door handle
ports of SRC.
2. (Optional) Connect contact closure detectors/switches for
detecting door status to contact closure terminals of SRC.
QS Rule

FEATURE 3: Asset Management

Both asset management strips and asset tags are required for
SRC's asset management feature.
For documentation purpose, asset management strips are
called asset strips in the following sections.
Limitation: Do NOT connect door handles (or SmartLock
kit) to SRC while asset strips are being connected to SRC.
 
and ) correspond to
