Overvoltage protection
OVP
3.1
8110305 BA / EN

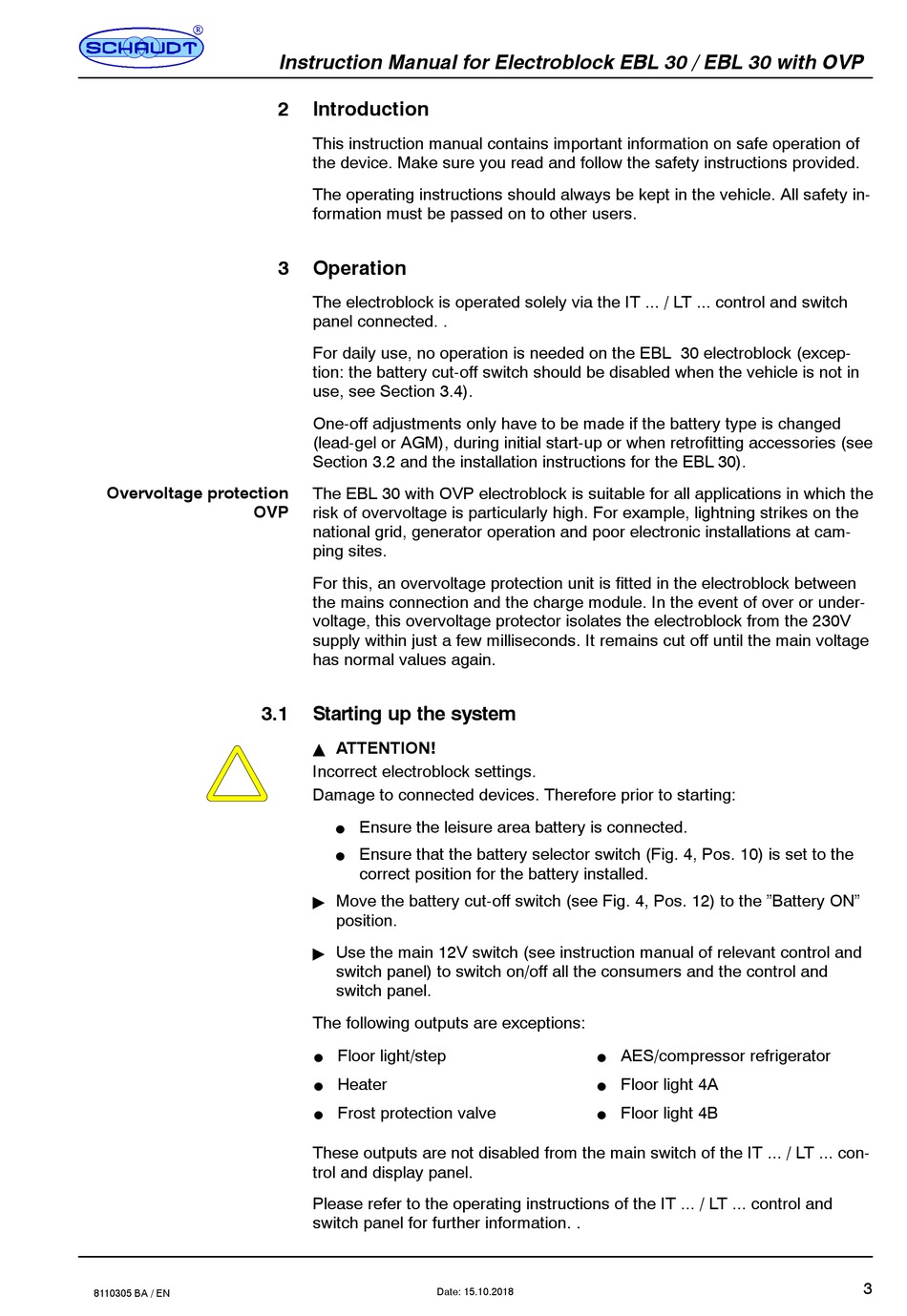

Instruction Manual for Electroblock EBL 30 / EBL 30 with OVP
2

Introduction

This instruction manual contains important information on safe operation of
the device. Make sure you read and follow the safety instructions provided.
The operating instructions should always be kept in the vehicle. All safety in-
formation must be passed on to other users.
3

Operation

The electroblock is operated solely via the IT ... / LT ... control and switch
panel connected. .
For daily use, no operation is needed on the EBL 30 electroblock (excep-
tion: the battery cut-off switch should be disabled when the vehicle is not in
use, see Section 3.4).
One-off adjustments only have to be made if the battery type is changed
(lead-gel or AGM), during initial start-up or when retrofitting accessories (see
Section 3.2 and the installation instructions for the EBL 30).
The EBL 30 with OVP electroblock is suitable for all applications in which the
risk of overvoltage is particularly high. For example, lightning strikes on the
national grid, generator operation and poor electronic installations at cam-
ping sites.
For this, an overvoltage protection unit is fitted in the electroblock between
the mains connection and the charge module. In the event of over or under-
voltage, this overvoltage protector isolates the electroblock from the 230V
supply within just a few milliseconds. It remains cut off until the main voltage
has normal values again.

Starting up the system

ATTENTION!
Y
Incorrect electroblock settings.
Damage to connected devices. Therefore prior to starting:
Ensure the leisure area battery is connected.
F
Ensure that the battery selector switch (Fig. 4, Pos. 10) is set to the
F
correct position for the battery installed.
Move the battery cut-off switch (see Fig. 4, Pos. 12) to the "Battery ON"
"
position.
Use the main 12V switch (see instruction manual of relevant control and
"
switch panel) to switch on/off all the consumers and the control and
switch panel.
The following outputs are exceptions:
Floor light/step
F
Heater
F
Frost protection valve
F
These outputs are not disabled from the main switch of the IT ... / LT ... con-
trol and display panel.
Please refer to the operating instructions of the IT ... / LT ... control and
switch panel for further information. .
Date: 15.10.2018
AES/compressor refrigerator
F
Floor light 4A
F
Floor light 4B
F
3
