Schaudt EBL 263-5 Operating Instructions Manual

Operating Instruction Manual
Elektroblock EBL 263-5 Art no 911.056
Contents
1. Description
2. Safety Information
3. Operating Instructions
4. Transport, Storage, Installation
5. Electrical Installation
6. Power-Up, Shut-Down, Maintenance
7. Malfunction
8. Enclosure
1. Description

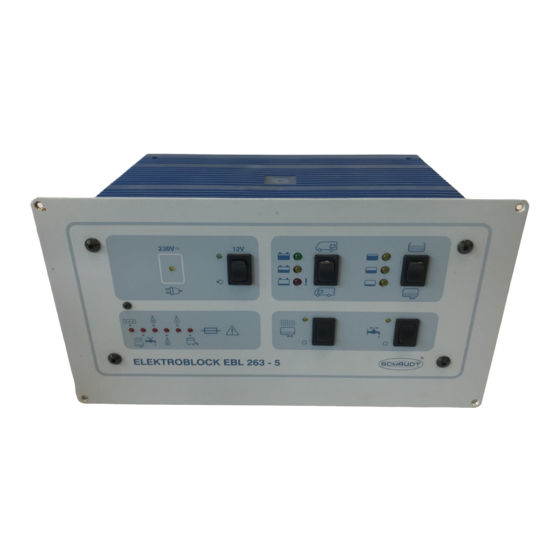

The Elektroblock EBL 263-5 is an energy management system for motor homes. It is a combination of
a battery charger, a 12V distribution box and a control and switch panel.
It contains the charging module LA 204, a battery monitor, the complete 12V distribution, fuse-protected
12V circuits and additional control and monitoring devices.
The controls and switches on the front panel, control the living-area functions of the motor home and
indicate certain values like voltages or filling levels.
Tank sensors are necessary to measure the filling levels of the water tanks. Please do order separately.
Note: The EBL 263-5 is not suitable for filling level measurement of metal water tanks.
1.1 Suitable Accessories
rod tank sensors
or tank sensors
1.2 Technical Data
1.2.1 General Data
sizes
weight
cabinet
front panel
1.2.2 Electrical Data
mains supply
current draw
suitable batteries
quiescent current
off living-area battery
load current of alternator's
D+ output by EBL
permissible load on
12V outputs
Note: this operating instruction manual is intended for the customer and has to be supplied with the device
Schaudt GmbH, Elektrotechnik & Apparatebau, Daimlerstraße 5, D-88677 Markdorf, Tel +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt-gmbh.de 18.05.2004
2 rod tank sensors, 2 sensor cables 4 x 0.5
2 seal rings art no 126.007, 2 check nuts art no 102.106
8 tank sensors, art no 933.662, 2 sensor cables 4 x 0.5
front panel: 290 x 155
cabinet: 275 x 130 x 173 (W x H x D in mm)
4.4 kg
PA (Polyamide), Gentian blue RAL 5010
aluminium, powder painted, white aluminium RAL 9006
* 230V (+ 6 / - 10%), 50Hz, safety class 1
* 230VA
* 6 cell lead-acid or lead-gel batteries, from 35Ah
* max 0.6mA
* approx 0.3A
* maximum current draw up to the fuse rating of each output;
see enclosed block diagram.
/
page 1 10
