Instruction Manual
SDTBUS 630
Electroblock EBL 630 B
Bus modules XM 630 B/631 B/632 B
Table of contents
1
1.1
1.2
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
3.2
4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1
4.2
4.3
5
6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
7.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3
8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
with
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
2
3
5
5
6
9
. . . . . .
9
10
11
12
12
14
14
14
15
15
Date:14.12.2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schaudt SDTBUS 630
Summary of Contents for Schaudt SDTBUS 630
-
Page 1: Table Of Contents
......... . . E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 8110605 BA / EN Date:14.12.2018... -
Page 2: Safety Information
Operating instructions Bus System SDTBUS 630 mit EBL 630 B Safety information Meaning of safety symbols DANGER! Failure to comply with this sign may result in danger to life or physical condition. WARNING! Failure to comply with this sign may result in injury. -
Page 3: Purpose
”main 12V supply” for the bus modules connections for the batteries an internal bus module for the SDTBUS 630 to be able to transfer readings to the The individual bus modules are used for the complete 12V distribution system and for fusing the 12V circuits. - Page 4 Operating instructions Bus System SDTBUS 630 mit EBL 630 B System A bus-compatible IT ... or DT ... control and display panel must be connected to the EBL devices 630 B for operation. Bus modules are also required. Together these devices control the electrical functions in the vehicle’s leisure area, including accessories.
-
Page 5: Layout

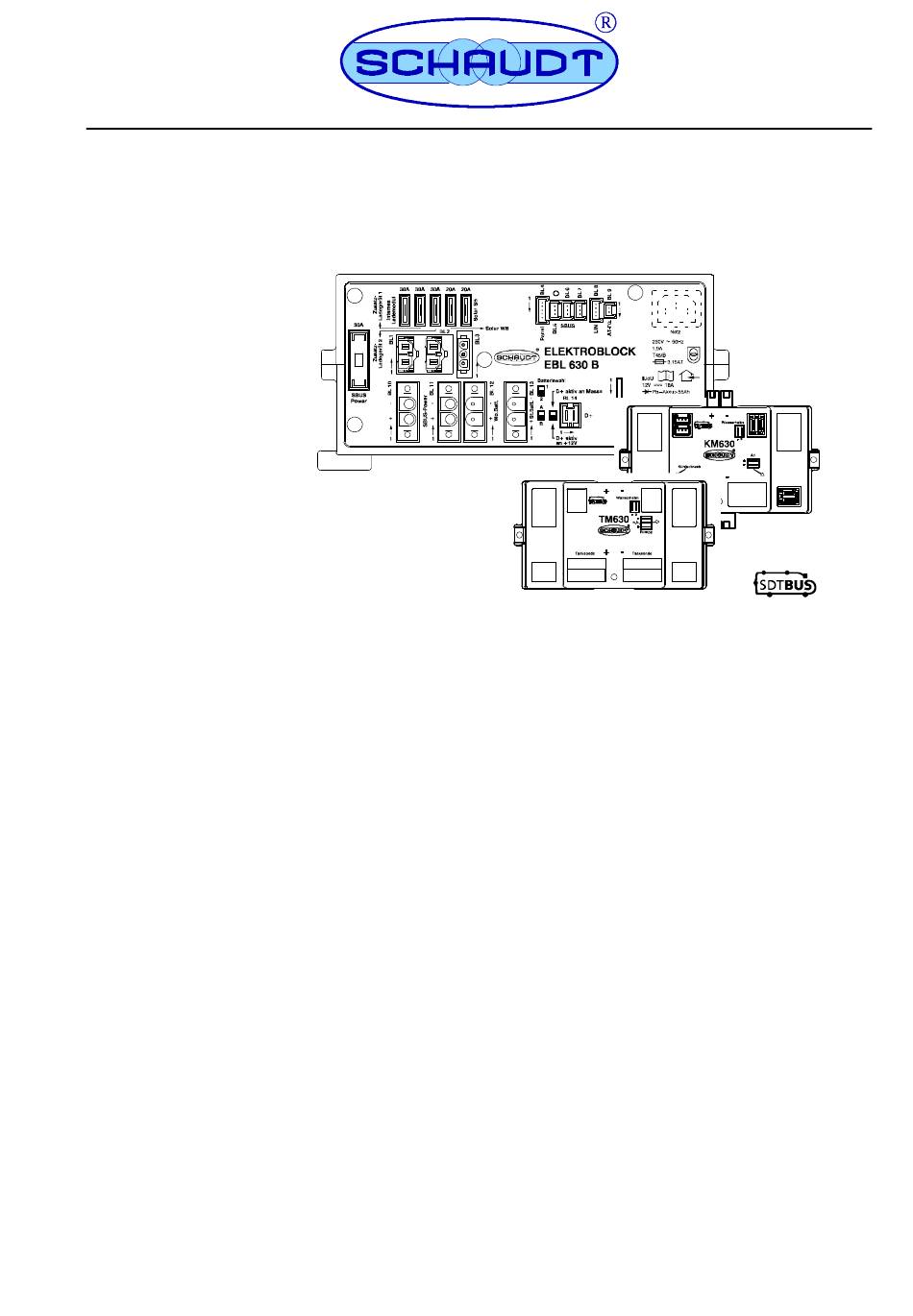

Operating instructions Bus System SDTBUS 630 mit EBL 630 B Layout Electroblock EBL 630 B Fig. 2 Layout of the EBL 630 B electroblock (front) Installation feet 12 Block 2: Auxiliary charger 2 D+ connector (input/output) 13 Block 3: Solar regulator... -
Page 6: Bus Modules In The 630 Family

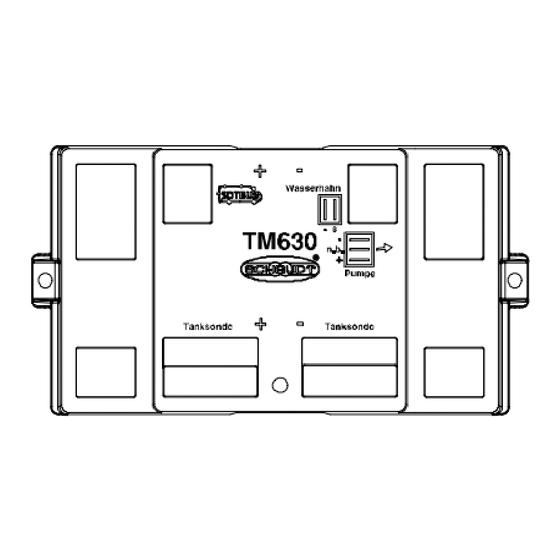

All bus modules are designed for a 12V power supply. If nothing else is specified, the ma- ximum output currents of the individual outputs on the modules is 90% of the value of relevant polyswitch fuse. The following bus modules can be used in the SDTBUS 630 bus system (see also Fig. 1): Name... - Page 7 Operating instructions Bus System SDTBUS 630 mit EBL 630 B 3.2.2 Tank module TM 630 B Fig. 5 Layout of TM 630 B tank module Tank probe 1 Diagnostics LED Main 12V supply (input) Tank probe 2 Water pump output...
- Page 8 Operating instructions Bus System SDTBUS 630 mit EBL 630 B 3.2.4 Heater module HM 630 B Fig. 7 Layout of the HM 630 B heater module Not used (nc) Diagnostics LED Main 12V supply (input) Heater supply Main 12V supply (output)
-
Page 9: Operation
One-off configuration is only required after the type of battery (lead-acid or lead-gel) has been changed, during commissioning or when upgrading with accessories (see section 4.3 and the installation instructions for the SDTBUS 630 bus system for details). Switching on and off the 12V supply for the leisure area The 12V supply for the leisure area is switched on and off from the IT ... -
Page 10: Shutting Down
Battery- Suitability must be checked using information from the battery supplier and the charging selection parameters of Schaudt equipment. The charging parameters of the EBL 630 B electro- block are specified in the operating and installation instructions. DANGER! Incorrectly setting the battery selector switch can cause a risk of explosion from a build- up of detonating gas (e.g. - Page 11 Operating instructions Bus System SDTBUS 630 mit EBL 630 B Fig. 10 Battery selector switch Isolate the electroblock from the mains Replace the battery. Battery- Move the battery selector switch (see Fig. 10) to the correct position using a thin ob-...
-
Page 12: Battery Charge Functions
Operating instructions Bus System SDTBUS 630 mit EBL 630 B Faults Flat vehicle A flat battery or defective fuse is the cause of most faults in the 12V system. fuses When it is not possible to rectify a fault based on the following table, please contact Schaudt customer service (for address, see Page 17). - Page 13 Operating instructions Bus System SDTBUS 630 mit EBL 630 B Fault Possible cause Remedy Solar charging does not work Solar charging does not work Solar charge regulator not Solar charge regulator not Plug in solar charge regulator Plug in solar charge regulator...
-
Page 14: Technical Details
Operating instructions Bus System SDTBUS 630 mit EBL 630 B Technical details EBL 630 B Weight Approx. 2 kg Casing PA (polyamide) Colour Gentian blue RAL 5010 Front Aluminium, powder coated, light grey (RAL 7035) Mains connection 230V , 10%, 47 to 63 Hz sinusoidal Max. -
Page 15: Charging Curve
Operating instructions Bus System SDTBUS 630 mit EBL 630 B Charging curve Charging curve IUoU End-of-charge voltage* Between 14.45V and 14.75V @ 22.5 C battery tempera- ture (and without temperature sensor) Charge current 18 A in the entire mains voltage range,... -
Page 16: Maintenance
Operating instructions Bus System SDTBUS 630 mit EBL 630 B Maintenance The devices of the SDTBUS 630 bus system require no maintenance. Cleaning Clean the electroblock with a soft, slightly damp cloth and mild detergent. Never use spi- rit, thinners or similar substances. Do not allow liquids to enter the electroblock. - Page 17 Send in Returning a faulty device: device If possible: Fill in the pre-registration in the relevant area on the ”www.schaudt- gmbh.de” website. Complete and enclose the fault report, see Appendix B. Send it to the addressee (free delivery).
- Page 18 Operating instructions Bus System SDTBUS 630 mit EBL 630 B Block diagram of EBL 630 B Minifit 2- -pin BL1 Auxiliary charger 1 Minifit 2- -pin BL2 Auxiliary charger 2 230 V mains, 50Hz WAGO connector Phönix BL12 Optional: Low power device socket...
- Page 19 Operating instructions Bus System SDTBUS 630 mit EBL 630 B Item number compatibility list First version to software version V1.01: Device LT 6.. EBL 630 AM 631 AM 632 KM 630 TM 630 PM 630 HM 630 931.378 Item 931.375 911.603...
- Page 20 Operating instructions Bus System SDTBUS 630 mit EBL 630 B (This page intentionalley left blank) Date:14.12.2018 8110605 BA / EN...
