Control Drain Valve 54.00.357

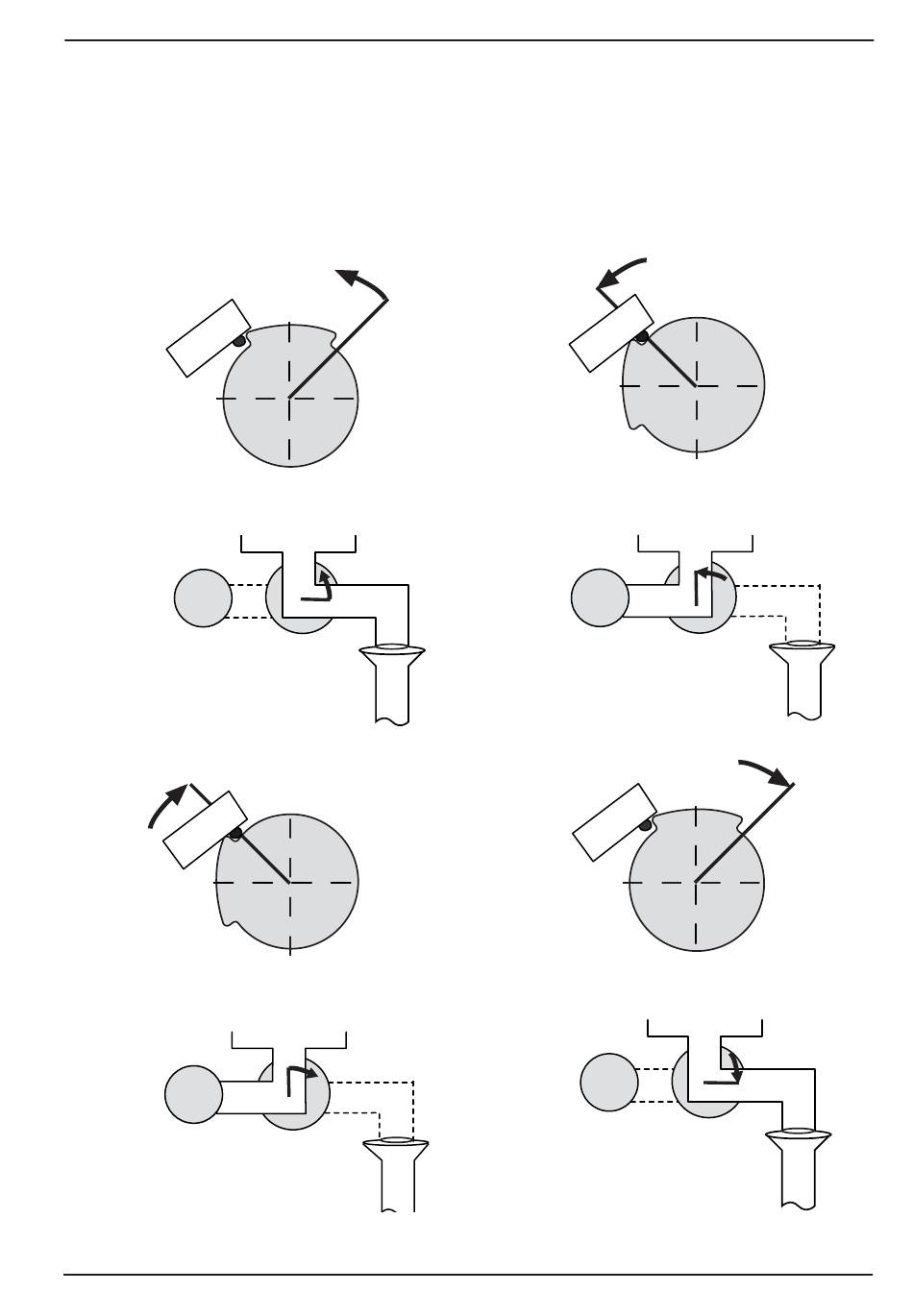

1 - Drain valve: position cooking
2 - Drain valve: position CleanJet
S12 - Micro switch Drain valve
M6 - CleanJet Pump
S12
1
M6
S12
2
M6
S12
M6
Using direction „1"
in function test #13
changing of S12 signal
from „0" to „1"-->
Drain closed --> CleanJet
S12
M6
Using direction „2"
in function test #13
changing of S12 signal
from „0" to „1"-->
Drain open --> cooking
Edition 10-2008a
