Model TIF 2000A
Digital Hybrid Telephone Line Interface
Rev. 10
05/2019
F.01U.193.286

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIF 2000A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RTS TIF 2000A

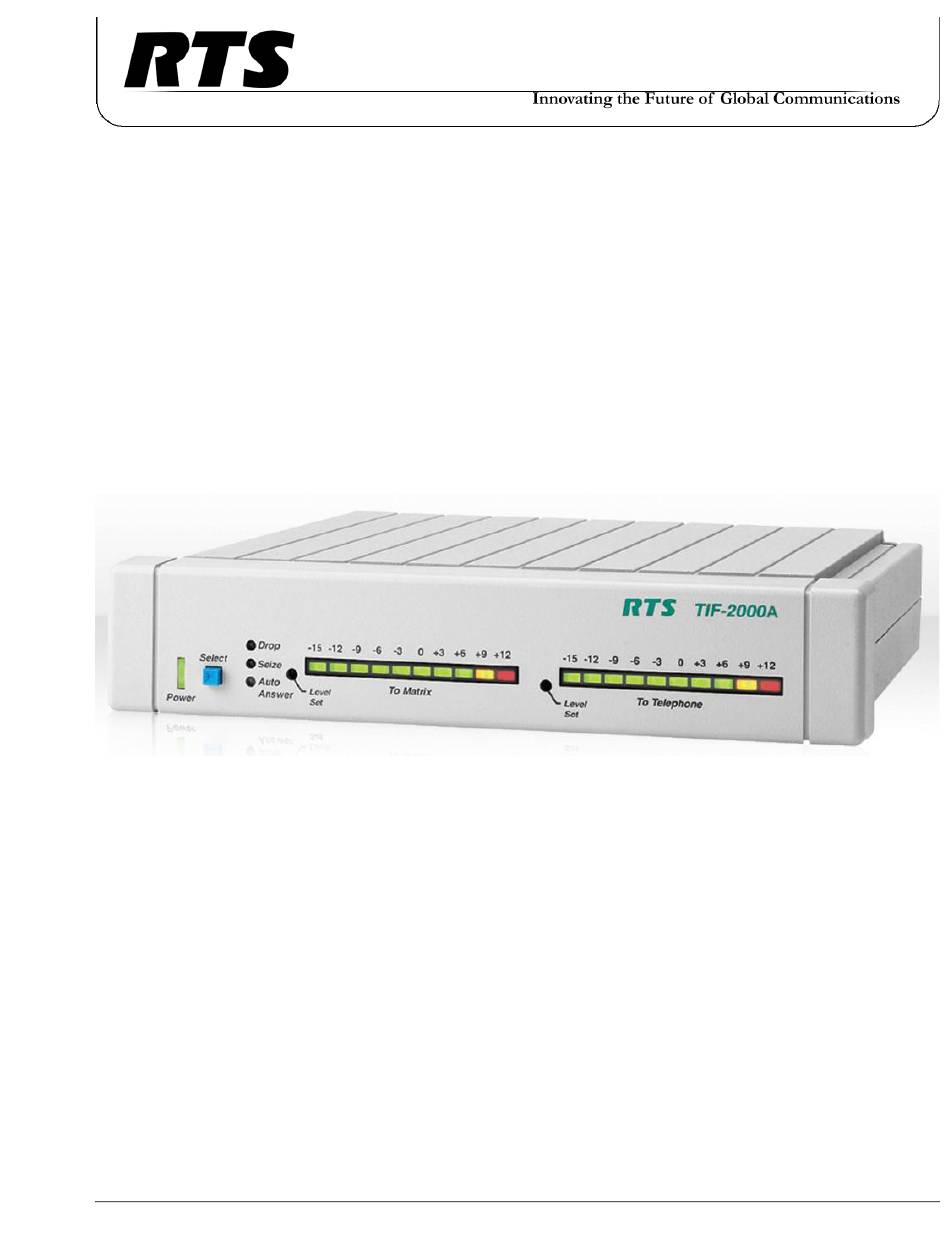

  • Page 1 Model TIF 2000A Digital Hybrid Telephone Line Interface Rev. 10 05/2019 F.01U.193.286...
  • Page 2 WARNING: APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR below: SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. RTS Intercoms ......www.rtsintercoms.com/warranty WARNING: THE MAIN POWER PLUG MUST REMAIN READILY OPERABLE. RTS Digital RTSTW...
  • Page 3 TIF-2000A Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 4 TIF-2000A...
  • Page 5: Table Of Contents

    Table Contents INTRODUCTION AND DESCRIPTION ..................7 Description ..............................7 Front and Rear Panel Features ...........................8 Specifications ..............................9 Cabling .................................10 TIF to Phone ................................10  INSTALLATION AND OPERATION .................... 11 Installation ..............................11 Rear Panel DIP Switch (S201) ..........................11 Auto-Answer .................................11 Generate Ring Signal ............................11 Password Required ..............................12 Intercom Port Address ............................12 Full Duplex Mode ..............................12...
  • Page 6 TIF-2000A Auto-Answer Mode ..............................24 Manual Answer Mode .............................. 24 Using the TIF-2000A From the Telephone ......................25 DTMF Codes ................................26 Telephone Interface Requirements Form October 2012 ................................27...
  • Page 7: Introduction And Description

    Introduction and Description This manual describes the installation, programming, and operating procedures for the RTS Model TIF2000A Digital Hybrid Telephone Line Interface. Since TIF2000A functions as a keypanel, the user may also need to refer to the manuals and/or the AZedit online help files for information on configuring certain features.
  • Page 8: Front And Rear Panel Features

    8 Introduction and Description TIF-2000A Front and Rear Panel Features TIF2000A Reference View FIGURE 1.
  • Page 9: Specifications

    TIF-2000A Introduction and Description 9 Specifications Safety: UL 60950-1, 2nd Edition, 2014-10-14 Matrix Input/Output: CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 0dBu to ±20dBu EN 60950-1:2006/A11:2009/A1:2010/ Telephone Input/Output: A12:2011/A2:2013 -30dBu to +6dBu IEC 60950-1:2005 2nd Ed, Am1:2009/ Am2:2013 Noise (200 Hz to 3.8 kHz): -40dBu or less UL 62368-1, 2nd Ed,2014-12-01 Harmonic Distortion (300Hz to 3.8kHz):...
  • Page 10: Cabling

    TIF-2000A Introduction and Description 10 Cabling TIF to Phone Phone to TIF-2000A Cable (US) FIGURE 2. Phone to TIF-2000A Cable (UK) FIGURE 3.
  • Page 11: Installation And Operation

    CHAPTER 2 Installation and Operation Installation Rear Panel DIP Switch (S201) The rear panel DIP switch contains switches to configure the most often change options. These include: auto-answer on/off • ring signal on/off • password on/off • intercom port address •...
  • Page 12: Password Required

    12 Installation and Operation TIF-2000A Password Required Turning on the password required option sets the unit so that when a call is automatically answered, the user must enter a password via DTMF before the unit allows communications. The password numeric sequence and length are determined by the settings of intercom DIP switch S203.
  • Page 13 TIF-2000A Installation and Operation 13 Correspondence between address numbers and intercom port numbers for ADAM and Zeus systems TABLE 1. Address Card Numbers (bold headings) and Port Numbers Cards 1 - 25 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 17 25 33 41 49 57 65 73 81 89 97 105 113 121 129 137 145 153 161 169 177 185 193 10 18 26 34 42 50 58 66 74 82 90 98 106 114 122 130 138 146 154 162 170 178 186 194 19 27 35 43 51 59 67 75 83 91 99 107 115 123 131 139 147 155 163 171 179 187 195...
  • Page 14: Internal Dip Switch (S202)

    14 Installation and Operation TIF-2000A Address DIP Switch Settings TABLE 2. DIP Switch Settings Logical Keypanel Number down down down down down down down down down down down down NOTE: Shaded area is for CS9xxx system address only. Internal DIP Switch (S202) Internal DIP switch (see Figure 3 on page 8) is accessed by removing the top cover.
  • Page 15: Point-To-Point Seize

    TIF-2000A Installation and Operation 15 Internal DIP Switch Locations FIGURE 5. Ring Count Settings TABLE 3. # of Rings Point-to-Point Seize Switch 4 turns on and off the point-to-point feature. When the switch is in the off position, normal line seize operation (via a keypanel) is selected.
  • Page 16: Fast Seize

    16 Installation and Operation TIF-2000A Fast Seize Switch 6 enables/disables the Fast Seize feature. If the switch is in the off position, Fast Seize is disabled. If the switch is in the on position, Fast Seize is enabled. If Fast Seize is enabled and the unit is set to auto-answer, then the TIF2000A answers or seize the line at the start of the first ring.
  • Page 17: Rack Mounting

    TIF-2000A Installation and Operation 17 Rack Mounting There are two (2) options for rack mounting the TIF2000A. If a single unit is to be rack mounted, attach an MCP-2 rack mount kit. If two (2) units are to be mounted side-by-side, attach an MCP-1 rack mount kit. See Figure 6 for a depiction of the two (2) rack mount kits.
  • Page 18: Connections

    18 Installation and Operation TIF-2000A Connections Password Settings TABLE 5. Password Intercom 0,6,2,0 3,3,3,9 Use either of the To Matrix connectors (but not both) to connect 9,8,5,0 to an intercom port. The intercom port you connect to 7,3,5,6 determines the address of the unit (see “Intercom Port Address” on page 12).
  • Page 19: Setting Audio Levels

    TIF-2000A Installation and Operation 19 Setting Audio Levels Audio levels to the intercom matrix and to the telephone line can be adjusted via the trim pots located on the front panel. Setting Audio Levels To Intercom Matrix Adjustment may be made via the front panel control (see Figure 1). To adjust the control use a small flat blade screw driver or trim pot adjustment tool.
  • Page 20: Setting Audio Levels To Telephone Lines

    20 Installation and Operation TIF-2000A Setting Audio Levels to Telephone Lines Adjustment may be made via the front panel control (see Figure 1). To adjust the control use a small flat blade screw driver or trim pot adjustment tool. Initially set the front panel level control for mid-range. Talk at your normal level and adjust the control for the best audio quality while avoiding going into the red section of the audio meter (to Telephone) located on the front panel.
  • Page 21: Operation

    TIF-2000A Installation and Operation 21 Operation Operation From a Keypanel The TIF-2000A is operated from the intercom keypanels, and from the dial pad on the telephone at the remote end of the line. Any keypanel with a keypad may use a TIF-2000A. All that is necessary is to program a key to talk to the TIF-2000A, as if it were a keypanel.
  • Page 22: Dialing A Call

    22 Installation and Operation TIF-2000A Dialing a Call To dial a call on the TIF-2000A using a KP-32, do the following: Press the listen key for the line you wish to dial on. This allows you to hear dial tone, and your DTMF dialing tones. Enter dial mode by entering PHONE-PGM-T....
  • Page 23: Re-Dialing The Last Number

    TIF-2000A Installation and Operation 23 Re-dialing the Last Number The TIF-2000A remembers the last number which it has dialed. To redial the last number, do the following: Enter dialing mode by following instructions for dialing a call. Enter CLR-0-0. The TIF-2000A automatically redials the last number it dialed. Momentarily release the talk key to exit dialing mode.
  • Page 24: Tif-2000A System Setup To Receive Calls

    24 Installation and Operation TIF-2000A TIF-2000A System Setup To Receive Calls To the intercom system, the TIF-2000A is similar to a keypanel. If the phone lines are to be used for outgoing calls only, then no programming in AZedit is necessary. If users are going to phone into the intercom system from the outside, then the TIF4000 needs to be configured to allow them to use the phone line in much the same way a local user uses the keypanel.
  • Page 25: Using The Tif-2000A From The Telephone

    TIF-2000A Installation and Operation 25 Using the TIF-2000A From the Telephone The TIF-2000A behaves differently depending on how it is programmed. It is up to the operator who programs the TIF-2000A to convey to the user what to expect. If the user is not familiar with the operation of the TIF-2000A, it is best to keep the operation as simple as possible.
  • Page 26: Dtmf Codes

    26 Installation and Operation TIF-2000A DTMF Codes 1 nn # K Program a talk key to a point-to-point. 2 nn # K Program a talk key to a PL. Once programmed, the TIF-2000A may be operated via the DTMF keypad on the telephone. The DTMF keys have the 01 nn # K Program a talk key to a special list.
  • Page 27: Telephone Interface Requirements Form October 2012

    TIF-2000A Installation and Operation 27 Telephone Interface Requirements Form October 2012 The TIF-2000A Digital Hybrid Telephone Line Interface has been designed to respond to ringing for auto-answer and to respond to a number of conditions to detect hang-up. These conditions are (in the standard product) based upon the telephone systems of the US and other select countries.
  • Page 28 Bosch Security Systems, Inc. 12000 Portland Avenue South Burnsville, MN 55337 U.S.A. www.boschcommunications.com...
