RTS TIF 2000 User Manual

Digital hybrid telephone line interface
Hide thumbs Also See for TIF 2000:

Advertisement

Quick Links

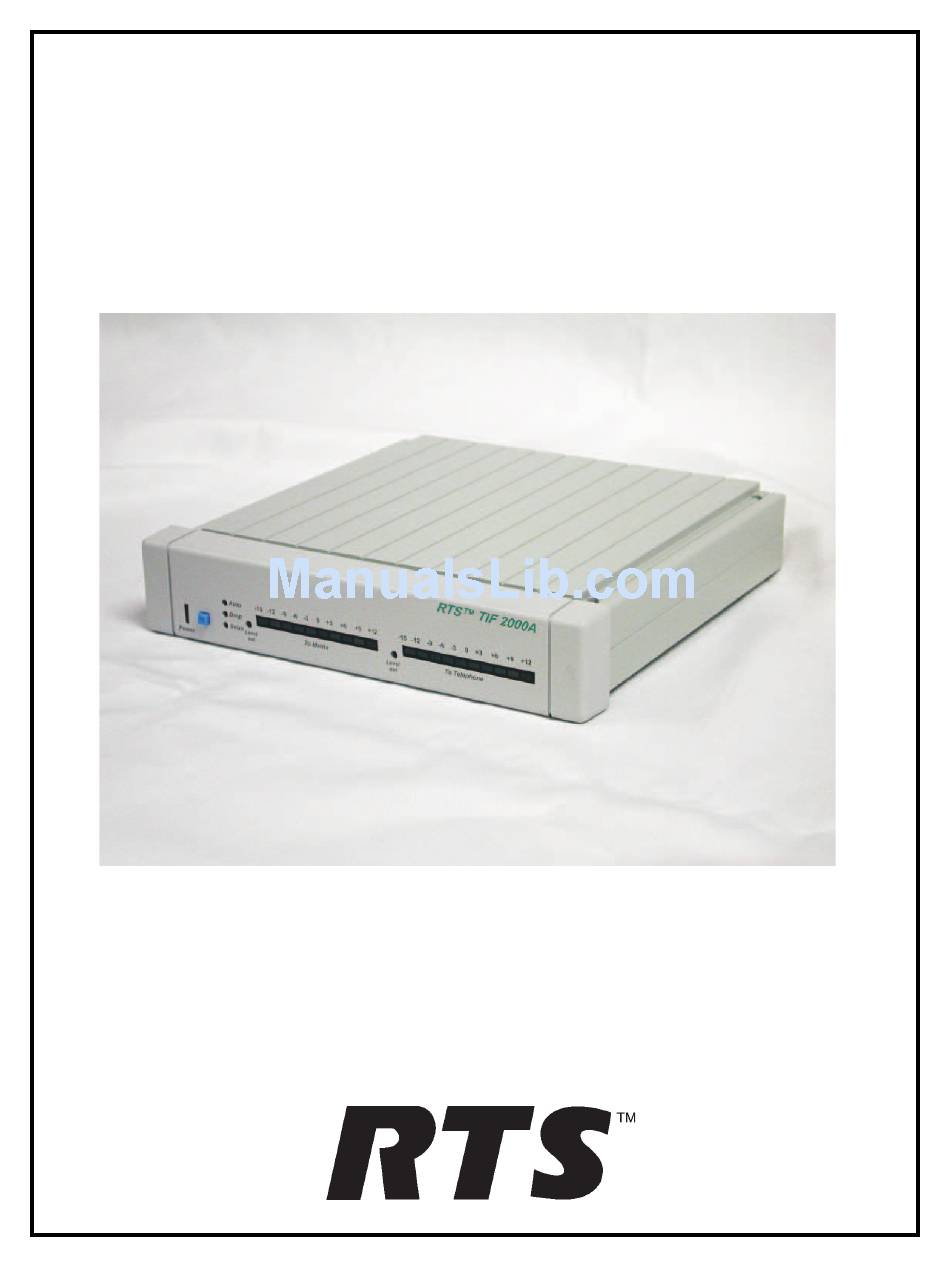

USER MANUAL

Model TIF 2000A
Digital Hybrid Telephone Line Interface
9350-7823-000 Rev B, 2004
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIF 2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for RTS TIF 2000

  • Page 1: User Manual

    USER MANUAL Model TIF 2000A Digital Hybrid Telephone Line Interface 9350-7823-000 Rev B, 2004...
  • Page 2 The sole obligation of Telex during the warranty period is to provide, without charge, parts and labor necessary to remedy covered defects appearing in products returned prepaid to Telex. This...
  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ... 4 DESCRIPTION ... 4 Front Panel Features ... 4 Power ... 4 Indicator ... 4 Rear Panel Features ... 4 Seizes & Drops Line ... 4 Intercom Matrix Connections ... 4 Line Mode ... 4 Indicator ...
  • Page 4 Intercom ... 7 Telephone and Telephone Line ... 7 Power Supply ... 7 Setting Audio Levels ... 8 Setting audio levels to intercom matrix... 8 Setting audio levels to telephone line ... 9 Configuring for Country’s Telephone System ... 9 OPERATION ...
  • Page 5: Introduction

    This manual describes the installation, programming, and operating procedures for the RTS Model TIF 2000A Digital Hybrid Telephone Line Interface. Since TIF 2000A functions as a keypanel, the user may also need to refer to the manuals and/or on-line help files for AZedit for infor- mation on configuring certain features.
  • Page 6 Table 1- Correspondence between address numbers and intercom port numbers for ADAM, ADAM CS, and Zeus systems...
  • Page 7: Full Duplex Method

    Table 2- Address DIP Switch Settings 3. Determine the DIP switch settings by looking up the address determined in the previous step in Table 2. 4. Set the DIP switches on the back of the unit. To set the address for CS 9xxx systems do the following: 1.
  • Page 8: One Touch Dial

    One Touch Dial Switch 5 enables/disables the One Touch Dialing feature. When the switch is in the OFF position One Touch Dial is disabled. When the switch is in the ON position One Touch Dial is enabled. One Touch Dial works as follows: If a number is stored in Auto Dial memory 1 on the TIF 2000A, and the line is on hook, then the TIF 2000A will autodial the number stored in Auto Dial memory 1...
  • Page 9: Setting Audio Levels

    Table 5 - Password length DIP Switch Settings ate power outlet. Setting Audio Levels Audio levels to the intercom matrix and to the telephone line can be adjusted via the trim pots located on the front panel. Setting audio levels to intercom matrix Adjustment may be made via the front panel control (see Figure 1).
  • Page 10: Setting Audio Levels To Telephone Line

    Setting audio levels to telephone line Adjustment may be made via the front panel control (see Figure 1). To adjust the control use a small flat blade screwdriver or trim pot adjustment tool. Initially set the front panel level control for mid range. Talk at your normal level and adjust the control for the best audio quality while avoiding going into the red section of the audio meter (to Telephone) located on the front panel.
  • Page 11: Dialing A Call

    Dialing a call Any key panel may dial calls on the TIF 2000A. To dial a call on the TIF 2000A; 1. Turn on the listen key for the line you wish to dial on. This will allow you to hear dial tone, and your DTMF dialing tones.
  • Page 12: Tif 2000A System Setup To Receive Calls

    Auto Answer Mode To use the TIF 2000 in auto answer mode, you must first enable auto answer mode on the rear panel DIP switch bank, switch 1. You may also wish to enable Password Required, switch 3.
  • Page 13: Dtmf Codes

    TIF 2000A to convey to the user what to expect. If the user is not familiar with the operation of the TIF 2000A, it is best keep the operation as simple as possible, until they are familiar with its operation. For this reason, it is suggested that you not use password required unless you have had problems with nuisance calls in the past.
  • Page 14: Specifications

    2 nn # *K Program a listen key to a PL. 3 2 # *K Program a listen key to auto follow. 3 3 # *K Program a listen key to auto Mute 01 nn # *K Program a listen key to a special list. 02 nn # *K Program a listen key to an IFB.
  • Page 15: Telephone Interface Requirements Form

    TIF 2000A. Additionally, some countries require governmental approval for connection of the TIF 2000A to the public telephone system. Telex handles these requirements on a case by case basis and may require a one-time engineering fee to adapt the TIF 2000A for a specific telephone system or to obtain governmen- tal approval.
