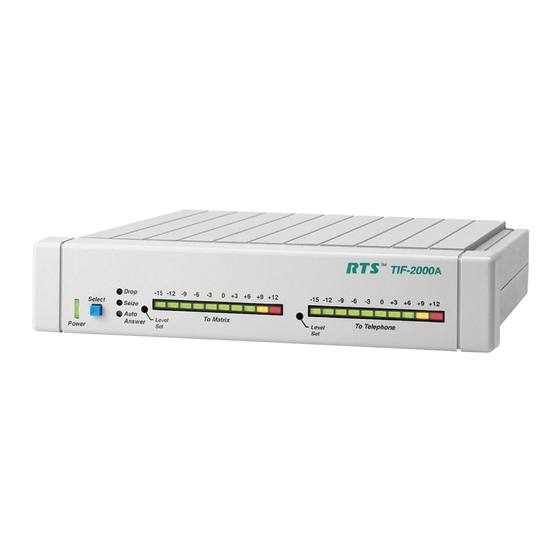

RTS TIF-2000A Specification Sheet

The TIF-2000A is a single line digital hybrid telephone line interface designed to be compatible with ADAM, ADAM-CS, Cronus,
Zeus, and CS 9000 series intercom systems. It provides bidirectional communication between the intercom matrix and a stan-
dard DTMF capable telephone line. It allows the phone to access all crosspoints of the matrix, as well as dynamic party lines,
IFB circuits, and other forms of communications. The 1U high by ½ wide rackmountable (via an optional MCP-1 or MCP-2 kit)
TIF-2000A provides a transparent link to the telephone system enabling full dial-out capability from any designated keypanel
with keypad. The TIF-2000A has full dial-in capability giving the caller a keypanel on the system via commands from the DTMF
pad on their telephone. Since the TIF-2000A appears to the matrix as any other keypanel would, the only limitation on the num-
ber of units in the system is the same as for other keypanels.

Features

Auto or Manual Answer
Select security code or none.
Select number of rings before answer.
Caller can be locked to one matrix point.
Up to 16 panels may be selected to ring.
Call in directly to party-line or IFB
Line Drawing
TIF-2000A

Single-Line Digital Telephone Interface

To Matrix
Caller may select up to seven T/L assignments
Caller may change presets
Auto disconnect
Direct audio input mixes with matrix audio
Levels can be adjusted for intercom & telephone
Downloadable telephone system configuration
To Telephone
