SawStop MB-CNS-000 Owner's Manual page 3

Installing Your Mobile Base Installing Your Mobile Base
Note: The stand for your contractor saw must be fully assembled before installing the mobile base.
1. Locate all of the mobile base components shown on page 1. All of the hardware
needed to install the mobile base is located on the mobile base hardware pack
(see Fig. 1). In order to easily identify the hardware used in each of the following
steps, the different pieces of hardware are numbered on the hardware pack and
in the figures. If you are missing the hardware pack or any of the other mobile
base components, call the SawStop Service Department at 503-582-9934 for
replacements.
You will need the following tools to complete the mobile base installation:
• two 10 mm wrenches
• two 13 mm wrench
• a 14 mm wrench
• a 5 mm hex key

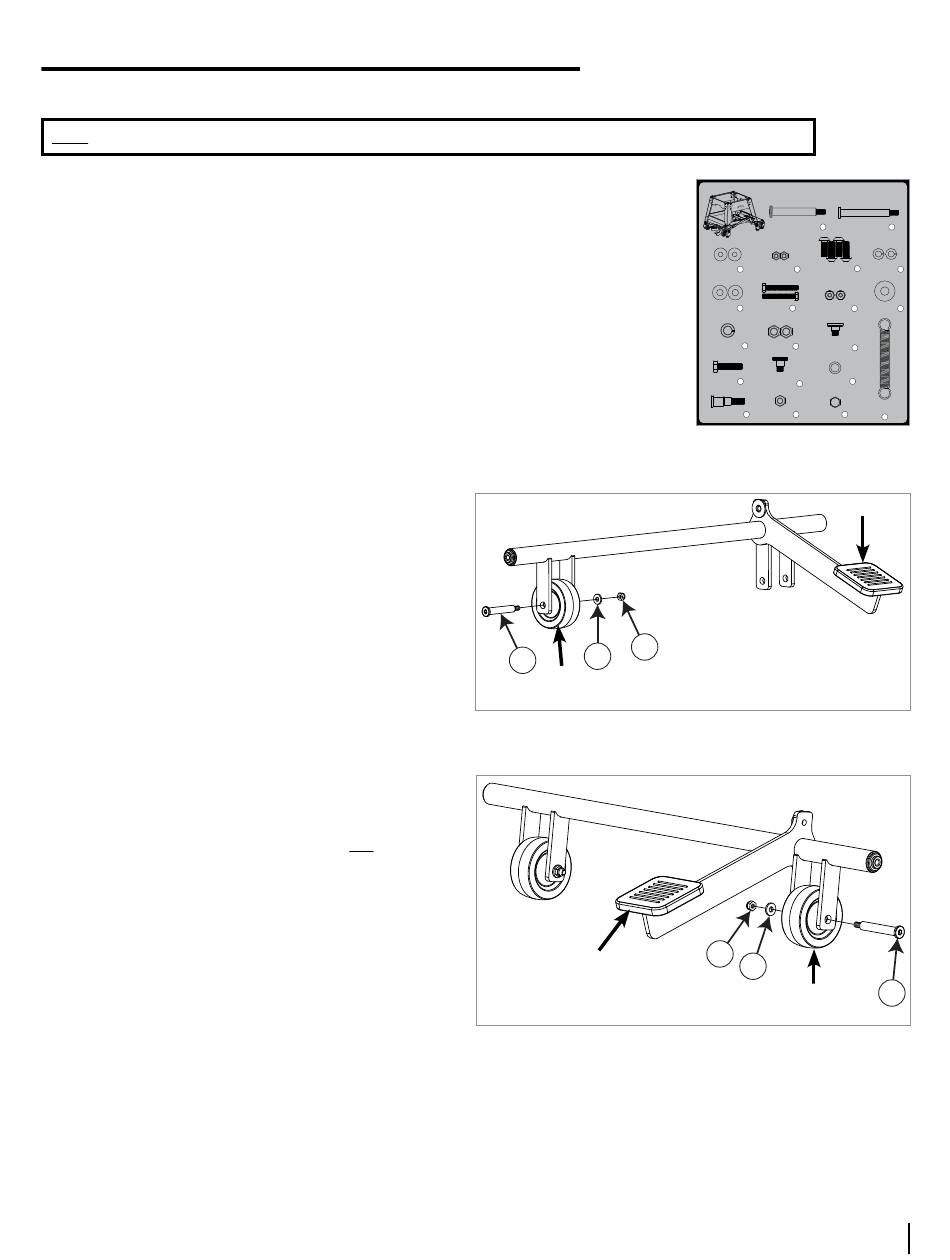

2. Take the wheel support and mount one of the 3
inch wheels to the end furthest from the foot pedal.
Use the short axle, one M6 washer, and one M6
nylon hex nut to mount the wheel to the support
as shown in Fig. 2. Fully tighten the nut using a 10
mm wrench and a 5 mm hex key.
3. Mount the other 3 inch wheel to the other end of the
wheel support. Use the long axle, one M6 washer,
and one M6 nylon hex nut to mount the wheel to
the support as shown in Fig. 3. Do not tighten the
nut because it will be removed in a later installation
step.
4
3
1
3 inch
wheel
Fig. 2
foot pedal
Fig. 3
SawStop
Mobile Base Hardware Pack
Short Fixed Wheel Axle, Long Fixed Wheel Axle,
1
M6 x 67.6 (1) M6 x 73.8 (1)
Washers, Nylon Hex Nuts, Button Head Socket Lock Washers,
M6 x 16 (4) 3 4 5 M8 x 13.6 (4) 6
M6 (2) Screws, M8 x 20 (4)
Washers, Hex Bolts, Flange Lock Nuts, Washers,
7 8
9
M8 x 18 (4) M8 x 40 (2) M6 (2) M10.5 x 25 (2)
Shoulder Socket Screw,
Lock Washers, Caster Nuts,
M10.5 x 17 (2) 11 3/8" thread (2) 12 M8 x 15.7 (1) 13
Shoulder Socket Screw,
Hex Screw, Wave Washer,
16
14 M8 x 17.7 (1) 15
M8 x 30 (1) M10.5 x 14.5 (1)
Extension Spring,
(1)
Release Lever Nylon Hex Nut, Cap Nut,
18 19 20
Locking Screw (1) M8 (1) M8 (1)
17
Fig. 1
foot pedal
4
3
3 inch
wheel
Contractor Mobile Base
®
2
10
2
3
