SawStop MB-CNS-000 Owner's Manual page 2

Safety
1. Never place fingers, toes or other body parts under the saw when it is raised onto the mobile base. The base
may suddenly lower on you and cause a severe injury.
2. Do not attempt to use or move the saw on an inclined surface. The weight of the saw makes it difficult to stop
on an inclined surface. Attempting to use or move the saw on an inclined surface could result in a severe injury.
3. Make sure the saw is fully lowered to the ground and stable before operating the saw. Otherwise, the saw could
move unexpectedly and cause a severe injury.
4. Be sure to unplug or disconnect the saw from power before moving or repositioning it. The main power cord or
the power outlet could be damaged if the saw is not disconnected from power before moving it.
Note: If you are using the SawStop Out-Feed Table you must remove it before moving your saw with the Contractor
Saw Mobile Base. Attempting to lift the saw with the out-feed table attached may damage the out-feed table.
Unpacking Your Mobile Base

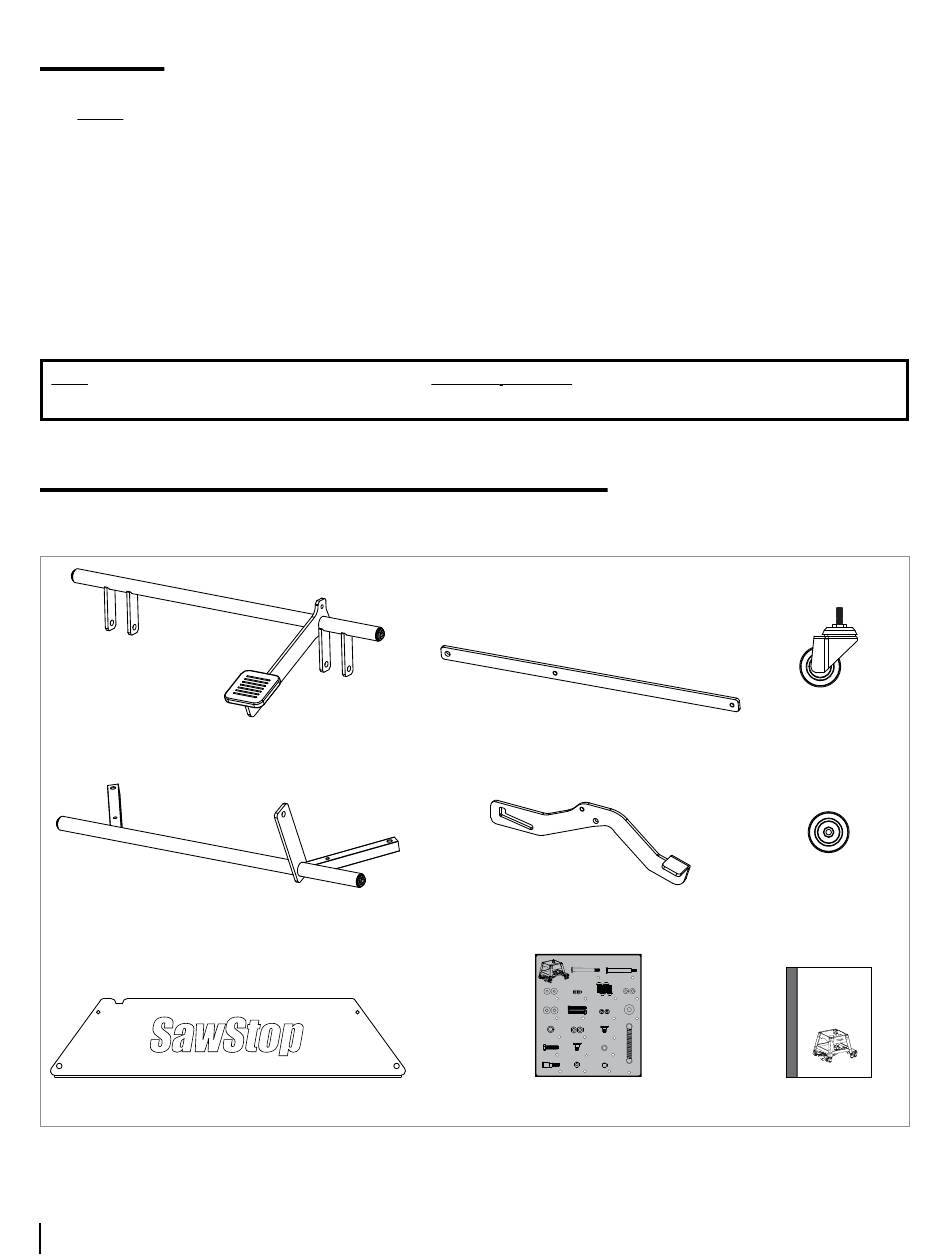

While unpacking your mobile base verify that all the components shown on this page are included.
wheel support
caster support
SawStop
caster support plate
2 SawStop Contractor Mobile Base
®
linkage bar
release lever
Mobile Base Hardware Pack
Short Fixed Wheel Axle, Long Fixed Wheel Axle,
1 2
M6 x 67.6 (1) M6 x 73.8 (1)
Washers, Nylon Hex Nuts, Button Head Socket Lock Washers,
5
M6 x 16 (4) 3 4 M8 x 13.6 (4) 6
M6 (2) Screws, M8 x 20 (4)
Washers, Hex Bolts, Flange Lock Nuts, Washers,
7 8 9 10
M8 x 18 (4) M8 x 40 (2) M6 (2) M10.5 x 25 (2)
Shoulder Socket Screw,
Lock Washers, Caster Nuts,
M10.5 x 17 (2) 11 3/8" thread (2) 12 M8 x 15.7 (1) 13
Hex Screw, Shoulder Socket Screw, Wave Washer,
14 M8 x 17.7 (1) 15 16
M8 x 30 (1) M10.5 x 14.5 (1)
Extension Spring,
(1)
Release Lever Nylon Hex Nut, Cap Nut,
18 19 20
Locking Screw (1) M8 (1) M8 (1)
17
mobile base hardware pack
3" caster
(two)
3" wheel
(two)
SawStop
®
Contractor Mobile Base
OWNER'S MANUAL
Raise
Model MB-CNS-000
owner's manual
