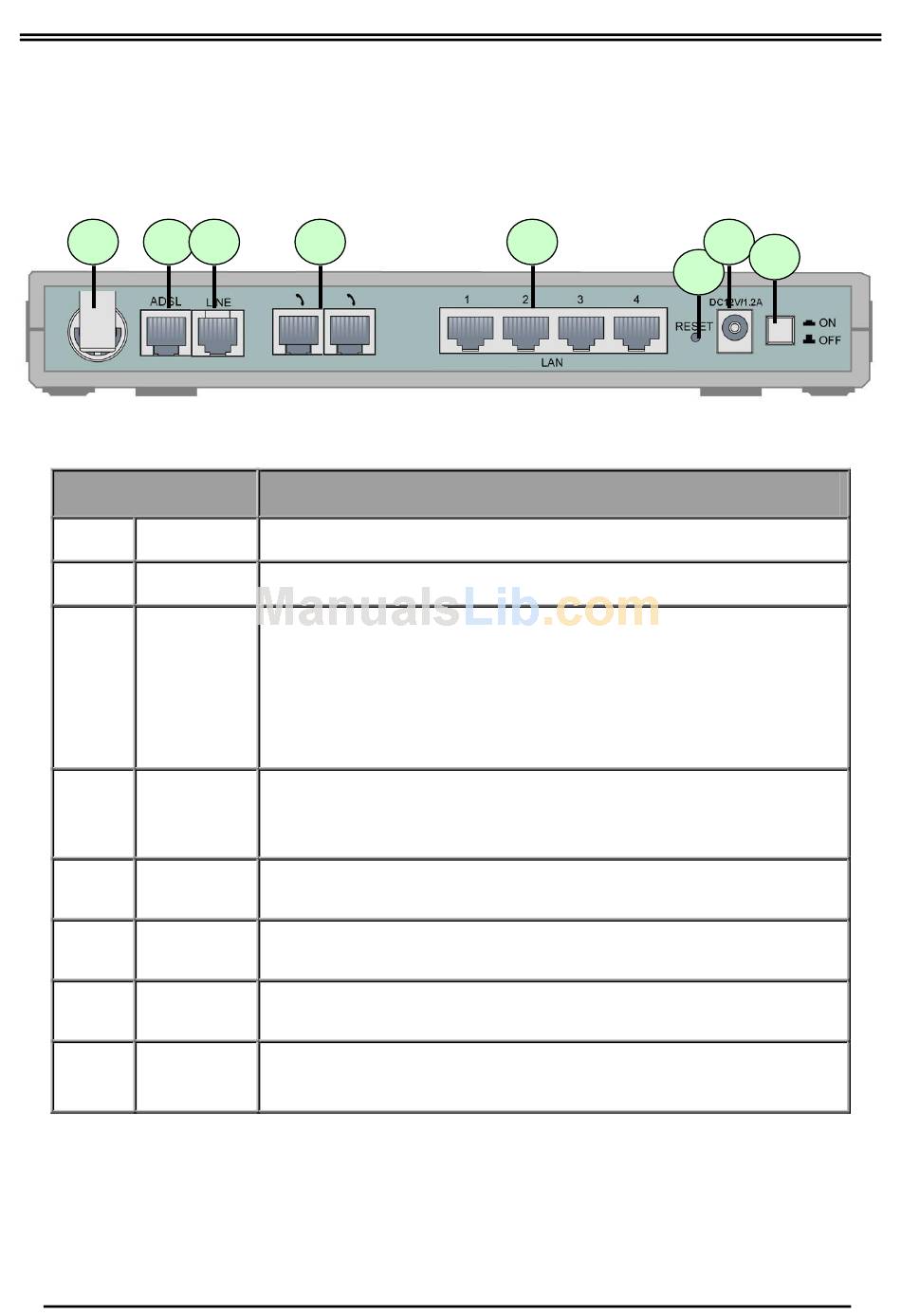

The Rear Ports

8 7
Port
Power
1
Switch
2 PWR
3 RESET
LAN
4
Phone
5
6 LINE
7 ADSL
Antenna
8 (7300VGP
only)
6 5
Power ON/OFF switch.
Connect the supplied power adapter to this jack.
After the router is powered on, press this recessed button using
the end of paper clip or other small pointed object to reset the
router or to restore it to factory default settings.
1. Recovery procedures for non-working routers (e.g. after a
failed firmware upgrade flash):
2. Recovery procedures for a lost web interface password:
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the
four LAN ports when connecting to a PC or an office/home
network of 10Mbps or 100Mbps.
Connect RJ-11 cable to this port when connecting to an analog phone
set.
Connect RJ-11 cable to this port when connecting to the telephone
wall jack
Connect the supplied RJ-11 ("telephone") cable to this port when
connecting to the ADSL/telephone network.
Connect the detachable antenna to this port.
Billion BiPAC 7300VGP Series ADSL2+ Router
4
Description
2
1
3
3
