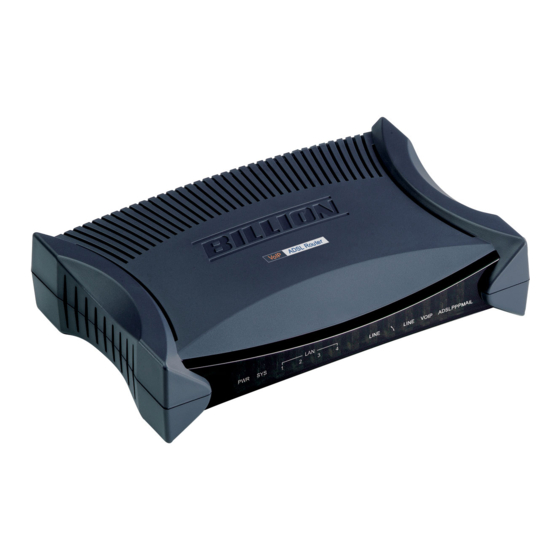

Billion BiPAC 5200 Series User Manual

(802.11g) adsl2+ firewall router
Hide thumbs Also See for BiPAC 5200 Series:
Table of Contents

Advertisement

Quick Links

BiPAC 5200 Series
(802.11g) ADSL2+ Firewall Router
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BiPAC 5200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billion BiPAC 5200 Series

Summary of Contents for Billion BiPAC 5200 Series

  • Page 1 BiPAC 5200 Series (802.11g) ADSL2+ Firewall Router User’s Manual...

  • Page 2: Table Of Contents

    1.2 Features of the BiPAC 5200 Series ... 3 1.3 Applications for the BiPAC 5200 Series ... 6 Chapter 2 ... 8 2.1 Important note for using the BiPAC 5200 Series ... 8 2.2 Package Contents ... 8 2.3 The Front LEDs ... 9 2.4 The Rear Ports ...

  • Page 3: Chapter 1

    Introduction the BiPAC 5200 Series 1.1 Introducing the BiPAC 5200 Series Welcome to the Billion BiPAC 5200 Series ADSL2+ Modem/Router. Your Billion router is an “all-in-one” unit, combining an ADSL modem, ADSL router and Ethernet network switch, providing everything you need to get the machines on your network connected to the Internet over your ADSL broadband connection.
  • Page 4 to target a machine on your network. Secondly, it can block and redirect certain ports to limit the services that outside users can access. For example, to ensure that games and other Internet applications will run properly, user can open some specific ports for outside users to access internal services in network.

  • Page 5: Features Of The Bipac 5200 Series

    1.2 Features of the BiPAC 5200 Series ADSL Multi-Mode Standard Supports downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. It also supports rate management that allows ADSL subscribers to select an Internet access speed suiting their needs and budgets.
  • Page 6 Firewall Supports simple firewall with NAT technology and provides option for blocking access from Internet, like Telnet, FTP, WEB, SNMP and IGMP. Domain Name System (DNS) relay Provides an easy way to map the domain name (a friendly name for users such as www.yahoo.com) and IP address.
  • Page 7 with on-line help. It also supports remote management capability for remote users to configure and manage this product. Firmware Upgradeable Device can be upgraded to the latest firmware through the WEB based GUI.

  • Page 8: Applications For The Bipac 5200 Series

    1.3 Applications for the BiPAC 5200 Series BiPAC 5200S/ 5200SR2/ 5200SR3 BiPAC 5200/ 5200R3...
  • Page 9 BiPAC 5200G/ 5200GR2/ 5200GR3/ 5200GR4/ 5200GR5...

  • Page 10: Chapter 2

    2.1 Important note for using the BiPAC 5200 Series Do not use the BiPAC 5200 Series in high humidity or high temperatures. Do not use the same power source for the BiPAC 5200 Series as other equipment. Do not open or repair the case yourself. If the BiPAC 5200...

  • Page 11: The Front Leds

    2.3 The Front LEDs BiPAC 5200S/ 5200SR2/ 5200SR3 BiPAC 5200/ 5200R3 BiPAC 5200G/ 5200GR2/ 5200GR3/ 5200GR4/ 5200GR5...

  • Page 12: The Rear Ports

    PPP : ADSL: LAN Port 1-4: WLAN： (5200G Series only) SYS : PWR : 2.4 The Rear Ports BiPAC 5200S/ 5200SR2/ 5200SR3 Attention: BiPAC 5200S has not supported the ON/OFF switch. Meaning Lit steady when there is a PPPoA / PPPoE connection. Lit when successfully connected to an ADSL DSLAM (“linesync”).
  • Page 13 BiPAC 5200/ 5200R3 BiPAC 5200G/ 5200GR2/ 5200GR3/ 5200GR4/ 5200GR5 Port RESET ADSL (LINE) Power Switch Connect the supplied power adapter to this jack. After the device is powered on, press it to reset the device or restore to factory default settings.

  • Page 14: Cabling

    LAN Link and ADSL line LEDs are lit. If they are not, verify that you are using the proper cables. Ensure that all other devices connected to the same telephone line as your Billion router (e.g. telephones, fax machines, analogue modems) have a line filter connected between them...

  • Page 15: Before Configuration

    If not, please refer to your Windows-related or other operating system manuals. Any TCP/IP capable workstation can be used to communicate with or through the BiPAC 5200 Series. To configure other types of workstations, please consult the manufacturer’s documentation. Chapter 3...
  • Page 16 Configuring PC in Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.
  • Page 17 Configuring PC in Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.
  • Page 18 Configuring PC in Windows 98/Me 1.Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2.Select TCP/IP ->NE2000 Compatible, or the name of your Network Interface Card (NIC) in your PC. 3.Select the Obtain an IP address automatically radio button.
  • Page 19 Configuring PC in Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2.Select TCP/IP Protocol and click Properties. 3.Select the Obtain an IP address from a DHCP server radio button and click OK.

  • Page 20: Step-By-Step Installation

    3.2 Step-by-Step Installation Insert the CD-ROM into CD-ROM drive Execute Windows Utility The Welcome screen will appear, click Next 4. The Hardware Installation screen will appear. Four links are shown on the screen. Click them one by one and follow the guidelines to complete hardware installation.
  • Page 21 4.3 ADSL Line connection 5. When finished Hardware Installation, click “Next” to proceed to next step, Network Card Selection. 6. Diagnostic screen. (If connection fails, the screen will show “FAIL” ,please check your router is connected correctly.) 7. Click Next to enter Configuration Details 4.4 Filter connection...
  • Page 22 8. Set up more detailed settings such as VPI, VCI and MTU. 9. Please enter “Username” and “Password” as supplied by your ISP (Internet Service Provider) and click next. 10. Please configure the Wireless LAN setting and click next. (If your router does not support wireless, please ignore this screen and it will not appear.)
  • Page 23 11. Click Next to proceed to Diagnostic screen 12. Congratulations!! You’ve completed the setup procedure and are ready for surfing the Internet. 13. The IE browser will be opened automatically when you finish installing.

  • Page 24: Factory Default Settings

    3.3 Factory Default Settings Before configuring your, you need to know the following default settings. Web Interface: Username: admin Password: admin LAN Device IP Settings: IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 ISP setting in WAN site: PPPoE DHCP server: DHCP server is enabled. Start IP Address: 192.168.1.100 IP pool counts: 100 3.3.1 Username and Password...

  • Page 25: Lan And Wan Port Addresses

    3.4 LAN and WAN Port Addresses The parameters of LAN and WAN ports are pre-set in the factory. The default values are shown below. IP address Subnet Mask DHCP server function IP addresses for distribution to PCs 3.5 Information from your ISP Before configuring this device, you have to check with your ISP (Internet Service Provider) what kind of service is provided such as PPPoE, PPPoA, RFC1483, or IPoA.

  • Page 26: Configuring With Your Web Browser

    Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and click “Go”, a user name and password window prompt will appear. The default username and password are “admin” and “admin”. Congratulation! You are now successfully logon to the BiPAC 5200 Series ADSL2+ Router!

  • Page 27: Chapter 4

    Access Management (ACL, Filter, SNMP, UPnP, DDNS) Maintenance (Administration, Time Zone, Firmware, SysRestart, Diagnositics) Status (Device Info, System Log, Statistics) Help Please see the relevant sections of this manual for detailed instructions on how to configure your Billion router. Chapter 4 Configuration...

  • Page 28: Quick Start

    4.1 Quick Start For detailed instructions on configuring WAN settings, see the Interface Setup section of this manual. The Quick Start Wizard is a useful and easy utility to help setup the device to quickly connect to your ISP (Internet Service Provider) with only a few steps required. It will guide you step by step to configure the password, time zone, and WAN settings of your device.
  • Page 29 Step1. Set your new password. Step2: Choose your time zone...
  • Page 30 Step3: Set your Internet connection...
  • Page 32 Step4: Restart your ADSL2+ Router...

  • Page 33: Interface Setup

    4.2 Interface Setup Click this item to access the following sub-items that configure the ADSL2+ router: Internet, LAN, and Wireless These functions are described in the following sections.
  • Page 34 4.2.1 Internet ATM VC ATM settings are used to connect to your ISP. Your ISP provides VPI, VCI settings to you. In...
  • Page 35 this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP. You need to activate the VC to take effect. For PVCs management, you can use ATM QoS to setup each PVC traffic line's priority. Virtual Circuit: VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) define a virtual circuit.
  • Page 36 Choices vary depending on what you select in the Mode field. Dynamic IP: Select this option if your ISP provides you an IP address automatically. This option is typically used for Cable services. Please enter the Dynamic IP information accordingly. Static IP: Select this option to set static IP information.
  • Page 37 1483 Bridged IP in the Encapsulation field in the previous screen. NAT: Select this option to Activate/Deactivated the NAT (Network Address Translation) function for this VC. The NAT function can be activated or deactivated per PVC basis Default Route: if enable this function, the current PVC will be the default gateway to internet from this device TCP MTU Option: Enter the TCP maximum transmission unit (MTU) Dynamic Route:...
  • Page 38 4.2.2 LAN A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building. Router Local IP IP Address: Enter the IP address of ADSL Router in dotted decimal notation, for example, 192.168.1.254 (factory default).
  • Page 39 If set to disabled, the DHCP server will be disabled. If set to Relay, the BiPAC 5200 Series acts as a surrogate DHCP server and relays DHCP requests and responses between the remote server and the clients. Enter the IP address of the actual, remote DHCP server in the Remote DHCP Server field in this case.
  • Page 40 4.2.3 Wireless 802.11g are only supported for the BiPAC 5200G Series This section introduces the wireless LAN and some basic configurations. Wireless LANs can be as simple as two computers with wireless LAN cards communicating in a peer-to-peer network or as complex as a number of computers with wireless LAN cards communicating through access points which bridge network traffic to the wired LAN.
  • Page 41 Access Point Settings Access Point: Default setting is set to Activated. If you do not have any wireless, both 802.11g and 802.11b, device in your network, select Deactived. Channel ID: The range of radio frequencies used by IEEE 802.11b/g wireless devices is called a channel.
  • Page 42 increased security over WEP 64. You can disable or enable with WPA or WEP for protecting wireless network. The default type of wireless is disabled and to allow all wireless computers to communicate with the access points without any data encryption Wireless MAC Address Filter The MAC filter screen allows you to configure the router to give exclusive access to up to 8 devices (Allow Association) or exclude up to 8 devices from accessing the router (Deny...
  • Page 43 default key is key 1. WPA-PSK & WPA2-PSK Encryption: TKIP (Temporal Key Integrity Protocol) or AES (Advanced Encryption System) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers. Pre-Shared key: The key for network authentication. The input format is in character style and key size should be in the range between 8 and 63 characters.

  • Page 44: Advanced Setup

    4.3 Advanced Setup 4.3.1 Firewall Your router includes a firewall for controlling Internet access from your LAN and helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet.
  • Page 45 4.3.2 Routing If you have another router with a LAN-to-LAN connection, you may create a static routing on the router that is the gateway to Internet. #: Item number Dest IP: IP address of the destination network Mask: The destination mask address. Gateway IP: IP address of the gateway or existing interface that this route uses.
  • Page 46 Destination IP Address：This is the destination subnet IP address. IP Subnet Mask：It is the destination IP addresses based on above destination subnet IP Gateway IP Address：This is the gateway IP address to which packets are to be forwarded. Metric：It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15.
  • Page 47 4.3.3 NAT The NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a packet. The default setting is Dynamic NAPT. It provides dynamic Network Address Translation capability between LAN and multiple WAN connections, and the LAN traffic is routed to appropriate WAN connections based on the destination IP addresses and Route Table.
  • Page 48 DMZ: Disabled: As set in default setting, it disables the DMZ function. Enabled: It activates your DMZ function. DMZ Host IP Address: Give a static IP address to the DMZ Host when Enabled radio button is checked. Be aware that this IP will be exposed to the WAN/Internet. Select the SAVE button to apply your changes.
  • Page 49 such as Web or FTP services via the public (WAN) IP address can be automatically redirected to local servers in the LAN network. Depending on the requested service (TCP/UDP port number), the device redirects the external service request to the appropriate server within the LAN network.
  • Page 50 Rule Index: Choose the rule number. Rule Type: One-to-one: This is the mode maps one local IP address to one global IP address. Note that port numbers do not change for the One-to-one NAT mapping type. Many-to-One: This is the mode maps multiple local IP addresses to one global IP address. This is equivalent to Many to One (i.e., PAT, port address translation).
  • Page 51 Public Start IP: This is the starting Inside Public IP Address. Enter 0.0.0.0 here if you have a dynamic IP address from your ISP. Public End IP: This is the ending Inside Public IP Address. This field is N/A for One-to-one, Many-to-One and Server mapping types.
  • Page 52 4.3.4 ADSL ADSL Mode: The default setting is Auto Sync-UP. This mode will automatically detect your ADSL, ADSL2+, ADSL2, G.dmt, G.lite, and T1.413. But in some area, multimode cannot detect the ADSL line code well. If it is the case, please adjust the ADSL line code to G.dmt or T1.413 first.

  • Page 53: Access Management

    ACL Rule Index: This is item number Secure IP Address: The default 0.0.0.0 allows any client to use this service to remotely manage the BiPAC 5200 Series. Type an IP address to restrict access to a client with a matching IP address.
  • Page 54 4.4.2 Filter You can Filter the packages by IP port , MAC and Application. Filter Type Filter Type Selection: There are three types ”IP/MAC Filter”, ”Application Filter”, and “URL Filter” that user can select for this connection. IP/MAC Filter Set Editing IP/MAC filter Set Index: This is item number Interface: Select which channel (PVC) to configure.
  • Page 55 IP/MAC Filter Rule Editing IP/MAC Filter Rule Index: This is item number Rule Type: Choose “IP” or “MAC” rules Active: Select Yes from the drop down list box to enable IP filter rule. Source IP Address: The source IP address or range of packets to be monitored. Subnet Mask: It is the source IP addresses based on above source subnet IP Source Port Number: This Port or Port Ranges defines the port allowed to be used by the Remote/WAN to connect to the application.
  • Page 56 Application Filter: Select this option to Activated/Deactivated the Application filter. ICQ: Select this option to Allow/Deny ICQ. MSN: Select this option to Allow/Deny MSN. YMSG: Select this option to Allow/Deny Yahoo messenger. Real Audio/Video: Select this option to Allow/Deny Real Audio/Video. URL Filter...
  • Page 57 Active: Select Actived to enable URL Filter. URL Index: This is item number. URL: llow you to prevent users on your network from accessing particular websites by their URL.
  • Page 58 Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. BiPAC 5200 Series supports SNMP agent functionality which allows a manager station to manage and monitor the router through the network.
  • Page 59 Windows XP in order to support UPnP. Windows 2000 does not support UPnP. UPnP: Select this checkbox to activate UPnP. Be aware that anyone could use a UPnP application to open the web configurator's login screen without entering the BiPAC 5200 Series 's IP address...
  • Page 60 IP address of the router, which is assigned to you by your ISP. Dynamic DNS: Select this check box to use dynamic DNS. Service Provider: www.dyndns.org My Host Name: Type the domain name assigned to your BiPAC 5200 Series by your Dynamic DNS provider. E-mail Address: Type your e-mail address.
  • Page 61 4.4.6 CWMP TR-069 function are supported for the BiPAC 5200GR3/ 5200GR5 /5200SR3/ 5200R3 CWMP: Enable or Disable TR069 function URL: Type ACS server’s URL User Name:Type ACS server login username Password: Type ACS server login password Path: Type the path for Connection request Port: Type the port for Connection request Username: Type username for ACS server to make connection request Password: Type password for ACS server to make connection request...

  • Page 62: Maintenance

    4.5 Maintenance 4.5.1 Administrator In factory setting, the default password is admin, and that for user is also password. You can change the default password to ensure that someone cannot adjust your settings without your permission. Every time you change your password, please record the password and keep it at a safe place.

  • Page 63: Time Zone

    4.5.2 Time Zone The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network. Choose your local time zone. After a successful connection to the Internet, the router will retrieve the correct local time from the SNTP server you have specified.
  • Page 64 To upgrade the firmware of BiPAC 5200 Series, you should download or copy the firmware to your local environment first. Press the “Browse…” button to specify the path of the firmware file.
  • Page 65 DO NOT power down the router or interrupt the firmware upgrading while it is still in process. Improper operation could damage the router. Warning 4.5.4 SysRestart Click SysRestart with option Current Settings to reboot your router (and restore your last saved configuration).
  • Page 66 4.5.5 Diagnostics The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides...

  • Page 67: Status

    4.6 Status 4.6.1 Device Info This page displays the current information for the ADSL Router. It will display the Firmware version, LAN, WAN, and MAC address information. Device Information Firmware version: This is the Firmware version MAC Address: This is the MAC Address IP Address: LAN port IP address.
  • Page 68 Sub Net Mask: LAN port IP subnet mask. DHCP Server: LAN port DHCP role - Enabled, Relay or disabled Status: “Not connected” or “Connected” Virtual Circuit: There are eight groups of PVC can be defined. VPI: The valid range for the VPI is 0 to 255 VCI: The valid range for the VCI is 1 to 65535 Connection Type: Name of the WAN connection.

  • Page 69: System Log

    4.6.2 System Log Display system logs accumulated up to the present time. You can trace historical information with this function.
  • Page 70 4.6.3 Statistics Read-only information here includes port status and packet specific statistics. Also provided are "Transmit Statistics" and "Receive Statistics". Ethernet Interface: This field displays the type of port Transmit Frames: This field displays the number of frames transmitted in the last second.
  • Page 71 ADSL Transmit total PDUs: This field displays the number of total PDU transmitted in the last second. Transmit total Error Counts: This field displays the number of total error transmitted in the last second. Receive total PDUs: This field displays the number of total PDU received in the last second.
  • Page 72 Tx Errors Count: This field displays the number of errors frames transmitted in the last second. Tx Drops Count: This field displays the number of drops frames transmitted in the last second. Rx Frames Count: This field displays the number of frames received in the last Rx Errors Count: This field displays the number of errors frames received in the last second.

  • Page 73: Help

    4.7 Help...

  • Page 74: Problems Starting Up The Router

    If the ADSL2+ Router is not functioning properly, you can refer first to this chapter for simple troubleshooting before contacting your service provider. This could save your time and effort but if the symptoms persist, then consult your service provider. Problems starting up the router Problem None of the LEDs...

  • Page 75: Problems With The Lan Interface

    Frequent loss of ADSL linesync (disconnections). Problems with the LAN Interface Problem Can’t ping any PCs on the LAN. Ensure that all other devices connected to the same telephone line as your router (e.g. telephones, fax machines, analogue modems) have a line filter connected between them and the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified and licensed electrician), and ensure that all line filters are correctly...

  • Page 76: Appendix

    Product Support and Contact Information Most problems can be solved by referring to the Troubleshooting section in the User’s Manual. If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer where you purchased this product. Contact Billion WORLDWIDE http://www.billion.com...
