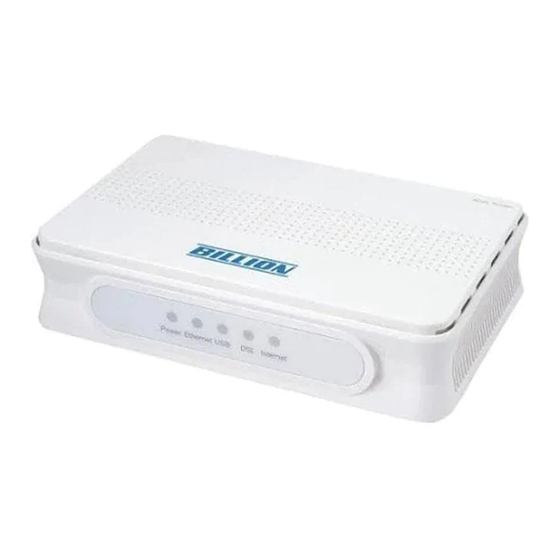

Billion BiPAC 5200S RC Series User Manual

Adsl2+ modem / router
Hide thumbs Also See for BiPAC 5200S RC Series:
Table of Contents

Advertisement

Quick Links

Download this manual
BiPAC 5200S RC Series
ADSL2+ Modem / Router

User Manual

Version released: 2.12.17.0(UE2.C3)3.12.17.0
Last revised date: 07-29-2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BiPAC 5200S RC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billion BiPAC 5200S RC Series

Summary of Contents for Billion BiPAC 5200S RC Series

  • Page 1: User Manual

    BiPAC 5200S RC Series ADSL2+ Modem / Router User Manual Version released: 2.12.17.0(UE2.C3)3.12.17.0 Last revised date: 07-29-2011...

  • Page 2: Table Of Contents

    1.3.1 BiPAC 5210S RC ....................5 1.3.2 BiPAC 5200S RD ....................5 1.3.3 BiPAC 5200S RC ....................6 Chapter 2 ..........................7 2.1 Important note for using the BiPAC 5200S RC Series...........7 2.2 Package Contents ....................8 2.3 Hardware Overview ....................9 2.3.1 BiPAC 5210S RC ....................9 2.3.2 BiPAC 5200S RC / BiPAC 5200S RD ...............
  • Page 3 4.2 Interface Setup .......................37 4.2.1 Internet ......................38 4.2.2 LAN ........................42 4.3 Advanced Setup .....................44 4.3.1 Firewall ......................44 4.3.2 Routing ......................45 4.3.3 NAT ........................47 4.3.4 ADSL .........................54 4.4 Access Management ....................55 4.4.1 ACL ........................55 4.4.2 Filter........................56 4.4.3 SNMP ........................60 4.4.4 UPnP .........................61 4.4.5 DDNS ........................62 4.5 Maintenance ......................63 4.5.1 Administration ....................63...

  • Page 4: Chapter 1

    Introduction the BiPAC 5200S RC Series 1.1 Introducing the BiPAC 5200S RC Series Welcome to the Billion BiPAC 5200S RC Series ADSL2+ Modem/Router. Your Billion router is an “all-in-one” unit, combining an ADSL modem, ADSL router and Ethernet network router, providing everything you need to get the machines on your network connected to the Internet over your ADSL broadband connection.
  • Page 5 your machine on the network. Second, it can block and redirect certain ports to limit the services that outside users can access. For example, to ensure that games and other Internet applications run properly, user can open some specific ports for outside users to access the internal services of the network.

  • Page 6: Features Of The Bipac 5200S Rc Series

    1.2 Features of the BiPAC 5200S RC Series ADSL Multi-Mode Standard Support downstream rate of up to 24 Mbps and upstream rate of up to 1 Mbps. It also supports rate management that allows ADSL subscribers to select an Internet access speed that suits their needs and budgets.
  • Page 7 Provide an easy way to map the domain name (a friendly name for users such as www.yahoo.com) and IP address. When a local machine sets its DNS server with this router IP address, every DNS conversion request packet from the PC to this router will be forwarded to the real DNS of the outside network.

  • Page 8: Application For The Bipac 5200S Rc Series

    1.3 Application for the BiPAC 5200S RC Series 1.3.1 BiPAC 5210S RC 1.3.2 BiPAC 5200S RD...

  • Page 9: Bipac 5200S Rc

    1.3.3 BiPAC 5200S RC...

  • Page 10: Chapter 2

    Installing the BiPAC 5200S RC Series 2.1 Important note for using the BiPAC 5200S RC Series Do not use the BiPAC 5200S RC Series device in high humidity or high temperatures. Do not use the same power source for the BiPAC 5200S RC Series as other equipment.

  • Page 11: Package Contents

    2.2 Package Contents BiPAC 5210S RC / 5200S RC / 5200S RD ADSL2+ Modem/Router CD-ROM containing the online manual RJ-11 ADSL/telephone Cable Ethernet (CAT-5 LAN) Cable USB Cable (For BiPAC 5210S RC only) Power adapter Quick Start Guide...

  • Page 12: Hardware Overview

    2.3 Hardware Overview 2.3.1 BiPAC 5210S RC Front LEDs Meaning Lit red when power is ON. Power Lit green when the system is ready. Lit when connected to an Ethernet de vice. Ethernet Lit green for both 10M and 100M. Blinking when data is Transmitted / Received.
  • Page 13 Rear Panel Port Meaning Connect the supplied RJ-11 (“telephone”) cable to this port when connecting to the ADSL/telephone network. Connect the USB cable to this port. Connect to a UTP Ethernet cable (Cat-5 or Cat-5e) to the Ethernet Ethernet port when connecting to a PC or an office/home network of 10Mbps or 100Mbps.

  • Page 14: Bipac 5200S Rc / Bipac 5200S Rd

    2.3.2 BiPAC 5200S RC / BiPAC 5200S RD Front LEDs Meaning Lit red when power is ON. Power Lit green when the system is ready. Lit when connected to an Ethernet device. Ethernet Lit green for both 10M and 100M. Blinking when data is Transmitted / Received.
  • Page 15 Rear Panel Port Meaning Connect the supplied RJ-11 (“telephone”) cable to this port when connecting to the ADSL/telephone network. Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to the Ethernet Ethernet port when connecting to a PC or an office/home network of 10Mbps or 100Mbps.

  • Page 16: Cabling

    LAN Links and ADSL line LEDs are lit. If they are not, verify that you are using the proper cables. Ensure that all other devices connected to the same telephone line as your Billion router (e.g. telephones, fax machines, analogue modems) have a line filter connected between them...

  • Page 17: Chapter 3

    Chapter 3 Basic Installation The router can be configured with your web browser. A web browser is included as a standard application in the following operating systems: Windows 7/98 / NT / 2000 / XP /Me/Vista, MAC, Linux, etc. The product provides a very easy and user-friendly interface for configuration.

  • Page 18: Configuring Pc In Windows 7

    3.1.1 Configuring PC in Windows 7 1. Go to Start. Click on Control Panel. 2. Then click on Network and Internet. 3. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel.
  • Page 19 5. Select Internet Protocol Version 4 (TCP/IPv4) then click Properties. 6. In the TCP/IPv4 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. 7. Click OK again in the Local Area Connection Properties window to apply the new configuration.

  • Page 20: Configuring Pc In Windows Vista

    3.1.2 Configuring PC in Windows Vista Go to Start. Click on Network. Then click on Network and Sharing Center at the top bar. When the Network and Sharing Center window pops up, select and click on Manage network connections on the left window column.
  • Page 21 Select Internet Protocol Version 4 (TCP/IPv4) then click Properties. In the TCP/IPv4 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration.

  • Page 22: Configuring Pc In Windows Xp

    3.1.3 Configuring PC in Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.

  • Page 23: Configuring Pc In Windows 2000

    3.1.4 Configuring PC in Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window click Properties. 4.

  • Page 24: Configuring Pc In Windows 98/Me

    3.1.5 Configuring PC in Windows 98/Me 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP/IP ->NE2000 Compatible, or the name of your Network Interface Card (NIC) in your PC. 3.

  • Page 25: Configuring Pc In Windows Nt4.0

    3.1.6 Configuring PC in Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click OK.

  • Page 26: Step-By-Step Installation

    3.2 Step-by-Step Installation Insert the CD-ROM into CD-ROM drive Execute Windows Utility The Welcome screen will appear, click Next 4. The Hardware Installation screen will appear. Four links are shown on the screen. Click them one by one and follow the guidelines to complete hardware installation.
  • Page 27 4.2 LAN connection 4.3 DSL Line connection 4.4 USB connection (Only available for 5210S RC)
  • Page 28 4.5 Filter connection 4.6 Splitter connection...
  • Page 29 5. When finished the Hardware Installation, click “Next” to proceed to next step, Network Card Selection. 6. Diagnostic screen. (If connection fails, the screen will show “FAIL”, please check your router if it is connected correctly.) 7. Click Next to enter Configuration Details 8.
  • Page 30 9. Please enter “Username” and “Password” as supplied by your ISP (Internet Service Provider) and click next. 10. Please configure the Wireless LAN setting and click next. (If your router does not support wireless, please ignore this screen and it will not appear.) 11.
  • Page 31 13. The IE browser will open up automatically when you finish installing.

  • Page 32: Factory Default Settings

    3.3 Factory Default Settings Before configuring your router, you need to know the following default settings. Web Interface Username: admin Password: admin LAN Device IP Settings IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 ISP setting in WAN site PPPoE DHCP server DHCP server is enabled.

  • Page 33: Lan And Wan Port Addresses

    3.4 LAN and WAN Port Addresses The parameters of LAN and WAN ports are preset in the factory. The default values are shown below. LAN Port WAN Port IP address 192.168.1.254 The PPPoE function is enabled to automatically 255.255.255.0 Subnet Mask get the WAN port configuration from the DHCP server function...

  • Page 34: Configuring With Your Web Browser

    Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and click “Go”, a user name and password prompt window will appear. The default username and password are “admin” and “admin” respectively. Congratulation! You are now successfully logged in to the BiPAC 5200S RC Series ADSL2+ Router!

  • Page 35: Chapter 4

    Advanced Setup (Firewall, Routing, NAT, ADSL) Access Management (ACL, Filter, SNMP, UPnP, DDNS) Maintenance (Administration, Time Zone, Firmware, SysRestart, Diagnositics) Status (Device Info, System Log, Statistics) Help Please see the relevant sections of this manual for detailed instructions on how to configure your Billion router.

  • Page 36: Quick Start

    4.1 Quick Start For detailed instructions on configuring WAN settings, see the Interface Setup section of this manual. The Quick Start Wizard is a useful and easy utility to help setup the device to connect to your ISP (Internet Service Provider) with only a few steps required. It will guide you step by step to configure the password, time zone, and WAN settings of your device.
  • Page 37 Step1. Set your new password. Step2: Choose your time zone.
  • Page 38 Step3: Set your Internet connection.
  • Page 39 Step4: Save settings of this ADSL Router.

  • Page 40: Interface Setup

    4.2 Interface Setup Click this item to access the following sub-items to configure the ADSL2+ router: Internet and LAN. These functions are described in the following sections.

  • Page 41: Internet

    4.2.1 Internet...
  • Page 42 ATM VC ATM settings are used to connect to your ISP. Your ISP provides VPI, VCI settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP. You need to activate the VC to take effect. For PVCs management, you can use ATM QoS to setup each PVC traffic line's priority.
  • Page 43 Encapsulation: ISP: Select the encapsulation type your ISP uses from the Encapsulation list. Choices vary depending on what you select in the Mode field. Dynamic IP: Select this option if your ISP provides you an IP address automatically. This option is typically used for Cable services. Please enter the Dynamic IP information accordingly.
  • Page 44 Get IP Address: Choose Static or Dynamic for the type of IP address you want to get. Static IP Address: Enter the IP address of ADSL Router in dotted decimal notation, for example, xx.xx.xx.xx. IP Subnet Mask: The default is 0.0.0.0. User can change it to other such as 255.255.255.0.Type the subnet mask assigned to you by your ISP (if given).

  • Page 45: Lan

    4.2.2 LAN A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building. Router Local IP IP Address: Enter the IP address of ADSL Router in dotted decimal notation, for example, 192.168.1.254 (factory default).
  • Page 46 Enable IGMP Snoop function. DHCP DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a server. DHCP: If set to Enable, your device can assign IP addresses, an IP default gateway and DNS servers to Windows 95, Windows NT and other systems that support the DHCP client.

  • Page 47: Advanced Setup

    4.3 Advanced Setup 4.3.1 Firewall Your router includes a firewall for controlling Internet access from your LAN and helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet.

  • Page 48: Routing

    4.3.2 Routing If you have another router with a LAN-to-LAN connection, you may create a static routing on the router that is the gateway to Internet. #: Item number. Dest IP: IP address of the destination network. Mask: The destination mask address. Gateway IP: IP address of the gateway or existing interface that this route uses.
  • Page 49 ADD Route Destination IP Address: This is the destination subnet IP address. IP Subnet Mask: A subnet mask allows IP networks to be subdivided for security and performance purposes. Gateway IP Address: This is the gateway IP address to which packets are to be forwarded.

  • Page 50: Nat

    4.3.3 NAT The NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a packet. The default setting is Dynamic NAPT. It provides dynamic Network Address Translation capability between LAN and multiple WAN connections, and the LAN traffic is routed to the appropriate WAN connections based on the destination IP addresses and Route Table.
  • Page 51 The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP address as the DMZ Host, all incoming packets which do not use a port number that is being used by any other Virtual Server entries will first be checked by the Firewall and NAT algorithms before they are passed to the DMZ host.
  • Page 52 connection attempts using specific ports to the PC on your network running the application. You will also need to use port forwarding if you want to host an online game server. The reason for this is that when using NAT, your publicly accessible IP address will be used by and point to your router, which then needs to deliver all traffic to the private IP addresses used by your PCs.
  • Page 53 Rule Index: Choose the rule number. Application: Choose the predefined rule from Application drop-down menu or enter a custom name. Protocol: Choose the Protocol Type, ALL, TCP or UDP. Start Port Number: Enter a port number as the beginning number of the range which you want to give to devices to access in this field.
  • Page 54 ALG Switch In the context of computer networking, an application-level gateway (also known as ALG or application layer gateway) consists of a security component that augments a firewall or NAT employed in a computer network. It allows customized NAT traversal filters to be plugged into the gateway to support address and port translation for certain application layer "control/data"...
  • Page 55 IP Address Mapping Rule Index: Choose the rule number. Rule Type: One-to-one: This is the mode that maps one local IP address to one global IP address. Note that port numbers do not change for the One-to-one NAT mapping type. Many-to-One: This is the mode that maps multiple local IP addresses to one global IP address.
  • Page 56 addresses, then enter 0.0.0.0 as the Local Start IP address and 255.255.255.255 as the Local End IP address. This field is N/A for One-to-one and Server mapping types. Public Start IP: This is the starting Inside Public IP Address. Enter 0.0.0.0 here if you have a dynamic IP address from your ISP.

  • Page 57: Adsl

    4.3.4 ADSL ADSL Mode: The default setting is Auto Sync-UP. This mode will automatically detect your ADSL, ADSL2+, ADSL2, G.dmt, G.lite, and T1.413. But in some areas, multimode cannot detect the ADSL line code well. If it is the case, please adjust the ADSL line code to G.dmt or T1.413 first.

  • Page 58: Access Management

    Active: Select Yes to active the ACL rule or No to disable ACL rule. Secure IP Address: The default 0.0.0.0 allows any client to use this service to remotely manage the BiPAC 5200S RC Series router. Type an IP address to restrict access to a client with a matching IP address.

  • Page 59: Filter

    4.4.2 Filter You can filter the packages by IP port, MAC and Application. Filter Type Filter Type Selection: There are three types of filter: “IP/MAC Filter”, “Application Filter”, and “URL Filter” that user can select for this connection. IP/MAC Filter Set Editing IP/MAC filter Set Index: This is item number...
  • Page 60 Interface: Select which channel (PVC) to configure. Direction: Select the access to the Internet (“Outgoing”) or from the Internet (“Incoming”) or Both. IP/MAC Filter Rule Editing IP/MAC Filter Rule Index: This is item number Rule Type: Choose “IP” or “MAC” rules Active: Select Yes from the drop down list box to enable IP filter rule.
  • Page 61 Application Filter Application Filter: Select this option to Activated/Deactivated the Application filter. ICQ: Select this option to Allow/Deny ICQ. MSN: Select this option to Allow/Deny MSN. YMSG: Select this option to Allow/Deny Yahoo messenger. Real Audio/Video: Select this option to Allow/Deny Real Audio/Video.
  • Page 62 URL Filter Active: Select Active to enable URL Filter. URL Index: This is item number. URL: llow you to prevent users on your network from accessing particular websites by their URL.

  • Page 63: Snmp

    Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. BiPAC 5200S RC Series supports SNMP agent functionality that allows a manager station to manage and monitor the router through the network.

  • Page 64: Upnp

    BiPAC 5200S RC Series so that they can communicate through the BiPAC 5200S RC series router, for example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device;...

  • Page 65: Ddns

    IP address of the router, which is assigned to you by your ISP. Dynamic DNS: Select this check box to use Dynamic DNS. Service Provider: www.dyndns.org My Host Name: Type the domain name assigned to your BiPAC 5200S RC series router by your Dynamic DNS provider. E-mail Address: Type your e-mail address.

  • Page 66: Maintenance

    4.5 Maintenance 4.5.1 Administration In factory setting, the default password is admin, and that for user is also admin. You can change the default password to ensure that someone cannot adjust your settings without your permission. Every time you change your password, please record the password and keep it at a safe place.

  • Page 67: Time Zone

    4.5.2 Time Zone The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network. Choose your local time zone. After a successful connection to the Internet, the router will retrieve the correct local time from the SNTP server you have specified.

  • Page 68: Firmware

    To upgrade the firmware of BiPAC 5200S RC Series, you should download or copy the firmware to your local environment first. Press the “Browse…” button to specify the path of the firmware file.

  • Page 69: Sysrestart

    If the upload was not successful, the following screen will appear. Click Back to go back to the Firmware screen. 4.5.4 SysRestart Click SysRestart with option Current Settings to reboot your router (and restore your last saved configuration). If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.

  • Page 70: Diagnostics

    4.5.5 Diagnostics The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides.

  • Page 71: Status

    4.6 Status 4.6.1 Device Info This page displays the current information for the ADSL Router. It will display the Firmware version, LAN, WAN, and MAC address information. Device Information Firmware version: This is the Firmware version. MAC Address: This is the MAC Address.
  • Page 72 IP Address: LAN port IP address. Sub Net Mask: LAN port IP subnet mask. DHCP Server: LAN port DHCP role - Enabled, Relay or disabled. Virtual Circuit: There are eight groups of PVC that can be defined. VPI: The valid range for the VPI is from 0 to 255 VCI: The valid range for the VCI is from 1 to 65535 Status: “Not connected”...

  • Page 73: System Log

    4.6.2 System Log Display system logs accumulated up to the present time. You can trace historical information with this function.

  • Page 74: Statistics

    4.6.3 Statistics Read-only information here includes port status and packet specific statistics. Also provided are "Transmit Statistics" and "Receive Statistics". Ethernet Interface: This field displays the type of port. Transmit Frames: This field displays the number of frames transmitted in the last second.
  • Page 75 ADSL Transmit total PDUs: This field displays the number of total PDU transmitted in the last second. Transmit total Error Counts: This field displays the number of total error transmitted in the last second. Receive total PDUs: This field displays the number of total PDU received in the last second.

  • Page 76: Help

    4.7 Help This help page provides you some useful messages such as the introductions of some concepts and some guide. When some problems are encountered, you can turn to this page for help. For example, if you don’t understand what is Quick Start, you can go to this page, click on Quick Start, then you’ll see some messages about it, and understand it quickly.

  • Page 77: Chapter 5

    Chapter 5 Troubleshooting If the ADSL2+ Router is not functioning properly, you can refer first to this chapter for simple troubleshooting before contacting your service provider. This could save your time and effort but if the symptoms persist, then consult your service provider. Problems starting up the router Problem Corrective Action...

  • Page 78: Problems With The Wan Interface

    Problems with the WAN Interface Problem Corrective Action Initialization of the Ensure that the telephone cable is connected properly from the PVC connection ADSL port to the wall jack. The ADSL LED on the front panel of (“linesync”) failed. the router should be on. Check that VPI, VCI, encapsulation type and type of multiplexing settings are the same as those provided by your ISP.

  • Page 79: Appendix

    Manual to solve the problems you have encountered. If you cannot find solutions to your problems from the Troubleshooting section of the manual, please contact the dealer where you purchased this product for assistance. Contact Billion WORLDWIDE http://www.billion.com MAC OS is a registered Trademark of Apple Computer, Inc.
