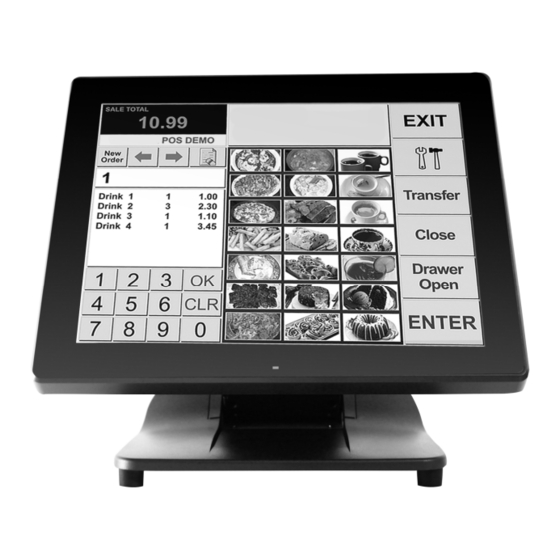

PS-3415/3415E
Fanless LCD Touch Terminal
User Manual
Product Features
Fanless terminal
Intel® Celeron® Bay Trail N2807 Celeron processor, up to
2.16 GHz, Dual Core, 1MB Cache for PS-3415 /
Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
for PS-3415E
Foldable base that allows PS Series to be configured into
different configurations
Projected-capacitive touch
Integrated structure for side mount upgrade kit:
SA-105/205/305/405/505; back mount display: LM-6807U /
6810U and PD-360R/360UE/2609UE/6807U;
40-key dynakey attachment with MSR or RFID option:
KP-500
Water resistant structure designed for easy cleaning
13110902020 Ver. A0
Package Contents
Fanless LCD touch terminal (x 1)
Power adaptor
Power cord
User Manual
Recovery DVD
(for pre-loaded OS model only)
1
(x 1)
(x 1)
(x 1)
(x 1)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX PS Series
Summary of Contents for POSIFLEX PS Series
- Page 1 2.16 GHz, Dual Core, 1MB Cache for PS-3415 / Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) for PS-3415E Foldable base that allows PS Series to be configured into different configurations Projected-capacitive touch Integrated structure for side mount upgrade kit: SA-105/205/305/405/505;...
- Page 2 Terminal from shipping mode to operation mode In consideration of proper packaging, before shipping, the terminal is folded, staying in shipping mode. Thus, when receiving the product, you will find that the terminal is well folded, as shown below. Before operating this terminal, unfold it and make this terminal rise in operation mode by referring to the following steps.
- Page 3 3. Place this terminal on a flat table. 4. Tilt this terminal to a degree in the direction as indicated by the arrow below. Terminal from operation mode to shipping mode To fold this terminal, refer to the following steps. Here, an equivalent model with GEN 7 base is taken below for example.
- Page 4 3. Push the base-folding lever in the direction as indicated by the arrow below (1). Then, the display will be loosen and go down (2). 4. When the display goes down to a degree, loose the base- folding lever, as shown in the direction as indicated by the arrow below.
- Page 5 6. Put back the cable cover. Views of the PS-3415/3415E Front View LCD Touch Panel Base Stand Rear View Rear I/O Cover HDD Cover Display Screw Hole Hinge for LCD Neck Cover Cable Cover Cable Exit...
- Page 6 Left Side View Right Side View Power Button Brightness Adjustment Button “+” MSR Port Cover Brightness Adjustment Button “-” Bottom View Bottom I/O Cover View of I/O Interface Top I/O Ports Rear I/O Ports Parallel (LPT) Port COM4 Port Connector USB 2.0 Port PS/2_KB Pin Header The top I/O ports are provided for COM-based and USB-based peripheral...
- Page 7 Bottom I/O Ports RJ45 LAN Port USB 2.0 Port COM Port VGA Port (COM3/COM2/COM1) RJ11 Cash Drawer Port 12VDC-IN Power Jack Installing Optional Upgrade Kits and Peripherals PS-3415/3415E can work with multiple optional upgrade kits and peripheral devices, such as magnetic stripe reader (MSR), LCD monitor, cash drawer and the like.
- Page 8 Connecting Power Adapter and I/O Cables Before connecting power adapter and I/O cables to the I/O ports of PS series terminal, please route and arranging the cables. Refer to the following step-by-step instruction of cable routing and arrangement for the details. Here, an equivalent model with GEN 7 base is taken below for example.
- Page 9 4. Determine that the terminal is tilted to the end, as shown in the right figure. 5. Press the circled section with two thumbs and pull by force the two sides of the locking hook with two forefingers as indicated by the arrow.
- Page 10 8. Make the connector, which will be connected to the I/O port of the terminal, pass through the cable passage of base stand. 9. Push and tilt the terminal to the end in the direction as shown by the arrow. 10.
- Page 11 12. Cover the bottom I/O interface and gather the I/O cables to the circled cable arrangement area, as shown below. 13. Push and tilt the terminal to the end in the direction as shown by the arrow. 14. Arrange well the I/O cable located at the area of neck cover.
-
Page 12: Power Led Indicator
16. Shield the I/O cable exposure area with the cable cover. Powering ON the PS-3415/3415E After connecting the power cable to the power jack of the terminal, press the power button to power on the terminal. To power it off, press the power button again. -
Page 13: Installing An Operating System
Installing an Operating System This product is highly professional equipment. Therefore, we do NOT encourage you to install any operating system into this machine without professional assistance. We shall not be responsible for any technical support to questions on this aspect. We suggest that you contact your dealer for OS installation. -
Page 14: Specifications
5, 4 on bottom I/O plate + 1 on top I/O plate Port LAN Port 10 / 100 / 1000 Mb x 1 VGA x 1, 12V support for Posiflex monitors Display Port CR Port 1, control 2 CR via optional Y-cable... - Page 15 <MEMO>...
- Page 16 <MEMO>...
