PS-6215/6216
LCD Touch Terminal
User Manual

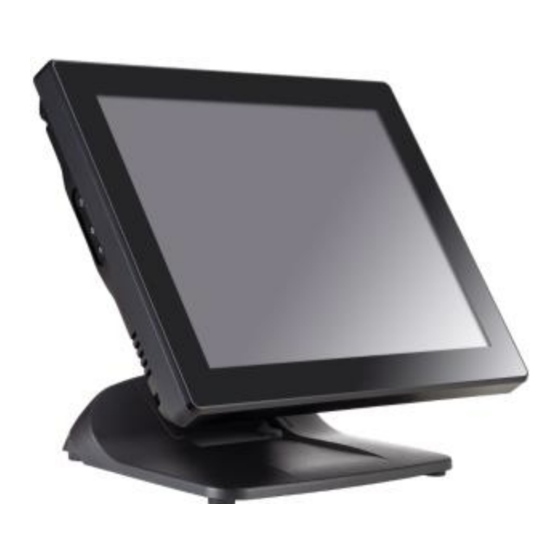

PS-6215
Package Contents
LCD touch terminal..........................................................(x1)
Power adaptor.................................................................(x1)
Power cord.....................................................................(x1)
Recovery DVD...............................................................(x1)
(for pre-loaded OS model only)
※ The appearance of the product may be somewhat different from that of the
actual product, so the appearance of this product should be based on that of
physical products. The contents in this manual may be updated at any time
without prior notice.
SOME IMPORTANT NOTES
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
PS-6216
1
13110909010 Ver. A0

Advertisement

loading
Need help?

Need help?

Do you have a question about the PS-6215 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX PS-6215

  • Page 1 PS-6215/6216 LCD Touch Terminal User Manual PS-6216 PS-6215 Package Contents  LCD touch terminal……………………….……………….………..(x1)  Power adaptor…………………………………………...…………..(x1)  Power cord………………………………………………………..(x1)  Recovery DVD………………………………………………………(x1) (for pre-loaded OS model only) ※ The appearance of the product may be somewhat different from that of the actual product, so the appearance of this product should be based on that of physical products.
  • Page 2 AVERTISSEMENT CE CLASSE A Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement résidentiel, cet équipement peut provoquer des interférences radio. WARRANTY LIMITS Warranty will terminate automatically when the machine is opened by any person other than the authorized technicians.
  • Page 3 Terminal from shipping mode to operation mode In consideration of proper packaging, before shipping, the terminal is folded, staying in shipping mode. Thus, when receiving the product, you will find that the terminal is well folded, as shown below. Before operating this terminal, unfold it and make this terminal rise in operation mode by referring to the following steps.
  • Page 4 4. Tilt this terminal to a degree in the direction as indicated by the arrow below. 5. Remove the cable cover from the base. 6. Fix the base with two #/6/32 screws. 7. Push the cable cover back to the base. Terminal from operation mode to shipping mode To fold this terminal, refer to the following steps.
  • Page 5 2. Carefully hold the lower rim of the display. 3. Push the base-folding lever in the direction as indicated by the arrow below (1). Then, the display will be loosen and go down (2). 4. When the display goes down to a degree, loose the base-folding lever, as shown in the direction as indicated by the arrow below.
  • Page 6: Front View

    6. Put back the cable cover. Overviews of the PS-6215/6216 Front View P-CAP Touch Panel LED Indicator Gen 7 Base PS-6215 PS-6216 Rear View Rear I/O Cover Display Screw Hole Hinge for LCD Neck Cover Cable Cover Cable Exit...
  • Page 7: Left Side View

    Left Side View Right Side View Power Button Brightness Adjustment Button “+” Side Attachment Cover Brightness Adjustment Button “-” Bottom View Bottom I/O Cover View of I/O Interface Top I/O Ports COM4 Port USB 2.0 Port ※ The top I/O ports are provided for COM-based and USB-based peripheral devices, for example, customer display.
  • Page 8 RJ45 LAN port HDMI port Installing Optional Upgrade Kits and Peripherals PS-6215/6216 can work with multiple optional upgrade kits and peripheral devices, such as magnetic stripe reader (MSR), LCD monitor, cash drawer and the like. Before installing an optional upgrade kit and/or peripheral device, make sure...
  • Page 9 2. Pull out the cable cover. Pull out 3. Push and tilt the terminal to the end in the direction as shown by the arrow. Then determine that the terminal is tilted to the end, as shown in the right figure. 4.
  • Page 10 6. Tilt the terminal slightly at a little angle in the direction as shown by the arrow, making cables easily pass through the cable passage. Cable Passage 7. Make the connector, which will be connected to the I/O port of the terminal, pass through the cable passage of base stand.
  • Page 11 10. Connect the connector of the power adapter to the 12VDC-IN power jack. 11. Cover the bottom I/O interface and gather the I/O cables to the circled cable arrangement area, as shown below. 12. Push and tilt the terminal to the end in the direction as shown by the arrow.
  • Page 12 14. Shield the I/O cable arrangement area on the neck of the base stand with the neck cover. 15. Shield the I/O cable exposure area with the cable cover. CAUTION: On doing insertion or extraction of a cable connector, please always hold the connector head itself instead of pulling the cable wire.
  • Page 13: Power Led Indicator

    Operating System Recovery For the PS-6215/6216 main system preloaded with an operating system on HDD or SSD, We provide a recovery DVD shipped with the main system for the preloaded operating system. The system integrator shall take care of software restoration after the OS is recovered.
  • Page 14: Specifications

    1, control 2 CR Audio Buzzer + 1 x internal 2W speaker (Optional) Expansion Slot 1 x M.2 (M.2 2230 / E Key) PS-6215: 371.3 x 252 x 325.2 mm Mechanical Dimension PS-6216: 371.3 x 252 x 290.4 mm PS-6215: 5.86 kg Net Weight PS-6216: 4.7 kg...
  • Page 15: Outline Dimension

    Outline Dimension PS-6215 PS-6216...
  • Page 16 <MEMO>...
