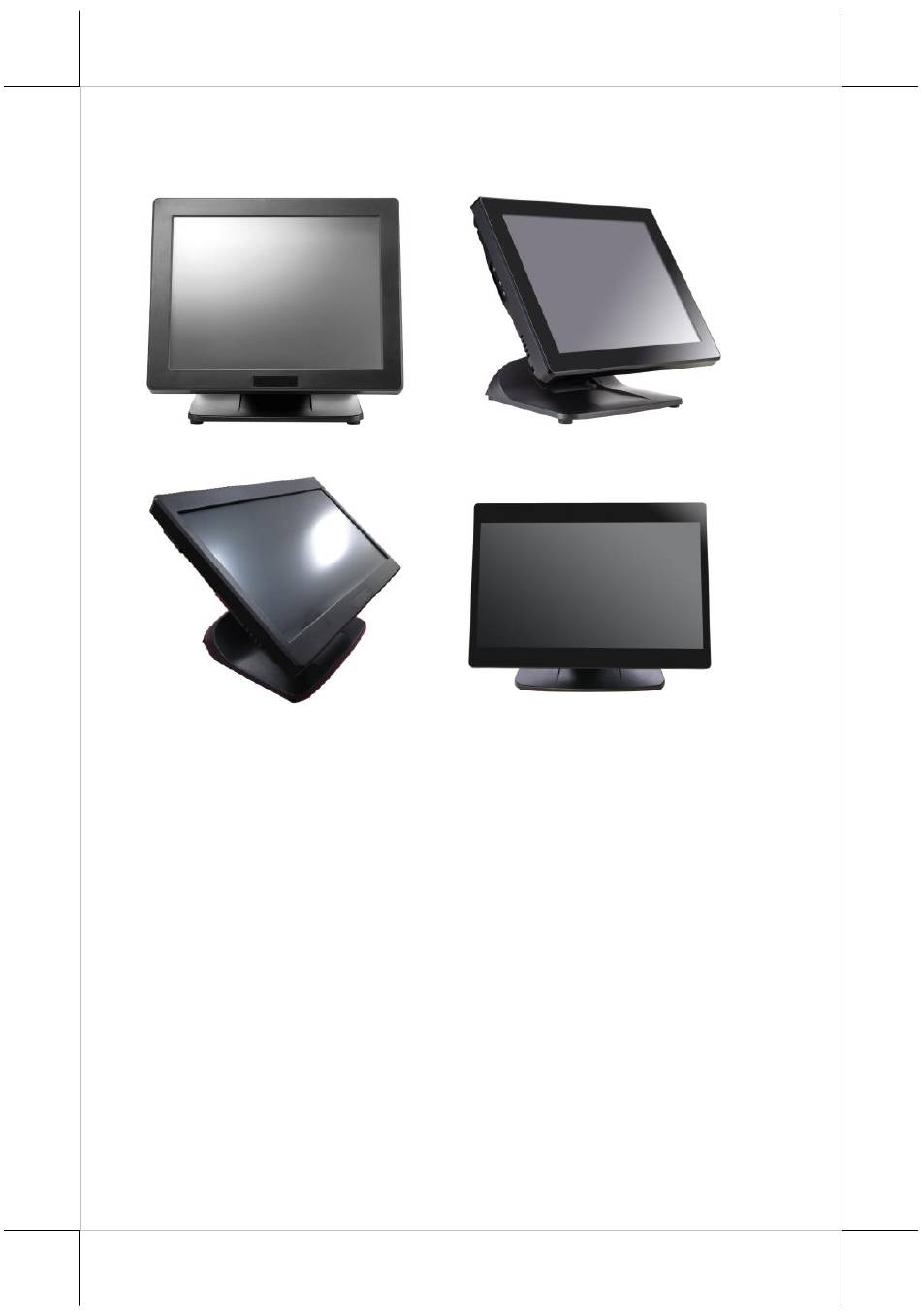

PS-3515G2H/3516G2H/3615G2H/3616G2H Fanless LCD Touch Terminal User Manual PS-3515G2H PS-3615G2H PS-3616G2H PS-3516G2H Package Contents Fanless LCD touch terminal ……………………………..(x1) Power adaptor…………………………………………..(x1) Power cord……………………………………………...(x1) User Manual…………………………………………….(x1) Recovery DVD…………………………………………(x1) (for pre-loaded OS model only) ※ The appearance of the product may be somewhat different from that of the actual product, so the appearance of this product should be based on that of physical products.
Page 2
SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment.
Page 3
SAFETY INSTRUCTIONS This equipment is not suitable for use in locations where children are likely to be present. CONSIGNES DE SÉ CURITÉ Cet équipement ne convient pas à une utilisation dans des endroits où des enfants sont susceptibles d'être presents. WARNING Power cord shall be connected to a socket-outlet with earthing connection.
Page 4
Terminal from shipping mode to operation mode In consideration of proper packaging, before shipping, the terminal is folded, staying in shipping mode. Thus, when receiving the product, you will find that the terminal is well folded, as shown below. Before operating this terminal, unfold it and make this terminal rise in operation mode by referring to the following steps.
Page 5
4. Tilt this terminal to a degree in the direction as indicated by the arrow below. 5. Remove the cable cover from the base. 6. Fix the base with two #/6/32 screws. 7. Push the cable cover back to the base. Terminal from operation mode to shipping mode To fold this terminal, refer to the following steps.
Page 6
2. Carefully hold the lower rim of the display. 3. Push the base-folding lever in the direction as indicated by the arrow below (1). Then, the display will be loosen and go down (2). 4. When the display goes down to a degree, loose the base-folding lever, as shown in the direction as indicated by the arrow below.
Page 7
6. Put back the cable cover. Overviews of the PS-35xxG2H/36xxG2H Front View Resistive Touch Panel LED Indicator Gen 7 Base PS-3515G2H PS-3516G2H P-CAP Touch Panel LED Indicator Gen 7 Base PS-3615G2H PS-3616G2H...
Page 8
Rear View Rear I/O Cover Display Screw Hole Hinge for LCD Neck Cover Cable Cover Cable Exit Left Side View Right Side View Power Button Brightness Adjustment Button “+” Side Attachment Cover Brightness Adjustment Button “-” Bottom View Bottom I/O Cover...
Page 9
Combo Jack 12V DC-IN Power Jack Installing Optional Upgrade Kits and Peripherals PS-3515G2H/3516G2H/3615G2H/3616G2H can work with multiple optional upgrade kits and peripheral devices, such as magnetic stripe reader (MSR), LCD monitor, cash drawer and the like. Before installing an optional upgrade kit and/or peripheral device, make sure...
Page 10
Connecting Power Adapter and I/O Cables Before connecting power adapter and I/O cables to the I/O ports of PS series terminal, please route and arranging the cables. Refer to the following step-by- step instruction of cable routing and arrangement for the details. Here, an equivalent model with GEN 7 base is taken below for example.
Page 11
4. Press the circled section with two thumbs and pull by force the two sides of the locking hook with two forefingers as indicated by the arrow. 5. Remove the neck cover from the base stand. 6. Tilt the terminal slightly at a little angle in the direction as shown by the arrow, making cables easily pass through the cable passage.
Page 12
8. Push and tilt the terminal to the end in the direction as shown by the arrow. 9. Remove the bottom I/O cover with your forefinger inserting the middle hole of the cover. 10. Connect the connector of the power adapter to the 12VDC-IN power jack.
Page 13
12. Push and tilt the terminal to the end in the direction as shown by the arrow. 13. Arrange well the I/O cable located at the area of neck cover. 14. Shield the I/O cable arrangement area on the neck of the base stand with the neck cover.
Page 14
Le cordon d'alimentation doit être connecté à une prise de courant avec mise à la terre. Powering ON the PS-3515G2H /3516G2H /3615G2H /3616G2H After connecting the power cable to the power jack of the terminal, press the power button to power on the terminal.
Page 15
Operating System Recovery For the PS-3515G2H/3516G2H/3615G2H/3616G2H main system preloaded with an operating system on SSD, we provide a recovery DVD shipped with the main system for the preloaded operating system. The system integrator shall take care of software restoration after the OS is recovered.
Page 16
7th generation foldable base stand Expansion Slot 1 x M.2 (M.2 2230 / E Key) Mechanical PS-3515G2H: 372 x 252.7 x 320 mm PS-3516G2H: 372 x 252.7 x 291.4 mm Dimension PS-3615G2H: 372 x 252.7 x 320 mm PS-3616G2H: 372 x 252.7 x 291.4 mm PS-3515G2H: 5.86 kg...
