PS-3216A

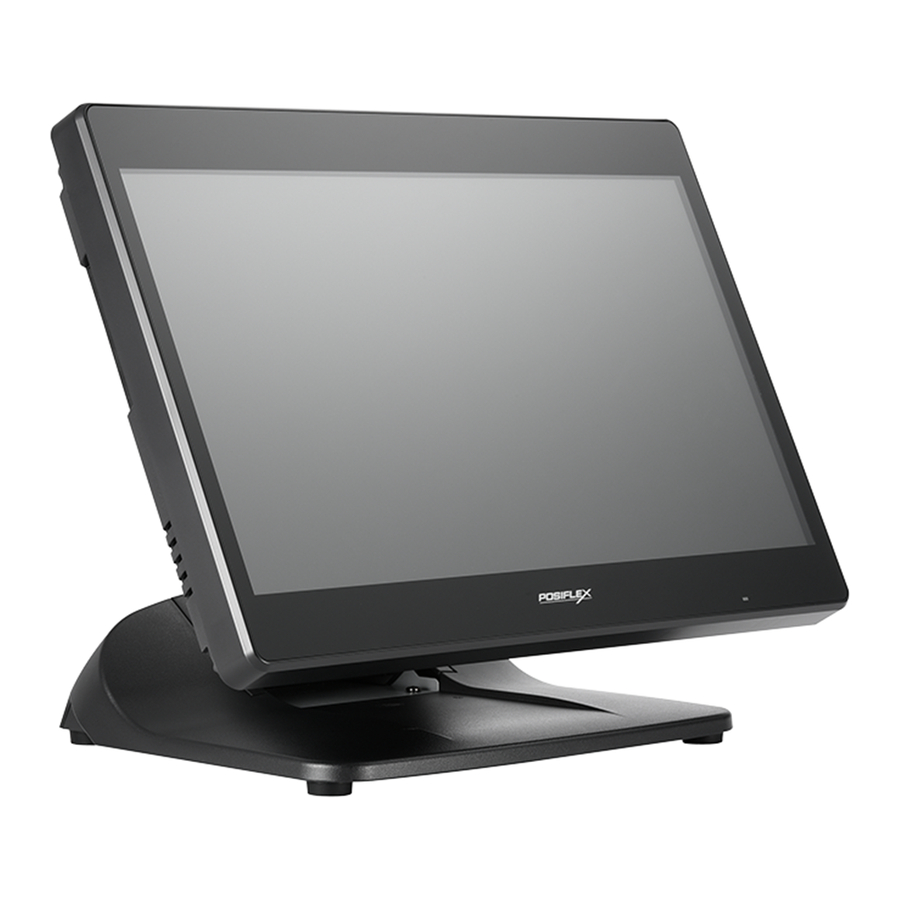

Fanless LCD Touch Terminal
User Manual
※ The appearance of the product may be somewhat different from that of
the actual product, so the appearance of this product should be based
on that of physical products. The contents in this manual may be
updated at any time without prior notice.
13110903010 Ver. A0
http://www.posiflex.com
Package Contents
Fanless LCD touch terminal (x1)
Power adaptor
Power cord
User Manual
1
(x1)
(x1)
(x1)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX PS-3216A
Summary of Contents for POSIFLEX PS-3216A

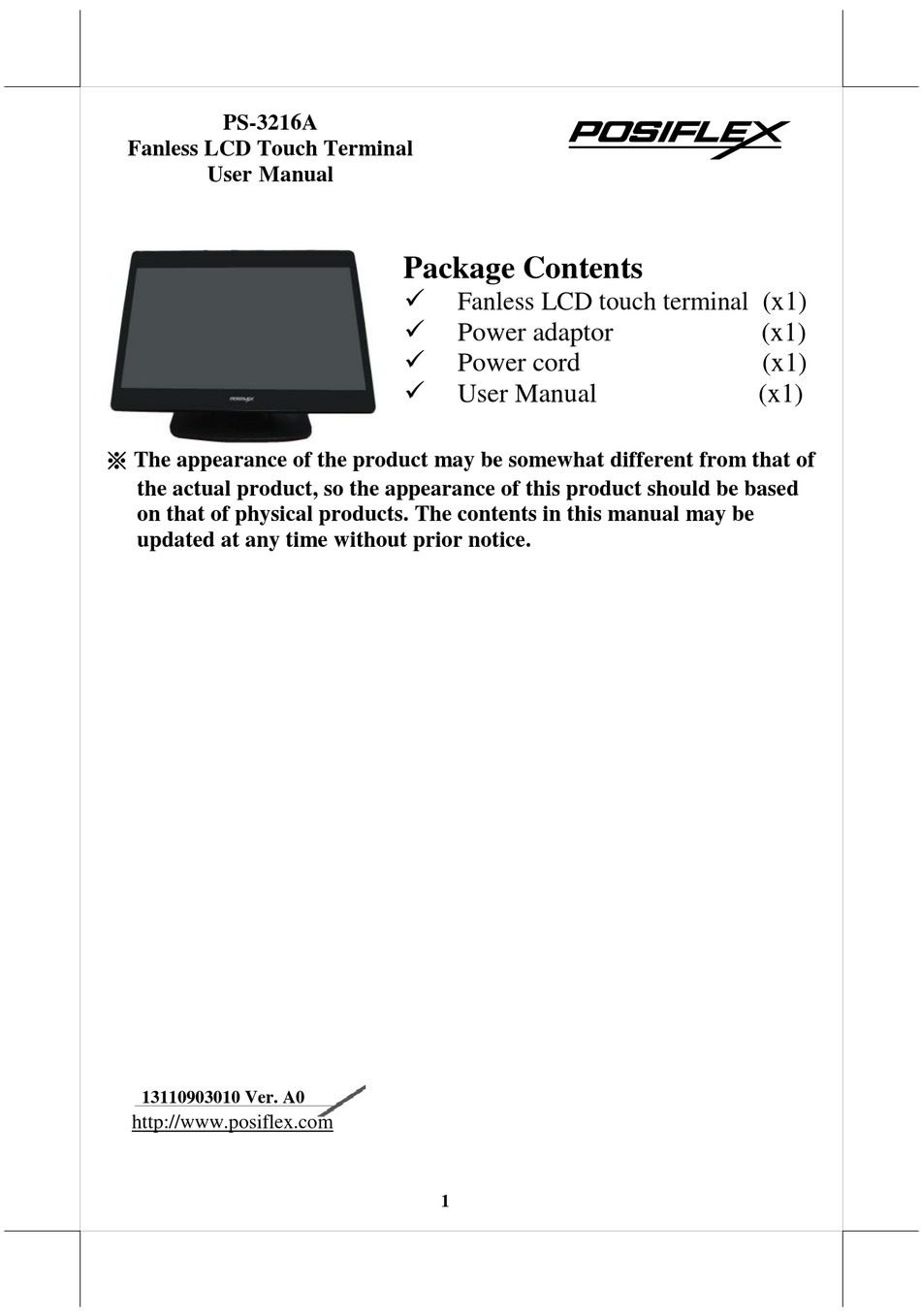

- Page 1 PS-3216A Fanless LCD Touch Terminal User Manual Package Contents Fanless LCD touch terminal (x1) Power adaptor (x1) Power cord (x1) User Manual (x1) ※ The appearance of the product may be somewhat different from that of the actual product, so the appearance of this product should be based on that of physical products.
- Page 2 SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment.
- Page 3 種情況下，使用者會被要求採取某些適當的對策。 SAFETY INSTRUCTIONS This equipment is not suitable for use in locations where children are likely to be present. CONSIGNES DE SÉ CURITÉ Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des enfants. BATTERY CAUTION NOTES ...
- Page 4 Terminal from shipping mode to operation mode In consideration of proper packaging, before shipping, the terminal is folded, staying in shipping mode. Thus, when receiving the product, you will find that the terminal is well folded, as shown below. Before operating this terminal, unfold it and make this terminal rise in operation mode by referring to the following steps.
- Page 5 3. Place this terminal on a flat table. 4. Tilt this terminal to a degree in the direction as indicated by the arrow below. Terminal from operation mode to shipping mode To fold this terminal, refer to the following steps. Here, an equivalent model with GEN 7 base is taken below for example.
- Page 6 3. Push the base-folding lever in the direction as indicated by the arrow below (1). Then, the display will be loosen and go down (2). 4. When the display goes down to a degree, loose the base- folding lever, as shown in the direction as indicated by the arrow below.
-
Page 7: Rear View
6. Put back the cable cover. Views of the PS-3216A Front View P-CAP Touch Panel LED Indicator Gen 7E Base Rear View Rear I/O Cover Display Screw Hole Hinge for LCD Neck Cover Cable Cover Cable Exit... -
Page 8: Left Side View
Left Side View Right Side View Power Button Brightness Adjustment Button “+” MSR Port Cover Brightness Adjustment Button “-” Bottom View Bottom I/O Cover View of I/O Interface Top I/O Ports 12V DC-OUT Power Jack USB 2.0 Port (for Second Display) HDMI Port ※... - Page 9 RJ11 Cash Drawer Port 12VDC-IN Power Jack Installing Optional Upgrade Kits and Peripherals PS-3216A can work with multiple optional upgrade kits and peripheral devices, such as magnetic stripe reader (MSR), LCD monitor, cash drawer and the like. Before installing an optional upgrade kit and/or peripheral device,...
- Page 10 1. Press the circled section of the cable cover with your thumb. 2. Pull out the cable cover. Pull out 3. Push and tilt the terminal to the end in the direction as shown by the arrow. Then determine that the terminal is tilted to the end, as shown in the right figure.
- Page 11 4. Press the circled section with two thumbs and pull by force the two sides of the locking hook with two forefingers as indicated by the arrow. 5. Remove the neck cover from the base stand. 6. Tilt the terminal slightly at a little angle in the direction as shown by the arrow, making cables easily pass through the cable passage.
- Page 12 8. Push and tilt the terminal to the end in the direction as shown by the arrow. 9. Remove the bottom I/O cover with your forefinger inserting the middle hole of the cover. 10. Connect the connector of the power adapter to the 12VDC-IN power jack.
- Page 13 12. Push and tilt the terminal to the end in the direction as shown by the arrow. 13. Arrange well the I/O cable located at the area of neck cover. 14. Shield the I/O cable arrangement area on the neck of the base stand with the neck cover.
-
Page 14: Power Led Indicator
Le cordon d'alimentation doit être connecté à une prise de courant avec mise à la terre. Powering ON the PS-3216A After connecting the power cable to the power jack of the terminal, press the power button to power on the terminal. -
Page 15: Specifications
-20°C - 70°C, 10%RH - 90%RH Condition Regulatory Regulation FCC/CE/LVD Rules ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the PS-3216A, please check this model from Posiflex Global Website. - Page 16 <MEMO>...
