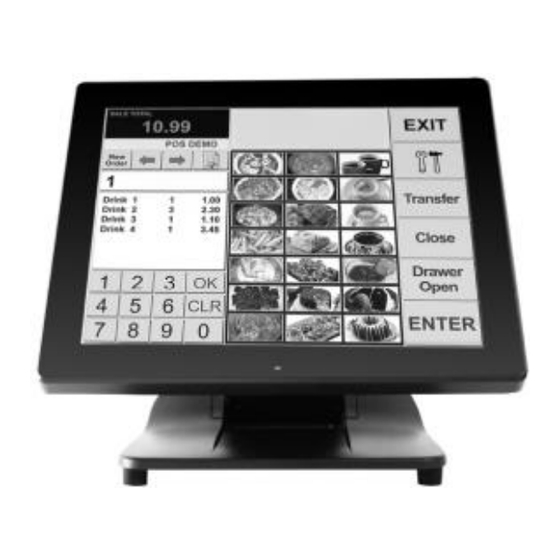

Fanless lcd touch terminal
Hide thumbs Also See for PS-3415:

Advertisement

Quick Links

PS-3415/3415E
Fanless LCD Touch Terminal
User Manual
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than
the authorized technicians. The user should consult his/her dealer for the problem happening.
Warranty voids if the user does not follow the instructions in application of this merchandise.
The manufacturer is by no means responsible for any damage or hazard caused by improper
application.
警告使用者
此為甲類資訊技術設備,於居住環境中使用時,可能會造成射頻擾動,在此種情況
下,使用者會被要求採取某些適當的對策。
SAFETY INSTRUCTIONS
This equipment is not suitable for use in locations where children are likely to be present.
13110902040 Ver. C0
Package Contents
Fanless LCD touch terminal.......(x 1)
Power adaptor........................(x 1)
Power cord...........................(x 1)
User Manual..........................(x 1)
Recovery DVD......................(x 1)
(for pre-loaded OS model only)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-3415 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX PS-3415

  • Page 1 PS-3415/3415E Fanless LCD Touch Terminal User Manual Package Contents  Fanless LCD touch terminal…….(x 1)  Power adaptor…………………...(x 1)  Power cord………………………(x 1)  User Manual……………………..(x 1)  Recovery DVD………………….(x 1) (for pre-loaded OS model only) FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 2: Product Features

     Fanless terminal  Intel® Celeron® Bay Trail J1800 Celeron processor, up to 2.58 GHz, Dual Core, 1MB Cache for PS-3415 / Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) for PS- 3415E  Foldable base that allows PS Series to be configured into different configurations ...
  • Page 3 Views of the PS-3415/3415E Front View Rear View Left Side View Right Side View Bottom View...
  • Page 4 Positioning your POS for a Perfect Viewing Angle The adjustable Gen7 base is designed to help you determine an ideal position for PS-3415/3415E using its unique tilt adjustment mechanism. As the below figures suggest, Gen7 base basically provides three standard positioning solutions for your terminal: Flat Folded mode,...
  • Page 5 Low Profile mode Full Extended mode In general, PS-3415/3415E will be set up beforehand in Flat Folded mode and then packaged into the box for shipping. After it is unpacked, you may re-adjust the terminal in either Low Profile mode or Full Extended mode according to your situation.
  • Page 6 Support the screen with one hand holding onto its bottom edge. Then, while pulling the lever backwards, move the display upwards until the lever is snapped into the lower hook to raise the screen as shown in the below figure. Lower hook Lever...
  • Page 7 Return your terminal back to Flat Folded mode from Full Extended mode. Remove the cable cover from the base. Remove the two screws from the base. Remove the two screws. Tilt your screen in a horizontal position. Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, move the display downwards until the lever is lifted off the hook as shown in the figure.
  • Page 8 LCD panel while setting up the tilt angle. Installing Optional Upgrade Kits and Peripherals PS-3415/3415E can work with multiple optional upgrade kits and peripheral devices, such as magnetic stripe reader (MSR), LCD monitor, cash drawer and the like.
  • Page 9 Connecting Power Adapter and I/O Cables Before connecting power adapter and I/O cables to the I/O ports of PS series terminal, please route and arranging the cables. Refer to the following step-by- step instruction of cable routing and arrangement for the details. Here, an equivalent model with GEN 7 base is taken below for example.
  • Page 10 4. Determine that the terminal is tilted to the end, as shown in the right figure. 5. Press the circled section with two thumbs and pull by force the two sides of the locking hook with two forefingers as indicated by the arrow. 6.
  • Page 11 8. Make the connector, which will be connected to the I/O port of the terminal, pass through the cable passage of base stand. 9. Push and tilt the terminal to the end in the direction as shown by the arrow. 10.
  • Page 12 12. Cover the bottom I/O interface and gather the I/O cables to the circled cable arrangement area, as shown below. 13. Push and tilt the terminal to the end in the direction as shown by the arrow. 14. Arrange well the I/O cable located at the area of neck cover.
  • Page 13: Power Led Indicator

    Le cordon d'alimentation doit être connecté à une prise de courant avec mise à la terre. Powering ON the PS-3415/3415E After connecting the power cable to the power jack of the terminal, press the power button to power on the terminal. To power it off, press the power button again.
  • Page 14: Installing An Operating System

    We suggest that you contact your dealer for OS installation. Operating System Recovery For the PS-3415/3415E main system preloaded with an operating system on HDD, We provide a recovery DVD shipped with the main system for the preloaded operating system. The system integrator shall take care of software restoration after the OS is recovered.
  • Page 15: Specifications

    Specifications System PS-3415: Configuration Intel® Celeron J1800, 2C, 2.41GHz/2.58GHz (Burst), 1M Cache (Default) Intel® Celeron N2807, 2C, 1.58GHz/2.16GHz Processor (Burst), 1M Cache (Option) PS-3415E: Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) System 2GB DDR3L 1333MHz default Memory SATA x 1 + mSATA x 1;...
  • Page 16 <MEMO>...
