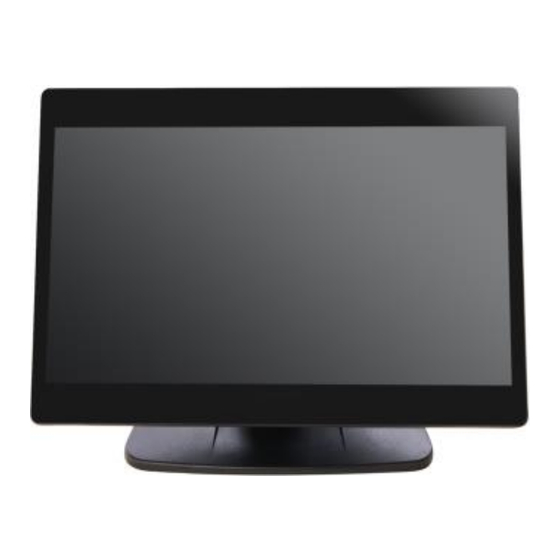

Fanless lcd touch terminal

Advertisement

Quick Links

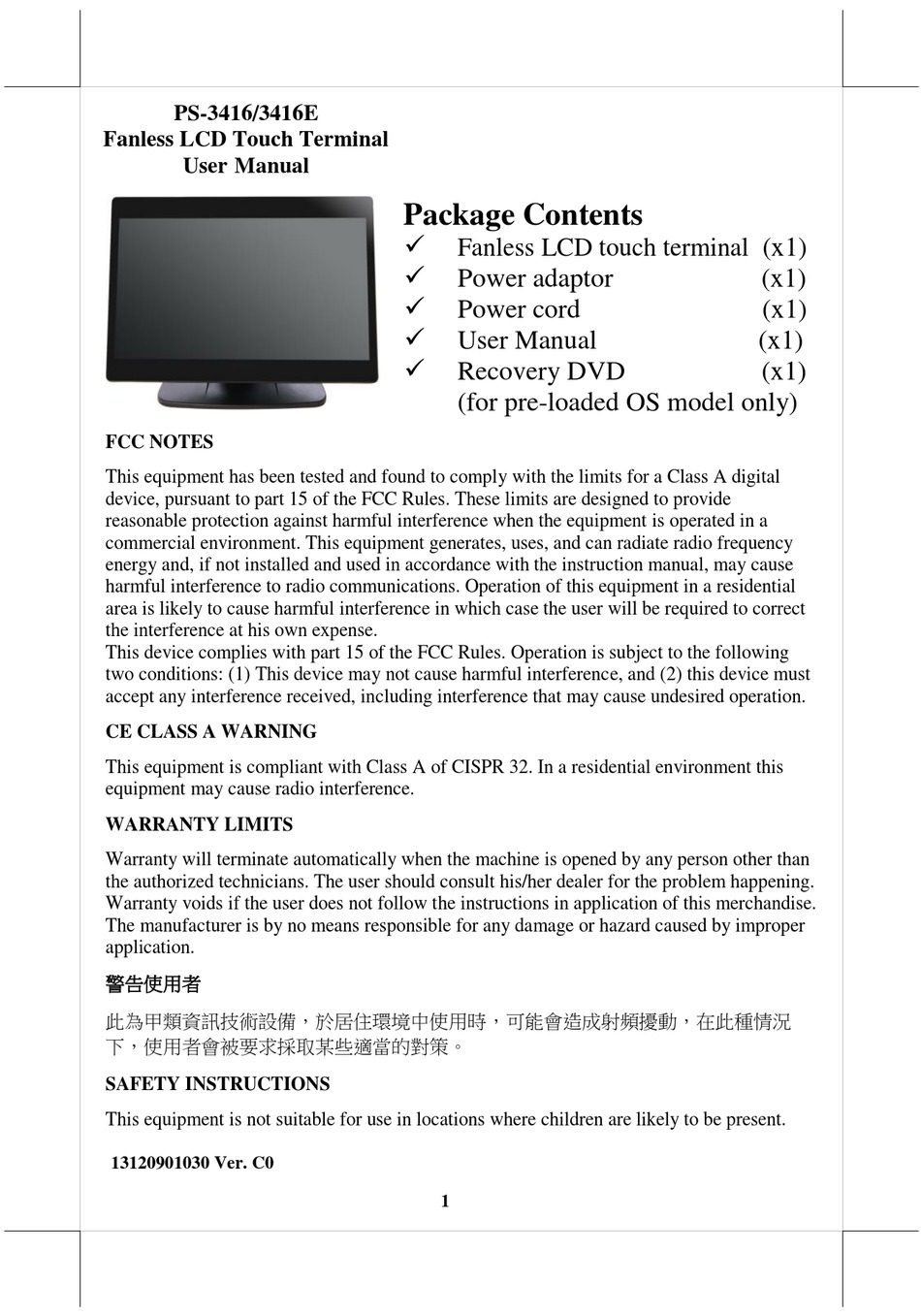

PS-3416/3416E
Fanless LCD Touch Terminal
User Manual
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than
the authorized technicians. The user should consult his/her dealer for the problem happening.
Warranty voids if the user does not follow the instructions in application of this merchandise.
The manufacturer is by no means responsible for any damage or hazard caused by improper
application.
警告使用者
此為甲類資訊技術設備,於居住環境中使用時,可能會造成射頻擾動,在此種情況
下,使用者會被要求採取某些適當的對策。
SAFETY INSTRUCTIONS
This equipment is not suitable for use in locations where children are likely to be present.
13120901030 Ver. C0
Package Contents
Fanless LCD touch terminal (x1)
Power adaptor
Power cord
User Manual
Recovery DVD
(for pre-loaded OS model only)
1
(x1)
(x1)
(x1)
(x1)

Advertisement

loading
Need help?

Need help?

Do you have a question about the PS-3416 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX PS-3416

  • Page 1 PS-3416/3416E Fanless LCD Touch Terminal User Manual Package Contents  Fanless LCD touch terminal (x1)  Power adaptor (x1)  Power cord (x1)  User Manual (x1)  Recovery DVD (x1) (for pre-loaded OS model only) FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 2  Une batterie soumise à une pression atmosphérique extrêmement basse pouvant provoquer une explosion ou une fuite de liquide ou de gaz inflammable. 警告 本電池如果更換不正確會有爆炸的危險,請依製造商說明書處理用過之電池。 Views of the PS-3416/3416E Front View P-CAP Touch Panel LED Indicator Gen 7E Base...
  • Page 3 Rear View Rear I/O Cover HDD Cover Display Screw Hole Hinge for LCD Neck Cover Cable Cover Cable Exit Left Side View Right Side View Power Button Brightness Adjustment Button “+” MSR Port Cover Brightness Adjustment Button “-” Bottom View Bottom I/O Cover...
  • Page 4 View of I/O Interface Top I/O Ports Rear I/O Ports Parallel (LPT) Port COM4 Port Connector USB 2.0 Port PS/2_KB Pin Header ※ The top I/O ports are provided for COM-based and USB-based peripheral devices, for example, customer display. Bottom I/O Ports RJ45 LAN Port USB 2.0 Port COM Port...
  • Page 5 Before operating this terminal, unfold it and make this terminal rise in operation mode by referring to the following steps. Here, an equivalent model with GEN 7 base is taken below for example. 1. Firstly, lift this terminal gently to make it to be unfolded.
  • Page 6 5. Remove the cable cover from the base. 6. Fix the base with two #/6/32-14L screws. 7. Push the cable cover back to the base. Terminal from operation mode to shipping mode To fold this terminal, refer to the following steps. Here, an equivalent model with GEN 7 base is taken below for example.
  • Page 7 3. Carefully hold the lower rim of the display. 4. Push the base-folding lever in the direction as indicated by the arrow below (1). Then, the display will be loosen and go down (2). 5. When the display goes down to a degree, loose the base-folding lever, as shown in the direction as indicated by the arrow below.
  • Page 8 7. Put back the cable cover. Installing Optional Upgrade Kits and Peripherals PS-3416/3416E can work with multiple optional upgrade kits and peripheral devices, such as magnetic stripe reader (MSR), LCD monitor, cash drawer and the like. Before installing an optional upgrade kit and/or peripheral device, make sure...
  • Page 9 2. Pull out the cable cover. Pull out 3. Push and tilt the terminal to the end in the direction as shown by the arrow. Then determine that the terminal is tilted to the end, as shown in the right figure. 4.
  • Page 10 6. Tilt the terminal slightly at a little angle in the direction as shown by the arrow, making cables easily pass through the cable passage. Cable Passage 7. Make the connector, which will be connected to the I/O port of the terminal, pass through the cable passage of base stand.
  • Page 11 9. Remove the bottom I/O cover with your forefinger inserting the middle hole of the cover. 10. Connect the connector of the power adapter to the 12VDC-IN power jack. 11. Cover the bottom I/O interface and gather the I/O cables to the circled cable arrangement area, as shown below.
  • Page 12 13. Arrange well the I/O cable located at the area of neck cover. 14. Shield the I/O cable arrangement area on the neck of the base stand with the neck cover. 15. Shield the I/O cable exposure area with the cable cover. CAUTION: On doing insertion or extraction of a cable connector, please always hold the connector head itself instead of pulling the cable wire.
  • Page 13 Operating System Recovery For the PS-3416/3416E main system preloaded with an operating system on HDD or SSD, We provide a recovery DVD shipped with the main system for the preloaded operating system. The system integrator shall take care of software restoration after the OS is recovered.
  • Page 14: Specifications

    0°C - 50°C, 20%RH - 90%RH (Equipped with SSD) Storage -20°C - 70°C, 10%RH - 90%RH Condition ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the PS-3416/3416E, please contact your dealer and the service team.
  • Page 15 <MEMO>...
  • Page 16 <MEMO>...
