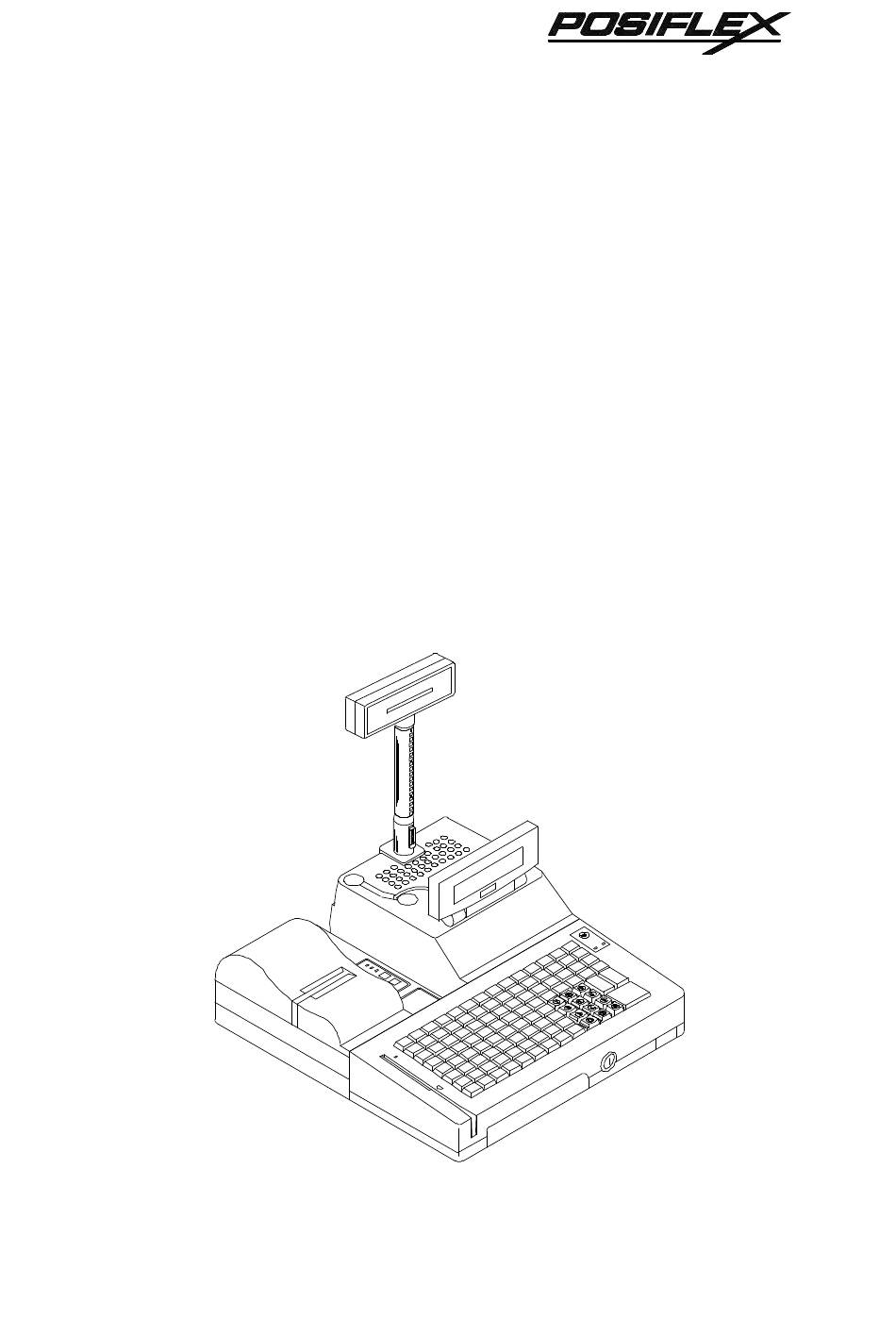

PST-1000 SERIES
TECHNICAL MANUAL
Rev. : A
L3
L3
L4
L4
L2
L2
L1
L1
L0
L0
LP
LP
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PST-1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX PST-1000 Series

Summary of Contents for POSIFLEX PST-1000 Series

  • Page 1 PST-1000 SERIES TECHNICAL MANUAL Rev. : A...
  • Page 2 POS application to utilize the hardware of the PST1000 series that is a member of the POSIFLEX integrated point-of-sale terminal product family. The PST1000 is a compact point-of-sale system that gives the most user friendly upgrade transition from ECR and combines the performance and affordability of personal computers with the elegance and reliability of business machine.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS OVERVIEW ..........1 - 1 SCOPE .
  • Page 4 KEY TOP OPTION ......2 - 8 UPS BATTERY ....... . . 2 - 8 PRINTER: PP-3000.
  • Page 5 PD-101 (LED DISPLAY)......5 - 5 PD-201 (LCD DISPLAY)......5 - 6 .
  • Page 6 HARDWARE DETAILS ........6 - 1 MAIN BOARD (PST888).
  • Page 7 APPENDIX — Font Tables For Posiflex Customer Displays ..Appendix- 1 CONTENTS ........Appendix- 2 FONT FOR OD-300 .

  • Page 9: Overview

    Accidental power off protection – only power on or software controlled power off function accessible from exterior of the system. This feature, together with the UPS function, provides a data-loss-free environment. PST-1000 series Technical Manual 1 - 1...

  • Page 10: Model Numbers

    MODEL NUMBERS Customer Display OPTIONAL CUSTOMER DISPLAY: Operator PD-101, PD-201 or PD-2101 (Cashier) Display or PD-7001 series 9” monochrome PST1010 CRT DISPLAY OD-300 -- 2 * 20 PST1000 LCD DISPLAY PST-1000 series Technical Manual 1 - 2...

  • Page 11: General Specifications

    One ON (controlled ON/OFF) switch at right end of front edge of the system l Position LP of the 6 position lock can be programmed as the software shutdown control according to POSIFLEX standard PST-1000 series Technical Manual 2 - 1...

  • Page 12: Operator Display

    Note: For 10” color monitor, the AC power is used instead of the UPS supported DC power source in the VGA display connector. Hence, the 10”color monitor is not supported by the UPS function while the 9” mono monitor is supported. PST-1000 series Technical Manual 2 - 2...

  • Page 13: Ups Support

    Hot key programming (teach & learn) l Answer back signal when position key changed or when enquired. l Standard layout includes one quad key, two double keys, 12 numeric keys 00 0~9 and 92 single keys PST-1000 series Technical Manual 2 - 3...

  • Page 14: Input / Output Ports

    Max SSD memory up to 16MB 24VDC POWER SUPPLY TO POS PRINTER l UPS supported l 24 +/- 1.2 VDC at 2 AMP load l Max. ripple + noise: 240 mV l Accessory: cable CCBLA-146 PRELOAD DOS PST-1000 series Technical Manual 2 - 4...

  • Page 15: Led Color

    ENVIRONMENTAL l Temperature range: Operating: 0°C ~ +40°C Non-operating: -20°C ~ +70°C l Humidity range: Operating: 20%RH ~ 80%RH, non-condensing max. wet bulb 26°C Non-operating: 10%RH ~ 80%RH, non-condensing max. wet bulb 28.9°C PST-1000 series Technical Manual 2 - 5...

  • Page 16: Accessories

    14.5°and 30° 14.5°and 30° Inclined viewing angle Display area 100.2 x 99 x 24 216 x 32 196 x 42.4 (mm x mm) 14.2 Remark : PD101 has 7 status indicator LED lamp PST-1000 series Technical Manual 2 - 6...

  • Page 17: Magnetic Stripe Reader

    COM3 & COM4 BOTH CAPABLE OF SUPPLYING +5 VDC AND +12 VDC POWER WHILE DEFAULTED TO GIVE NO DC OUTPUT l THIS OPTION COMES WITH A VGA PORT AS WHAT IS FOR PST1010 PST-1000 series Technical Manual 2 - 7...

  • Page 18: Key Top Option

    INCHES WITH ADJUSTABLE PAPER GUIDE l PRINTS ON ORDINARY OR UP TO 3-FOLD CARBONLESS COPY PAPER INTERNAL MODEM CARD l AFM100 – CUSTOMIZED SIZE TO FIT INTO THE SYSTEM l 850MB AND ABOVE PST-1000 series Technical Manual 2 - 8...

  • Page 19: Reliability Specification

    LCD PANEL LIFE EXPECTANCY: 50,000 HRS l LCD BACK LIGHT LIFE EXPECTANCY: 20,000 HRS l MSR LIFE EXPECTANCY: 300,000 PASSES l KEY SWITCH LIFE EXPECTANCY: 10,000,000 STROKES l 6 POSITION KEY LIFE EXPECTANCY: 25,000 TIMES PST-1000 series Technical Manual 3 - 1...
  • Page 20 PST-1000 series Technical Manual 3 - 2...

  • Page 21: System Definitions

    PST023 CARD for PST1010 SYSTEM PROGRAMMABLE VGA CONTROLLER KEYBOARD MEMORY (5 VDC, 12 VDC) (8KB) (12 VDC) (5VDC, 12VDC) EXT. KB. (MSR) COM 4 COM 3 PORT BARCODE SCANNER PC KB DEVICE DEVICE KEYBOARD WEDGE PST-1000 series Technical Manual 4 - 1...

  • Page 22: External Keyboard Connector

    DC +12 V is supplied to the monitor through specially designed different pins. « Short circuit will occur if any device other than the designated display is connected to the display port. « The DC supply in this connector is UPS supported. PST-1000 series Technical Manual 4 - 2...

  • Page 23: Serial Port Com1

    COM1 is not connected properly. • In PST1000, this connector is occupied by OD-300. • DC supply of this port is UPS supported. PST-1000 series Technical Manual 4 - 3...

  • Page 24: Serial Port Com2

    This port is available in PST1010 or as option to PST1000 • IRQ applied: IRQ9 • DC supply of this port is UPS supported. Jumper selection: please refer to Chapter 4 of this manual about PST023. PST-1000 series Technical Manual 4 - 4...

  • Page 25: Serial Port Com4

    The power to cash drawer solenoid is DC 12 V nominal. l The command to open cash drawers is decoded through COM 1. l The drawer open indication can be detected by software through status check on RI signal of COM 1. PST-1000 series Technical Manual 4 - 5...

  • Page 26: Parallel Port Lpt1

    15 - ERROR 16 - INIT 17 - SLCT IN 18 GND 19 GND 20 GND 21 GND 22 GND 23 GND 24 GND 25 GND • IRQ 7 is applied for this port. PST-1000 series Technical Manual 4 - 6...

  • Page 27: Customer Display Connector

    OUTER PIN ASSIGNMENT OF 3 PIN PLUG TO PRINTER: DEFINITION +24 V N.C. CASE CHASSIS GND CASE UPS BATTERY CONNECTOR PIN ASSIGNMENT OF 4 PIN SOCKET: DEFINITION +12 V +12 V PIN 1 PST-1000 series Technical Manual 4 - 7...
  • Page 28 PST-1000 series Technical Manual 4 - 8...

  • Page 29: Application Guides

    It is very important for the software programmer to take special care in displaying the messages to the OD300, because there is no other display like a monitor to indicate the system response in a standard PST1000. PST-1000 series Technical Manual 5 - 1...

  • Page 30: Epson Command Mode (Power On Default)

    <1F><40> Show Version US B <1F><42> Move Cursor To Bottom Position Cursor On / Off US C <1F><43><n> n = 0, 1 Blink Display Screen US E <1F><45><n> n = 0 ~ 255 PST-1000 series Technical Manual 5 - 2...

  • Page 31: Pst Command Mode

    PST system may have changed the mode to this PST command mode after the whole power-on-self-test depending on the software system installed. It would be advisable for the programmer to check ahead. PST-1000 series Technical Manual 5 - 3...

  • Page 32: Customer Display

    CTS signal. For PST1000 series of system version B introduced in 2 quarter of 1998 onward, this handshaking signal is selectable between CTS and DSR through change of jumper setting according to the description in hardware details. PST-1000 series Technical Manual 5 - 4...

  • Page 33: Pd-101 (Led Display)

    LED Status: Light up LED according to value X. <15><01><X> LED All Off S/TL TTL CASH CHNG DSCT QNTY U/P <15><02><N > LED Data: …<N ><0D> <N > to <N > must be <2E> or <30> to <39>. 8 digits max. PST-1000 series Technical Manual 5 - 5...

  • Page 34: Epson Command Mode (Power On Default)

    US @ <1F><40> Show version US B <1F><42> Move cursor to bottom position Set/cancel cursor display US C <1F><43><n> n = 1, 2 Blink display screen US E <1F><45> n = 0 ~ 255 PST-1000 series Technical Manual 5 - 6...

  • Page 35: Pst Command Mode

    <14><1A><P> Move Cursor to position P <14> <1B> Move Cursor To Rightmost Position Of Line 1 <14> <1C> Move Cursor To Rightmost Position Of Line 2 Clear Pass-Through Flag (no compensation <21><23><02> transmission) PST-1000 series Technical Manual 5 - 7...

  • Page 36: Pd-2101 (Vfd Display)

    VFD, there is one more feature to be displayed, which is the downward pointing triangle under each character. This triangular mark shall be referred to as the under mark for identification later on. PST-1000 series Technical Manual 5 - 8...

  • Page 37: Futaba Emulation Mode

    11 09 Set pass through flag Vertical scroll up 12 09 Clear pass through flag x1 x2 02 Cursor up/down 11 0A Digit select 10 pp Line feed 12 0A Back space Carriage return PST-1000 series Technical Manual 5 - 9...

  • Page 38: Noritake Emulation Mode

    On going scroll Top row Max. 60 characters One time scroll Top row Max. 60 characters Stop trapping N.A. No characters Change attention code N.A. 2 characters Display whole area Both rows Max. 40 characters PST-1000 series Technical Manual 5 - 10...

  • Page 39: Epson Emulation Mode (Power On Default)

    ESC = Select peripheral device characters « 1B 3F 1B 3D ESC t Select character code table 1B 74 The commands with « mark may not be 100% compatible with original EPSON commands. PST-1000 series Technical Manual 5 - 11...

  • Page 40: Pd-7001 (Lcd Display)

    1 2 3 SW1 & SW2 for power on default emulation mode EPSON 2 X 20 NORITAKE 2 X 20 EPSON 4 X 26 N.A. NO LOGO AT POWER-ON SHOW LOGO AT POWER-ON N.A. Default PST-1000 series Technical Manual 5 - 12...
  • Page 41 = 20-> Noritake 2x20 mode n = 40-> Epson 4x26 mode n = 80-> (must not be used) ESC ? Delete user-defined character <1B>h <3F>h <n> ESC @ Initial display <1B>h <40>h PST-1000 series Technical Manual 5 - 13...
  • Page 42 <1F>h <5E>h <n> <m> n x 20 ms = interval of bytes US ^ Execute macro m x 50 ms = interval of macros + Display automatically default to these conditions after power-on or reset PST-1000 series Technical Manual 5 - 14...

  • Page 43: Noritake Mode -- 2 Lines X 20 Characters

    1st row, and leave a blank 2nd row. <12> <0A> The cursor position is unchanged. If the cursor is at the 1st row, it simply moves directly down to the 2nd row. Characters are not effected. PST-1000 series Technical Manual 5 - 15...
  • Page 44 Enables a scrolling message to be sent to the display. The string characters can be up to 45 characters long and <05> terminated by <0D>. The message will scroll on the first row. It is disabled automatically when other information is sent. PST-1000 series Technical Manual 5 - 16...
  • Page 45 = 10-> Epson 2 x 20 mode <1B> <3D> <n> n = 20-> Noritake 2 x 20 mode n = 40-> Epson 4 x 26 mode n = 80-> (must not be used) PST-1000 series Technical Manual 5 - 17...
  • Page 46 = 20-> Noritake 2x20 mode n = 40-> Epson 4x26 mode n = 80-> (must not be used) ESC ? Delete user-defined character <1B>h <3F>h <n>h ESC @ Initial display <1B>h <40>h PST-1000 series Technical Manual 5 - 18...
  • Page 47 50 ms = on/off time US E Blink display screen n = 0, display keep on n = 255, display keep off + Display automatically default to these conditions after power-on or reset PST-1000 series Technical Manual 5 - 19...

  • Page 48: Programmable Keyboard

    PROGRAMMABLE KEYBOARD HOT KEY PROGRAMMING The POSIFLEX programmable keyboard supports the “Hot key programming” method which is most useful in instant modification of a few keys in a preprogrammed keyboard without entering the more sophisticated programming utility. Of course, the user may also use this feature to program through out all 112 keys by 5 pages (LP and L1 to L4) at will.

  • Page 49: Input The Content To Be Programmed

    “Hot key” again to notify the end of “Hot key programming”. The programmable keyboard will give one beep to signify the normal exit of the “Hot key programming” mode. Should there be any illegal entry in the content of the key or any other improper PST-1000 series Technical Manual 5 - 21...

  • Page 50: Common Programming (Kbm.exe)

    Alt-E – erase the current page or all pages Alt-G -- enter the configuration page Alt-L -- load key definitions from a disk file Alt-M -- enter multi-level shift marker Alt-N -- enter scan-code editing mode PST-1000 series Technical Manual 5 - 22...

  • Page 51: Command Listing In Ascii-Code Editing Mode

    Right arrow -- move cursor to one character right within the key definition Alt-A -- enter view mode Alt-C -- enter a “Caps Lock” into the key-content Alt-D -- enter time delay mark into the key-content Alt-N -- enter view mode PST-1000 series Technical Manual 5 - 23...

  • Page 52: Command Listing In Scan-Code Editing Mode

    Alt-D -- enter time delay mark into the key-content Alt-M -- enter a multi-level shift marker into the key-content Alt-N -- enter view mode Alt-S -- enter a multi-level separator between definitions of different levels. Alt-X -- enter view mode PST-1000 series Technical Manual 5 - 24...

  • Page 53: Answer Back Code

    “.tpl” file or directly transfer a prestored “.tpl” file to a programmable keyboard without entering the utility “KBM.EXE” which may take more keystrokes. For instance, the user wants PST-1000 series Technical Manual 5 - 25...

  • Page 54: Hardware Limitation

    “XXX.tpl”, which was saved before, to the programmable keyboard, he/she should type in following command in subdirectory “POSIFLEX.D”: RWM XXX.tpl (enter) This operation is quite recommended to be performed on a daily basis to ensure the system stability.

  • Page 55: Ssd Memory

    SSD initialization is completed. The whole process is automatic. So, insertion of this “SSD initialization” diskette must be handled with absolute care. PST-1000 series Technical Manual 5 - 27...

  • Page 56: Power On/Off Control

    The command to call for a program which will send the software switch off command string to COM1 as described. The hexadecimal command string for software switch off function is : <1B> <06> <16> <19> <0D>. PST-1000 series Technical Manual 5 - 28...

  • Page 57: Cash Drawer

    The battery will undergo self-discharging over time even when not in use. An useful advice to preserve the battery at best condition is to regularly recharge the battery if the battery or the PST system with the battery is put in storage for a period PST-1000 series Technical Manual 5 - 29...
  • Page 58 In case the user wants to have a longer battery support time during AC power off, he/she should consult his/her dealer for application of an external 12 V battery. PST-1000 series Technical Manual 5 - 30...

  • Page 59: Main Board (Pst888)

    HARDWARE DETAILS MAIN BOARD (PST888) PCB LAYOUT CUSTOMER COM1 DISPLAY PCI1 FLUSH SOCKET /BIOS MANAGEMENT AREA JP12 80C42 SIMM2 JP11 SIMM1 PST-1000 series Technical Manual 6 - 1...

  • Page 60: Connectors

    Select for DC supply to COM1 AMD DX2 Select only for AMD DX2-80 JP11 PWR SW Connect to the internal power ON/OFF switch JP12 CPU SEL-3 Select CPU models ON SW External power on switch PST-1000 series Technical Manual 6 - 2...
  • Page 61 To insert half length PCI card for expansion ISA SLOT To insert half length ISA card for expansion ISA SLOT To insert half length ISA card for expansion To insert CPU with cooling fan PST-1000 series Technical Manual 6 - 3...

  • Page 62: Jumper Settings

    JP1-5~JP2-4, JP1-6~JP2-5 short, JP12: 5-6 short JP1: 2-11, 4-13, 5-14, 6-15 short, JP1-3~JP2- ST 486DX4-100 (3.3V) 2 short, JP12: 1-2 short CPU voltage select CPU voltage JP3 settings 3.3 V 5-6, 7-8 short 1-2, 3-4 short PST-1000 series Technical Manual 6 - 4...

  • Page 63: Clock Select

    Pin9: RI 2-3 short COM2 DC select Function in COM2 J12 settings 5-6 short « « Pin1: DCD Pin1: +12 VDC 4-5 short 2-3 short « « Pin9: RI Pin9: +5 VDC 1-2 short PST-1000 series Technical Manual 6 - 5...

  • Page 64: Programmable Keyboard

    Membrane through the narrow tongue JP 12 I/O board for external connection JP 13 PS/2 keyboard JP 15 Membrane through the broad tongue JP 181 Power LED JP 185 MSR head JP 186 MSR LED PST-1000 series Technical Manual 6 - 6...

  • Page 65: Jumper Settings

    Assemble the MSR head and connect it to JP 185. • Assemble the bi-color LED and connect it to JP 186. • Check the jumper settings of J17: Open: Start/end sentinel ON « Short: Start/end sentinel OFF PST-1000 series Technical Manual 6 - 7...

  • Page 66: Vga Card (Pst023)

    9 pin D type male sub-miniature connector on an I/O plate connected to a 2 x 5 pin header on the PST023 card. Both COM ports support +5V DC and +12V DC power individually. PST-1000 series Technical Manual 6 - 8...
  • Page 67 + 12V DC 4 - 6 short The default settings for JP 4 and JP 5 are both 3-5, 4-6 short. IRQ 9 is used for COM3 and IRQ 5 is used for COM4. PST-1000 series Technical Manual 6 - 9...
  • Page 68 PST-1000 series Technical Manual 6 - 10...

  • Page 69: Service And Spare Parts

    KB wedge device if assembled in accordance with the instructions given in the User’s Manual; a four wire cable PST-1000 series Technical Manual 7 - 1...
  • Page 70 (or one if an internally connected KB wedge device exists) cable stopper from both sides of the bottom chassis should be taken out and kept well (see DWG.-4). DWG. - 1 Unlocking front door PST-1000 series Technical Manual 7 - 2...
  • Page 71 DWG. - 2 Unscrewing the bottom DWG. - 3 Lifting the keyboard unit PST-1000 series Technical Manual 7 - 3...
  • Page 72 DWG. - 4 Taking the cable stoppers out PST-1000 series Technical Manual 7 - 4...

  • Page 73: Detaching The Rear Cabinet

    PST turned back to normal position. Refer to the drawing for cable connections within the PST system and disconnect those necessary for taking out the module that needs to be replaced (see DWG.-7). PST-1000 series Technical Manual 7 - 5...
  • Page 74 DWG. - 5 Turning the “L” shaped wire outward and pull out Hooks inside rear cabinet and notches on chassis Pull the cabinet outward DWG. - 6 Detaching hooks from notches PST-1000 series Technical Manual 7 - 6...
  • Page 75 DWG. - 7 Cable connections inside PST system PST-1000 series Technical Manual 7 - 7...
  • Page 76 PSTCRTRODCVR LCD cable cover, round shape 1071 PSTCRTLWROD Pole base long type 1080 PSTLCDLWROD Pole base short type 1081 PSTCRTCBLCVR CRT cable cover 1090 PSTBTRYCVR Battery cover 1100 PSTBKDRLH Back door with latch PST-1000 series Technical Manual 7 - 8...
  • Page 77 Right plastic bracket 1300 PSTSWLEVELA Power switch level with adapter & knob 1310 PSTSWBRKT Power switch level cover 1320 CCBLA-230 UPS battery cable 1330 PST054A1K UPS battery connector board 1340 PSTSPKASSY Speaker with bracket PST-1000 series Technical Manual 7 - 9...
  • Page 78 1460 CCBLA-150C Internal KB cable from system board to KB controller 1470 PSTKB112CPUMR Keyboard controller 1480 CMSRCATRIGE-2 MSR module 2 tracks 1481 CMSRCATRIGE-3 MSR module 3 tracks 1482 CMSRCATRIGE-4A MSR module JIS II PST-1000 series Technical Manual 7 - 10...

  • Page 79: Assembly Drawing

    1351 1140 1460 1340 1150 1160 1330 1470 1480 1151 1161 1481 1320 1162 1482 1310 1170 1300 1180 1290 1190 1200 1201 1202 1280 (1380) 1270 1210 1230 1250 1260 1220 1240 PST-1000 series Technical Manual 7 - 11...
