General

2 General
2.1

Authorized use

The "Vacuum Hand Laying Device S
Operation requires two persons.
The maximum lifting capacity must not be exceeded.
The l" Vacuum Hand Laying Device" may be used only in vertical position.
Transport of persons and animals with the load or the "Vacuum Hand Laying Device" itself is forbidden!
Unauthorised modification of the lifting device is forbidden for safety reasons!
The operating, maintenance and service instructions in this manual must be observed.
Retrofit parts
- The use of the „Vacuum Hand Laying Device SPEEDY VS-140" at a lifting equipment (e.g. excavator) is
only allowed with the installed retrofit part „Lifting eye with safety chain – VS-XL-EH".
- When laying large stone slabs up to 1,2 m (47 ") the extended handles „VS-XL-HG" should be used (in
manual operation by 2 people, and in one-man operation with a lifting equipment), so that the feet are
outside of the danger zone.
- The quick-change suction plate (VS-SWV-SPS-50-30 / 25) is on the one hand a suction plate, as well as a
quick-change adapter. Either to carry small stones weighing up to 50 kg or to be able to quickly switch
between other Speedy suction pads.
- Retrofit kit (VS-GH-SPS) for quick changing of existing Speedy suction plates (this is only possible in
conjunction with the Speedy-mounted quick-change suction plate VS-SWV-SPS-50-30 / 25).

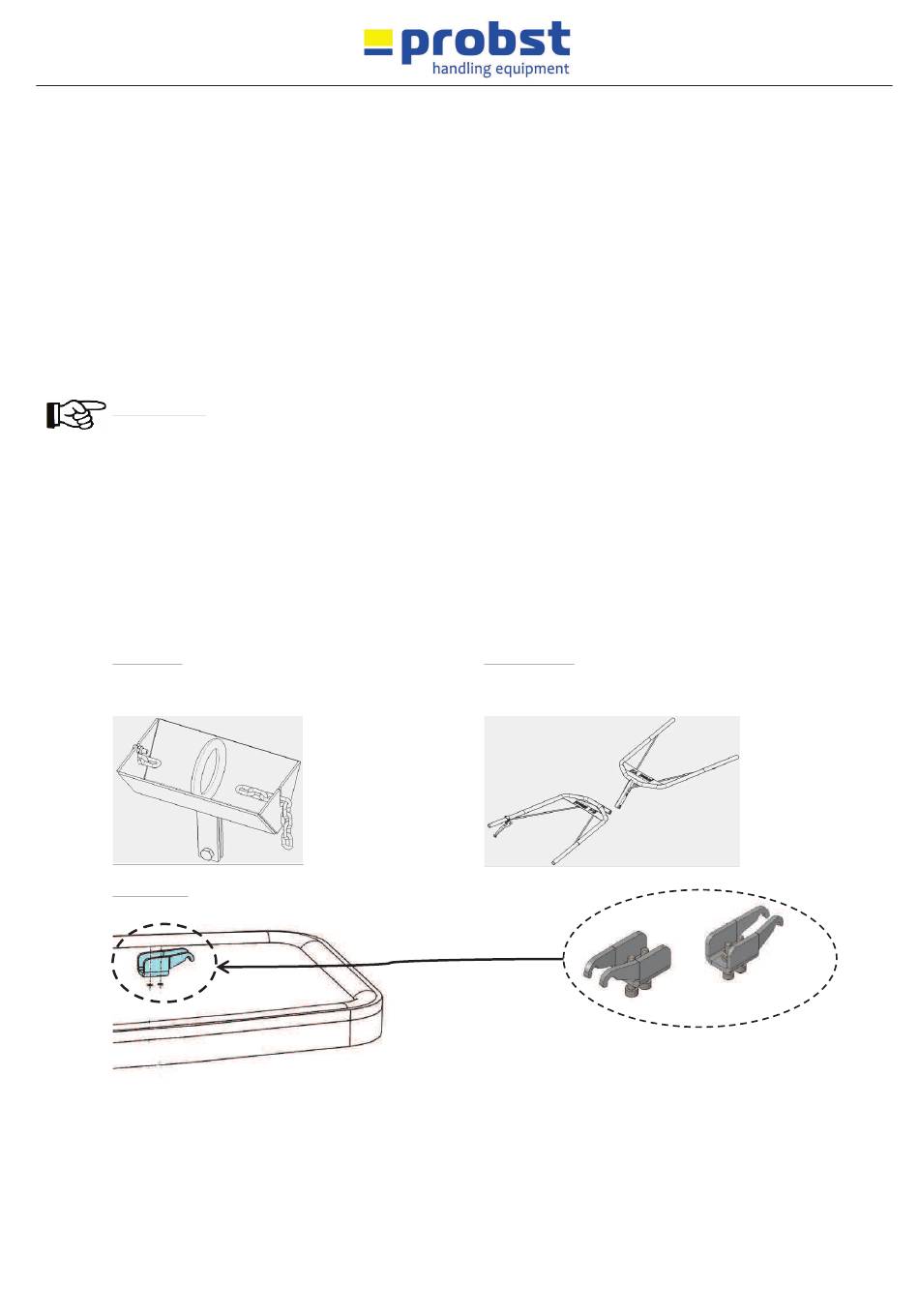

VS-200-EH (4271.0143)
Lifting eye with safety chain
Maximum working load: 200 kg
VS-GH-SPS (4271.0127)
Retrofit kit (counterholders) for Speedy suction plates
5270.0011/5270.0012/5270.0013/5270.0014
VS-140" is designed for lifting and moving stone and concrete slabs.
PEEDY
VS-140-XL-HG (4271.0089)
long handles for stone slabs up to 1,2 m width
Maximum working load: 140 kg
V3
5 / 25
