STM32F401 advanced debugging

3 STM32F401 advanced debugging

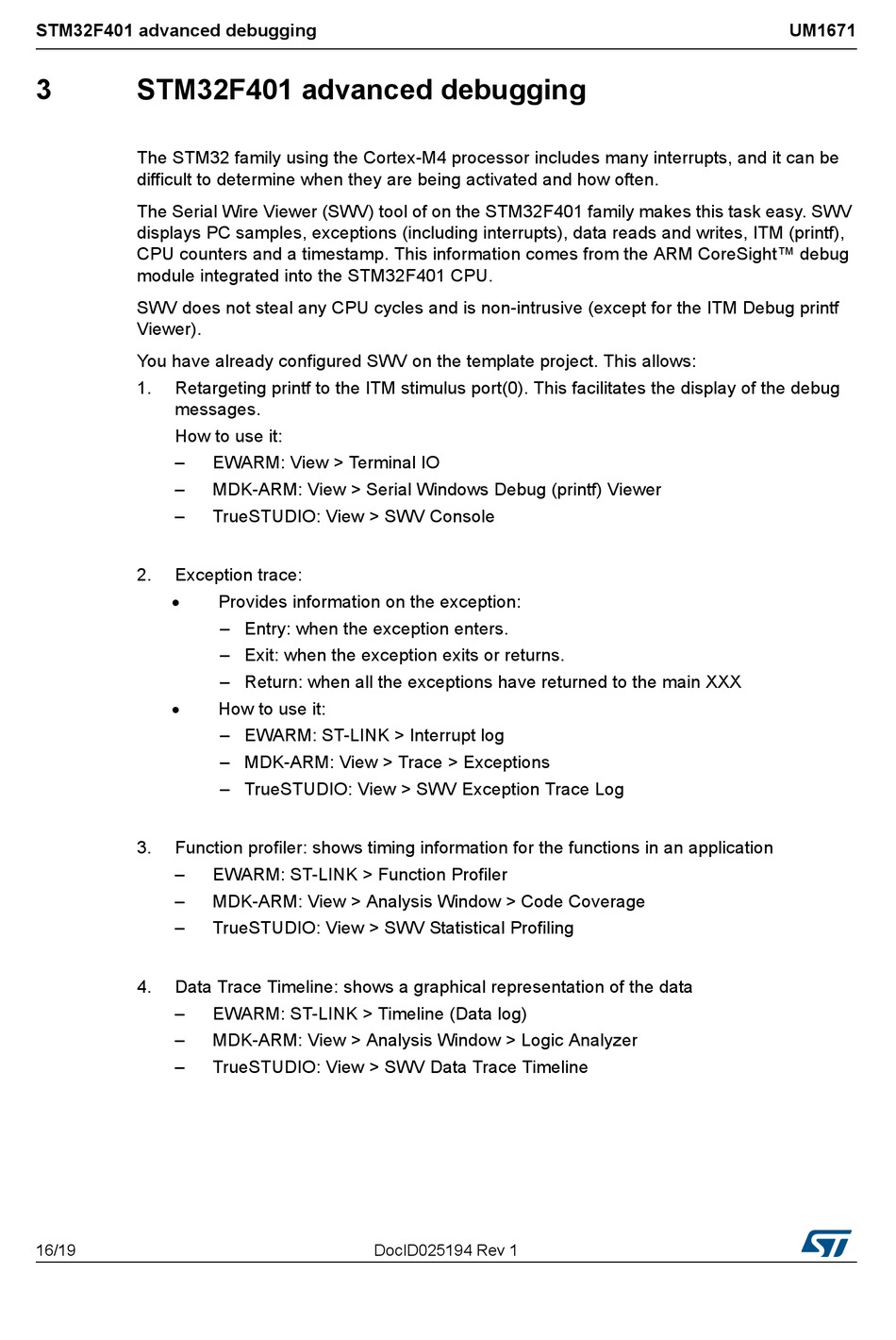

The STM32 family using the Cortex-M4 processor includes many interrupts, and it can be
difficult to determine when they are being activated and how often.
The Serial Wire Viewer (SWV) tool of on the STM32F401 family makes this task easy. SWV
displays PC samples, exceptions (including interrupts), data reads and writes, ITM (printf),
CPU counters and a timestamp. This information comes from the ARM CoreSight™ debug
module integrated into the STM32F401 CPU.
SWV does not steal any CPU cycles and is non-intrusive (except for the ITM Debug printf
Viewer).
You have already configured SWV on the template project. This allows:
1. Retargeting printf to the ITM stimulus port(0). This facilitates the display of the debug
messages.
How to use it:
–
–
–
2. Exception trace:


3. Function profiler: shows timing information for the functions in an application
–
–
–
4. Data Trace Timeline: shows a graphical representation of the data
–
–
–
16/19
EWARM: View > Terminal IO
MDK-ARM: View > Serial Windows Debug (printf) Viewer
TrueSTUDIO: View > SWV Console
Provides information on the exception:
– Entry: when the exception enters.
– Exit: when the exception exits or returns.
– Return: when all the exceptions have returned to the main XXX
How to use it:
– EWARM: ST-LINK > Interrupt log
– MDK-ARM: View > Trace > Exceptions
– TrueSTUDIO: View > SWV Exception Trace Log
EWARM: ST-LINK > Function Profiler
MDK-ARM: View > Analysis Window > Code Coverage
TrueSTUDIO: View > SWV Statistical Profiling
EWARM: ST-LINK > Timeline (Data log)
MDK-ARM: View > Analysis Window > Logic Analyzer
TrueSTUDIO: View > SWV Data Trace Timeline
