UM1671

If you need to change the project settings (Include directories and preprocessor defines),

simply go through Project>Properties, and select C/C++ Build>Settings from the left panel:



For Include directories

C Compiler>Directories>Include path



For pre-processor defines

C Compiler>Symbols> Defined symbols

To debug and run the application, select the project in the Project Explorer and press

F11 to start a debug session.

In the Project Explorer, select the project and press F11 to start a debug session (see

Figure

17).

The debugger in the Atollic TrueSTUDIO can be used to debug source code at the C and

assembly levels, to set breakpoints, to monitor individual variables and to watch events

during the code execution.

To run your application, from the Run menu, select Resume or, alternatively, click the

Resume button in the toolbar.

Executing and debugging firmware using a software toolchain

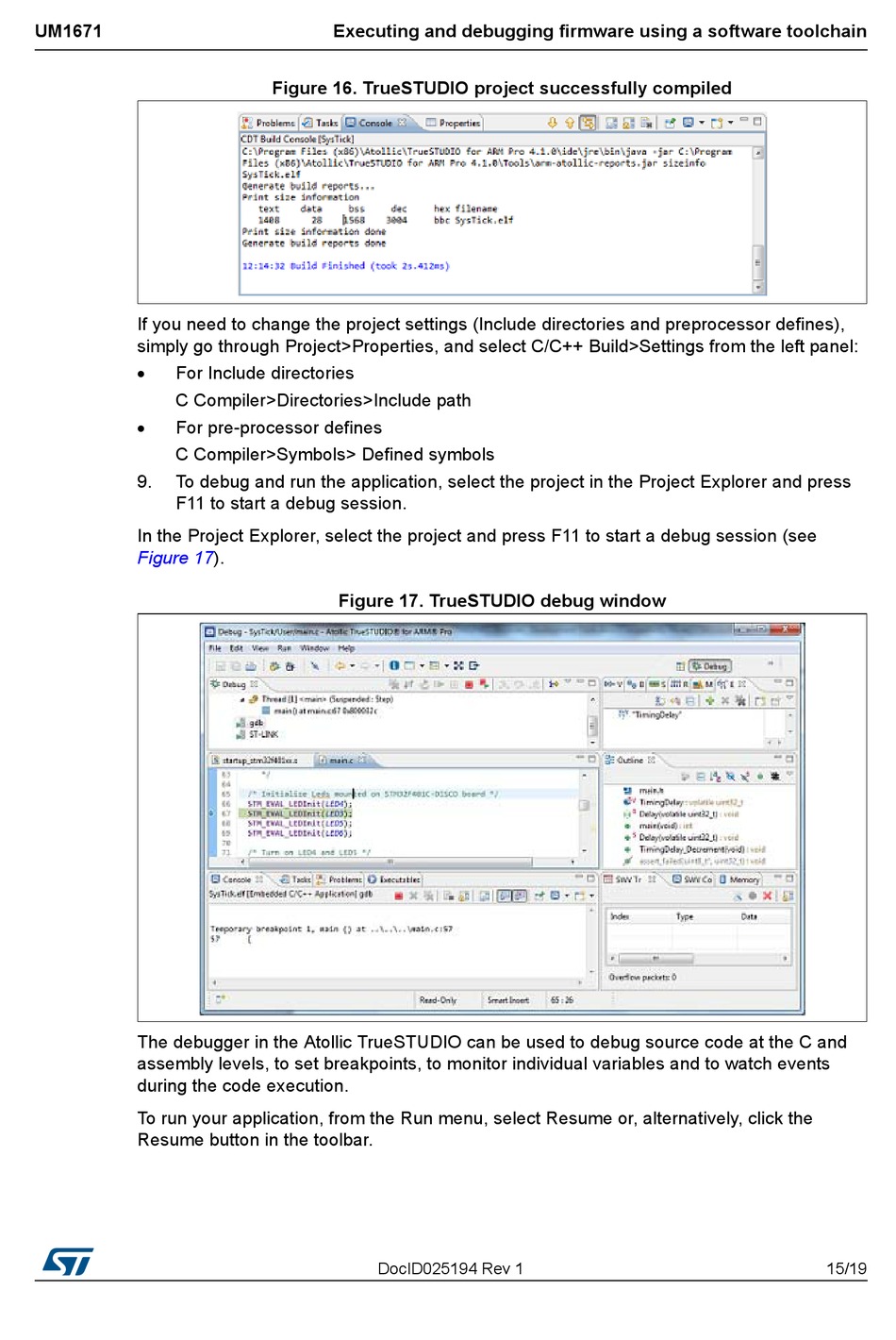

Figure 16. TrueSTUDIO project successfully compiled

DocID025194 Rev 1

15/19
