Section 6 Assign an IP Address Manually
NOTE
1. From the ConnectUPS Web/SNMP main menu, type 1 to set the IP address
and press Enter. The Web/SNMP settings menu displays (see Figure 9).

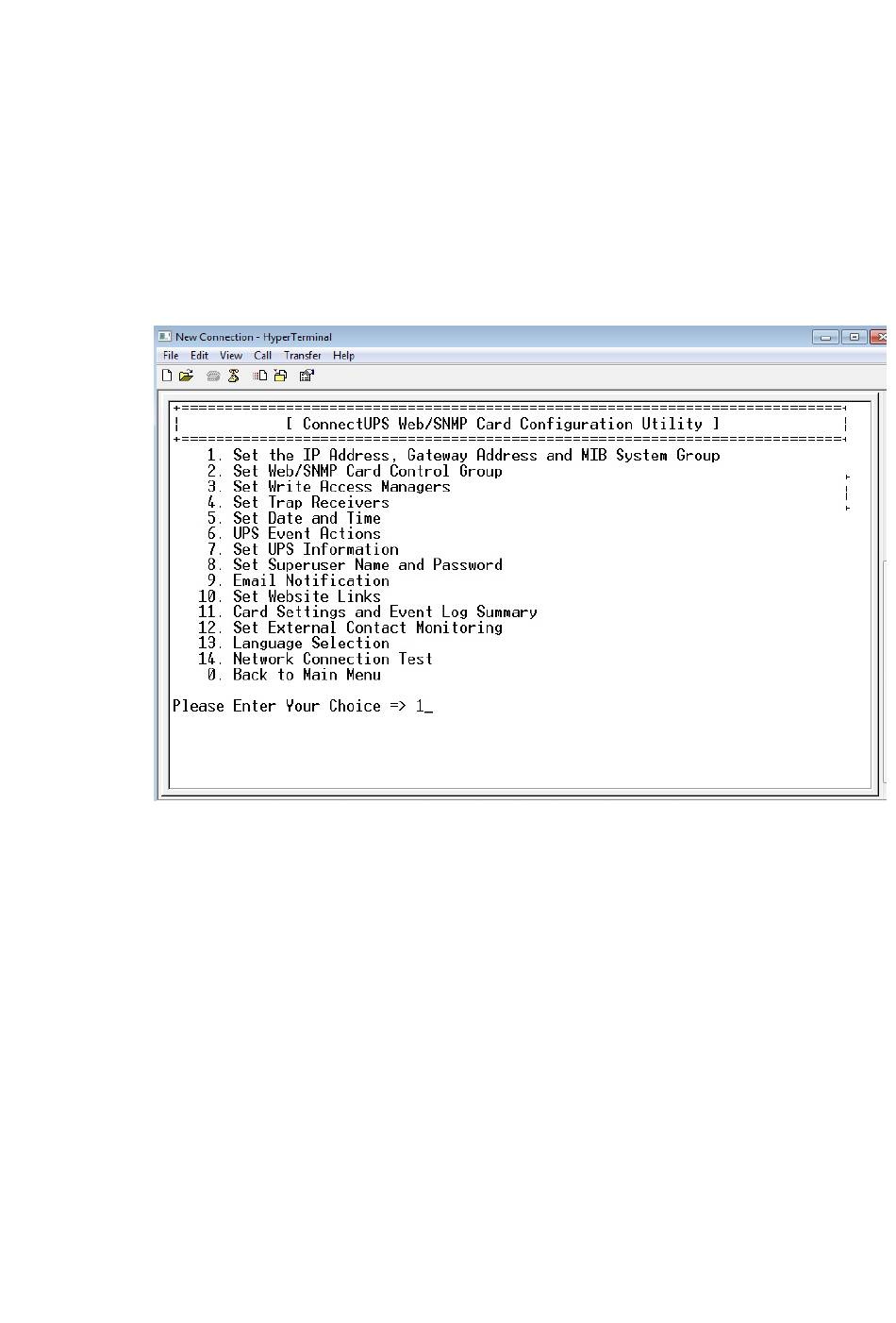

Figure 9. Modifying the Network Settings
2. Follow the instructions on the screen and enter the fixed IP parameters.
Refer to the data you logged in the "Installation Checklist" on page 4.
3. Type 3 at the prompt and press Enter to restart the card from the main
menu to take into account the new configuration. The screen displays
"Restarting... " when it begins the process and "ConnectUPS Web/SNMP
Card V4.32 Ready" when it finishes (see Figure 10). The card is now
operational.
Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 15
The dip switches must be set correctly to disable DHCP and
allow manual IP address assignment. Before you start, make
sure both DIP switches on the card are set to OFF (flipped up).
