Section 3 Connect the Card to the Computer
NOTE
NOTE
NOTE
To connect the card to the computer and the network:
1. Verify that the UPS is on and in normal mode.
NOTE
2. Plug the RJ-45 end of the supplied serial configuration cable into the COM
port on the card.
3. Plug the other end of the serial cable into the serial COM port on the
computer. (Depending on your laptop, you may need an adapter for this
step.) See Figure 3 and Figure 4.
4. Connect an active Ethernet cable (not supplied) from the network
connection to the Ethernet port on the ConnectUPS Web/SNMP card (see
Figure 3 and Figure 4).

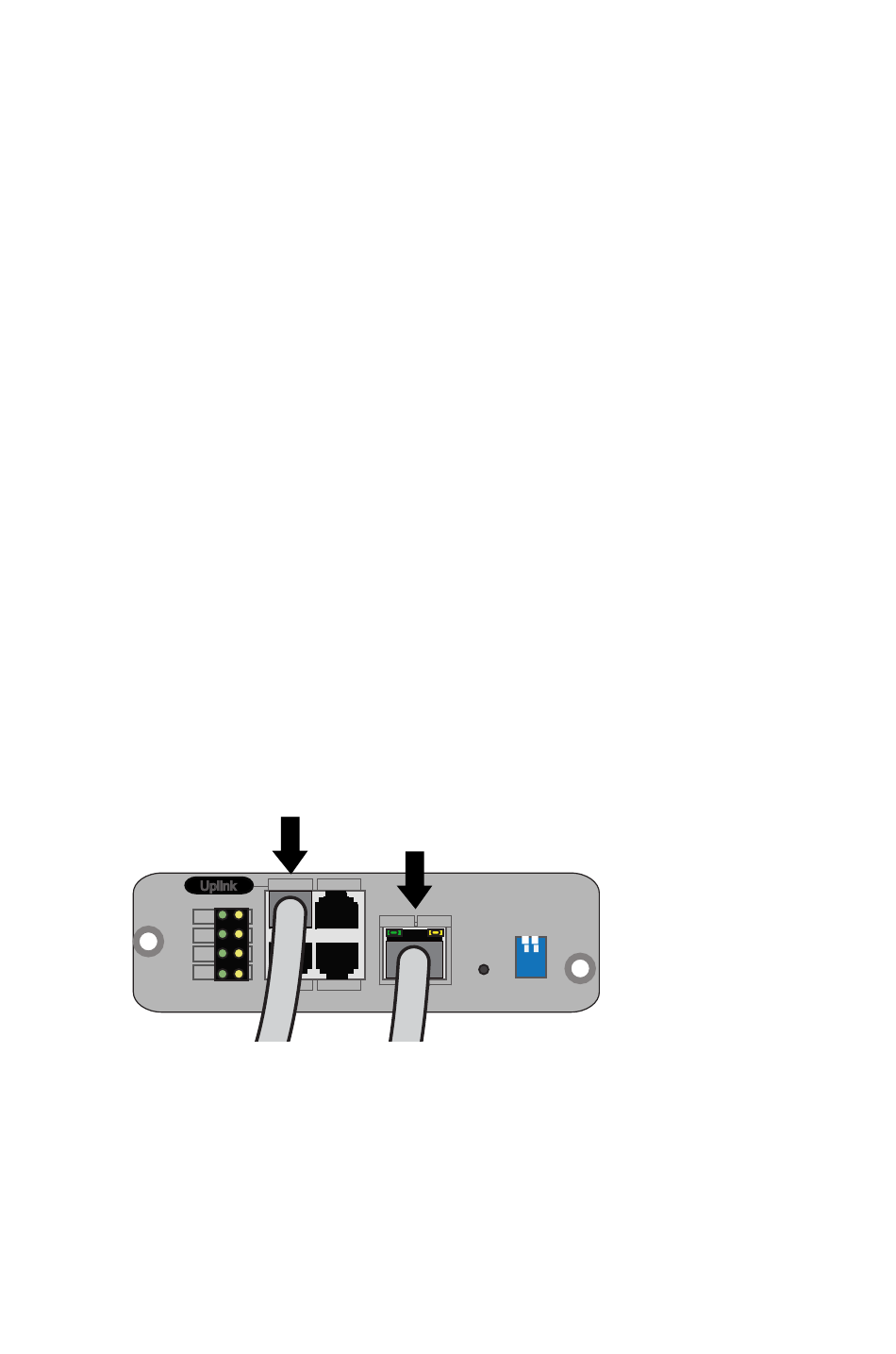

Figure 3. Connecting the Card (UPS-X Model Shown)
Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 7
You can set the card parameters through the COM port even if
the network is not connected.
You cannot use the Ethernet port for configuration.
When the card is not connected to the network, it continuously
attempts to connect. When the connection is established, the
LEDs indicate the status.
If you are not sure how to know if the UPS is in normal mode,
refer to the User's Guide for your UPS.
Ethernet Cable
Configuration Cable
Uplink 2
1
1
2
3
4
3
4
100 10
ConnectUPS-X Web/SNMP/xHub Card
POWER STATUS
RESET
1 2
ON
COM
COM
