Section 5 Obtain a DHCP-assigned IP Address
NOTE
NOTE
1. From the ConnectUPS Web/SNMP main menu, type 1 at the prompt and
press ENTER for Web/SNMP settings menu.
2. Type 2 for setting the Web/SNMP Card Control Group and press ENTER.
The current settings display (see Figure 7).
3. Is the DHCP value enabled?
If yes, type 0 and press ENTER to return to the main menu.
l
If no, the value is disabled, type Type 1 for BOOTP/DHCP control and press
l
ENTER. Type 1 to enable DHCP (see Figure 7), then type 0 and press
ENTER until you return to the main menu.

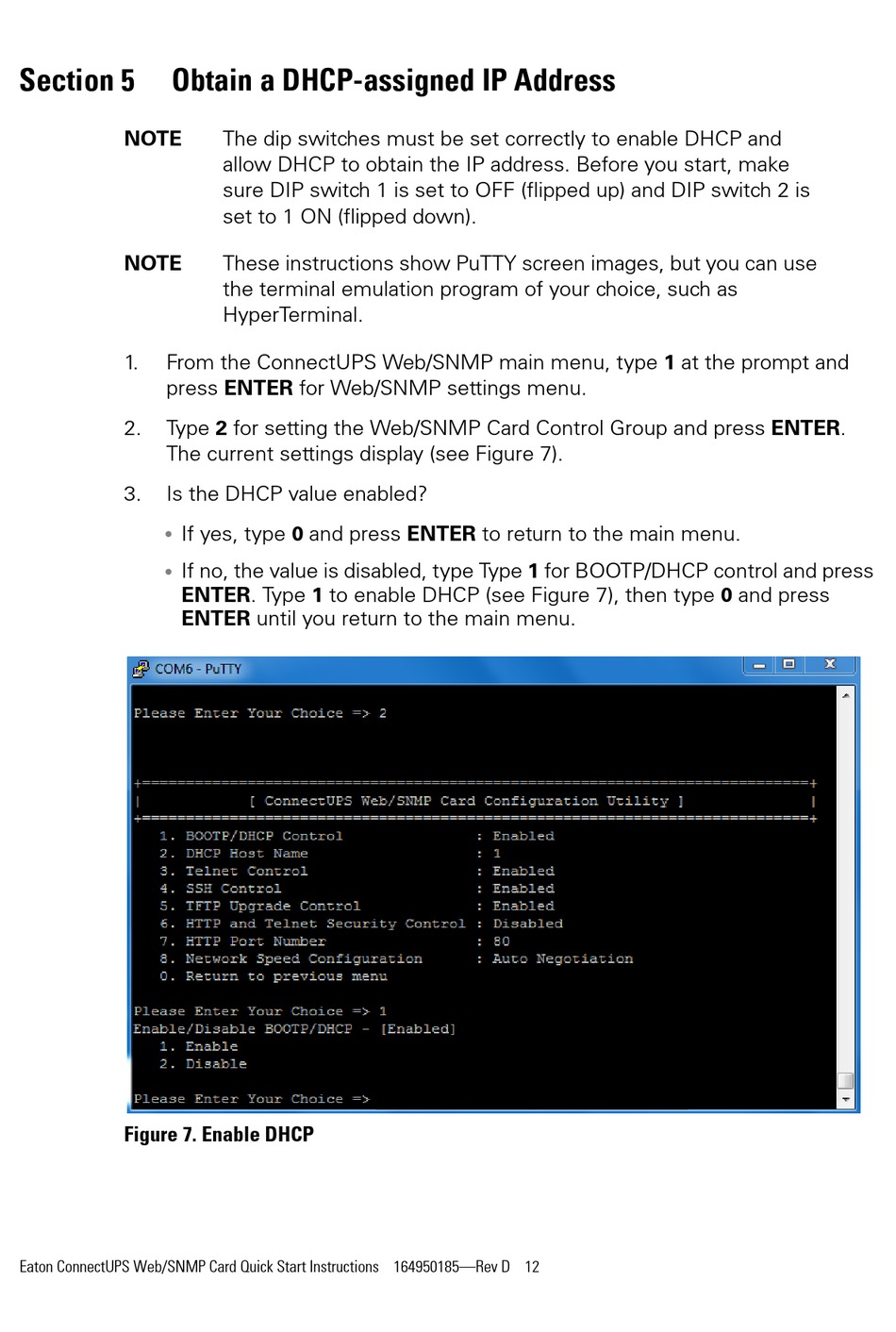

Figure 7. Enable DHCP
Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 12
The dip switches must be set correctly to enable DHCP and
allow DHCP to obtain the IP address. Before you start, make
sure DIP switch 1 is set to OFF (flipped up) and DIP switch 2 is
set to 1 ON (flipped down).
These instructions show PuTTY screen images, but you can use
the terminal emulation program of your choice, such as
HyperTerminal.
