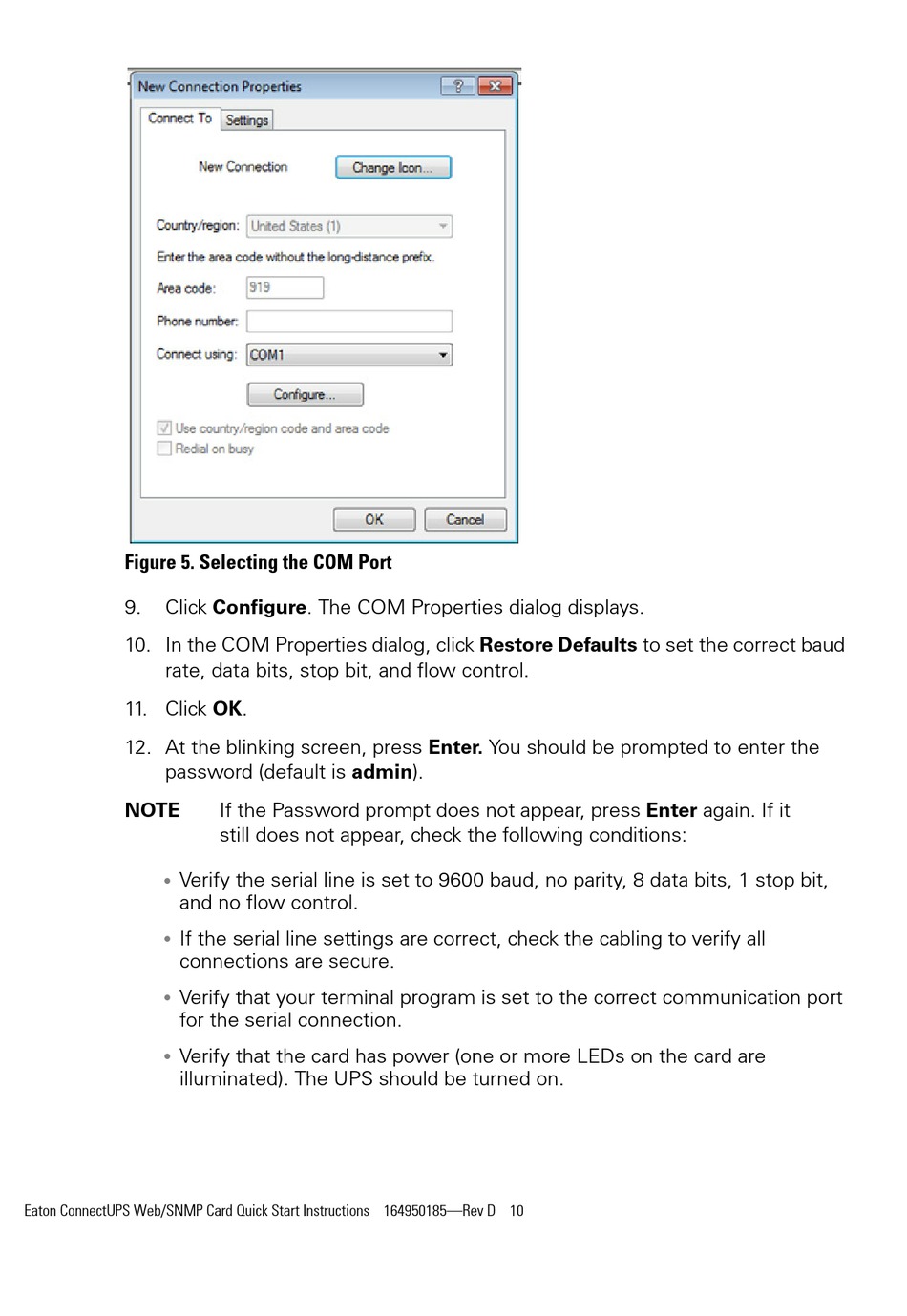

Eaton ConnectUPS Web/SNMP Card Quick Start Instructions page 10

Figure 5. Selecting the COM Port
9. Click Configure. The COM Properties dialog displays.
10. In the COM Properties dialog, click Restore Defaults to set the correct baud
rate, data bits, stop bit, and flow control.
11. Click OK.
12. At the blinking screen, press Enter. You should be prompted to enter the
password (default is admin).
NOTE
Verify the serial line is set to 9600 baud, no parity, 8 data bits, 1 stop bit,
l
and no flow control.
If the serial line settings are correct, check the cabling to verify all
l
connections are secure.
Verify that your terminal program is set to the correct communication port
l
for the serial connection.
Verify that the card has power (one or more LEDs on the card are
l
illuminated). The UPS should be turned on.
Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 10
If the Password prompt does not appear, press Enter again. If it
still does not appear, check the following conditions:
