DIRECTIONAL CONTROL VALVE OPTIONS

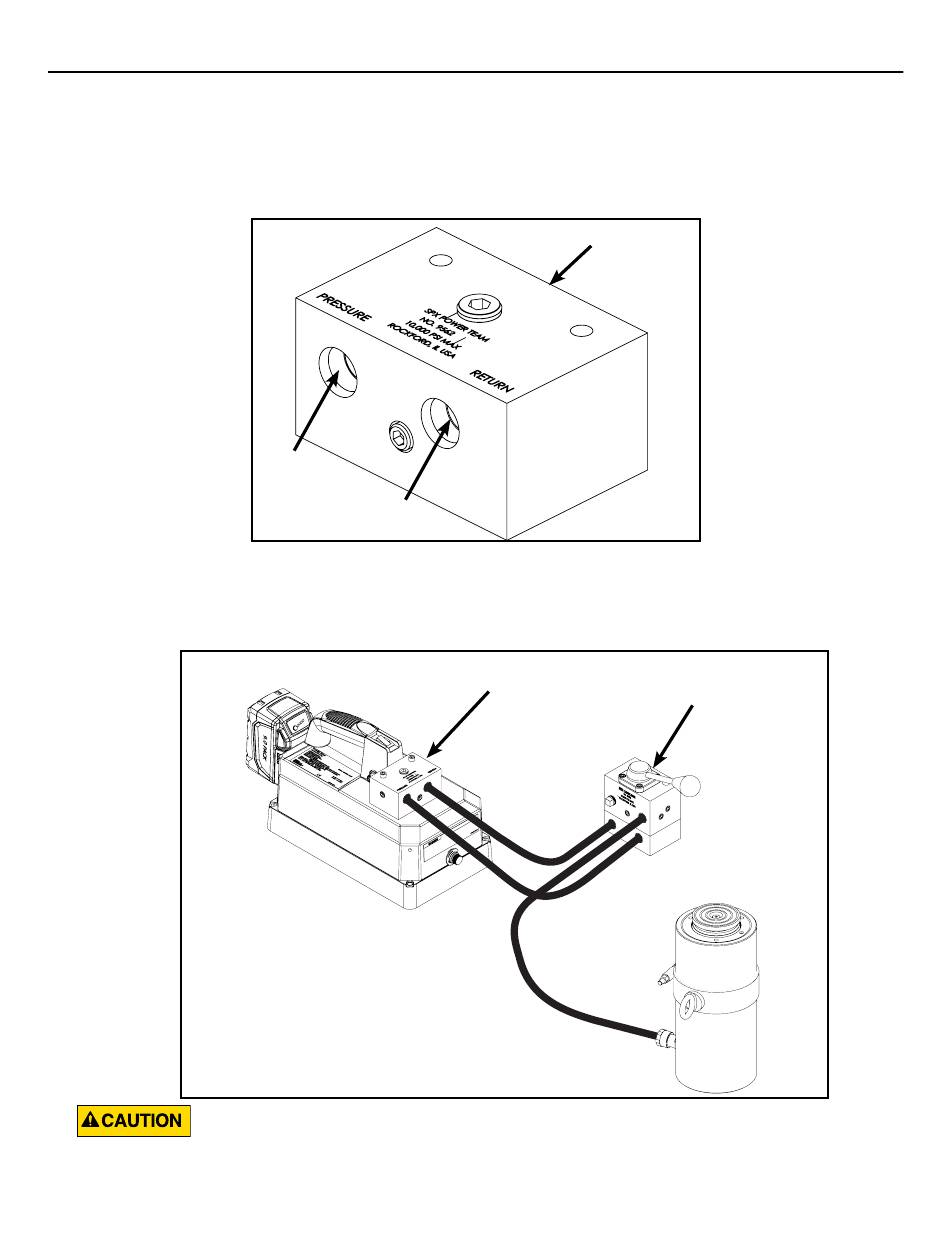

1. 2-Way Manifold Used With Single-acting Cylinders or Remote Mounted Valves (Figure 1)
A. Activate the pump unit by pressing the start button to advance the cylinder/accessory tooling.
B. When the cylinder or tool has advanced to the desired position the pump start button can be released
and the cylinder/tool will retract.
Example of remote mounted valve:
To prevent sudden, uncontrolled descent of a load as it is being lowered, use Load
Lowering Valve (No. 9596) or Counter Balance Valve (No. 9720) in conjunction with the
4-way manual valve in your application
© SPX FLOW, Inc.
Pressure
Port
Return
Port
Manifold
Figure 1
Manifold
Single acting
cylinder
17
Remote mounted
3-position 4-way
manual valve
