Setup Instructions; Hydraulic Connections; Checking Hydraulic Fluid And Filling The Bladder - SPX FLOW Power Team PB102-1 Parts List And Operating Instructions

NOTE: Carefully inspect the pump upon arrival. The carrier, not the manufacturer, is responsible for
any damage resulting from shipment.

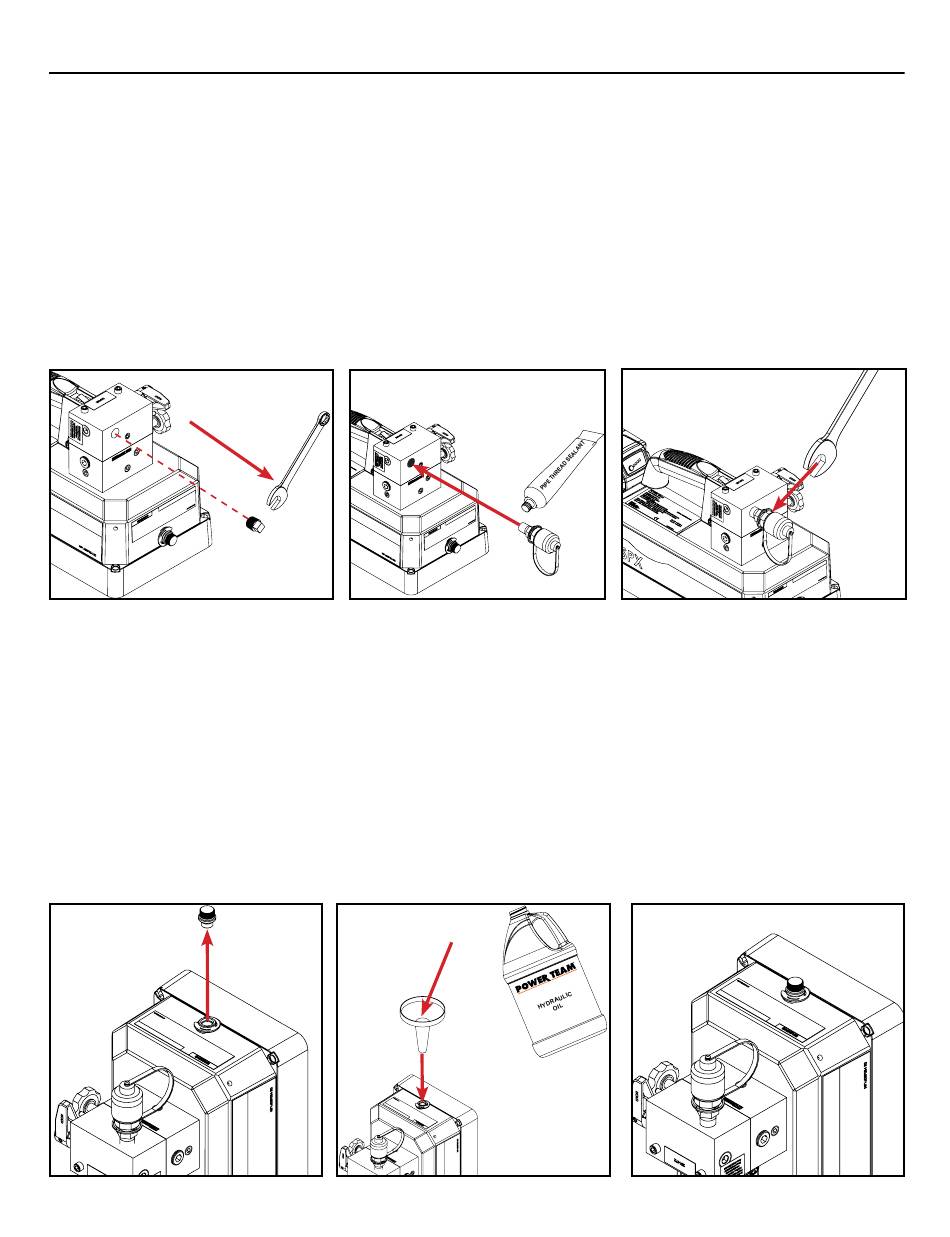

1. Hydraulic Connections

NOTE: Ensure areas are clean around fluid ports, and inspect all threads and fittings for signs of wear
or damage before use, and replace as needed.
A. Remove plugs and/or thread protectors/dust covers from hydraulic ports if applicable.
B. Use an approved, high-grade pipe thread sealant to seal all hydraulic connections and connect fittings
and/or hose assemblies to the pump.
C. Tighten securely and leak-free but do not overtighten.
A.

2. Checking Hydraulic Fluid and Filling the Bladder.

NOTE: Most pumps with a bladder are shipped with hydraulic fluid in the bladder. If hydraulic fluid is
needed, use only approved Power Team hydraulic fluid.
A. Remove the filler cap. (If there is no oil visible, continue to step B)
B. Insert a clean funnel with filter or strainer.
C. Fill the bladder completely with hydraulic fluid.
D. Replace filler cap.
IMPORTANT: Tighten filler cap ONLY 1/2 - 1 turn (MAX) after O-ring contacts sealing surfaces.
Overtightening can cause pump damage on bladder equipped pumps.
A.
