- Page 1 MANUAL ENGLISH Stage Blinder 1 LED Order code: 30784 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Stage Blinder 1 LED Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the Mains ............................5 Return Procedure ................................6 Claims ....................................6 Description of the Device ..............................7 Overview .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Stage Blinder 1 LED ● Pro power to Schuko power cable (1,5 m) ●... - Page 4 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Stage Blinder 1 LED Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light output and the illuminated surface must be bigger than 0,8 m. -
Page 6: Connection With The Mains
Stage Blinder 1 LED The Stage Blinder 1 LED can be placed on a flat surface or fitted to any kind of truss with a clamp. Improper installation can cause serious damage to people and property! Connection with the Mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Stage Blinder 1 LED Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

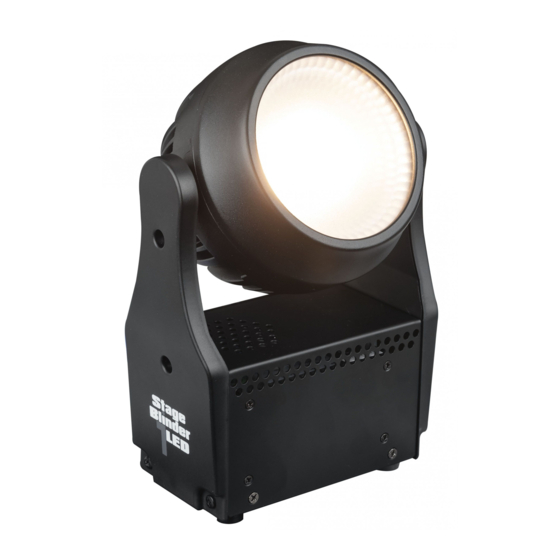

Description of the Device Features The Showtec Stage Blinder 1 LED is an audience blinder with one pod. The unit can be controlled by DMX and holds an 80-Watt Dual White COB. It has compact design and features tungsten simulation. -
Page 9: Overview
07) Cooling fan Installation Remove all packing materials from the Stage Blinder 1 LED. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Multiple Stage Blinders (Dmx Control)
Stage Blinder 1 LED Multiple Stage Blinders (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,8 m on all sides for air circulation. 02) Always use a safety cable (order code 70140 / 70141). 03) Plug the power cord into the pro power IN connector of the device and connect to the mains. -
Page 11: Fixture Linking
Stage Blinder 1 LED Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set in master/slave arrangement. The combined number of channels required by all fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
Stage Blinder 1 LED The Stage Blinder 1 LED can be operated with or without a controller. Control Panel A) MENU button UP button C) DOWN button D) ENTER button OLED display Fig. 03 DMX Addressing The fixtures are individually addressed on a data-link and connected to the controller. -
Page 13: Menu Overview
Stage Blinder 1 LED Menu Overview Order code: 30784... -
Page 14: Main Menu Options
Stage Blinder 1 LED Main Menu Options Upon start-up the display will show a splash screen with the Showtec logo and immediately afterwards: After 2 seconds, the display will show the start screen: The start screen provides the following information:... -
Page 15: Dmx Address
Stage Blinder 1 LED The Main Menu has the following options: Press the UP/DOWN buttons to navigate through the Main Menu. Press the ENTER button to open the submenu. 1. DMX Address In this menu you can set the device’s DMX starting address. -
Page 16: Dmx Lost
Stage Blinder 1 LED 4. DMX Lost In this menu you can select the behavior of the device in case of a DMX failure. 01) Press the UP/DOWN buttons to choose the desired option. There are 2 options available: ●... -
Page 17: Fans Speed
Stage Blinder 1 LED 7. Fans Speed In this menu you can adjust the speed of the cooling fans. 01) Press the UP/DOWN buttons to choose the desired option. There are 3 options available: 02) Press the ENTER button to confirm your choice. -
Page 18: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Stage Blinder 1 LED requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. - Page 19 Stage Blinder 1 LED Problem Probable cause(s) Remedy ● Check if power is switched on and One or more No power to the fixture cables are plugged in fixtures do not function at all Primary fuse blown ● Replace the fuse...
-
Page 20: Product Specifications
Stage Blinder 1 LED Product Specifications Model: Showtec Stage Blinder 1 LED Input voltage: 100-240 V AC, 50/60 Hz Power consumption: 85 W max Fuse: T3A, 250 V Dimensions: 233 x 170 x 87 mm (L x W x H) -
Page 21: Dimensions
Stage Blinder 1 LED Dimensions Design and product specifications are subject to change without prior notice. Website: www.Showtec.info Email: service@highlite.com Order code: 30784... - Page 22 Stage Blinder 1 LED Notes Order code: 30784...
- Page 23 Stage Blinder 1 LED Order code: 30784...
- Page 24 ©2019 Showtec...
