MANUAL
ENGLISH
Kanjo Spot 10
V1
Ordercode: 45010
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kanjo Spot 10 V1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SHOWTEC Kanjo Spot 10 V1

  • Page 1 MANUAL ENGLISH Kanjo Spot 10 Ordercode: 45010 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2: Table Of Contents

    Kanjo Spot 10 Table of contents Warning ......................................2 Unpacking Instructions ................................2 LED Expected Lifespan ................................2 Safety Instructions .................................. 2 Operating Determinations ..............................4 Rigging ..................................... 4 Connection with the mains ..............................5 Return Procedure ................................... 6 Claims ....................................... 6 Description of the device ................................
  • Page 3: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Kanjo Spot 10 • IEC power cable (1,5 m) •...
  • Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
  • Page 5: Operating Determinations

    Kanjo Spot 10 • The user is responsible for correct positioning and operating of the Kanjo. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.
  • Page 6: Connection With The Mains

    Kanjo Spot 10 The Kanjo can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place.
  • Page 7: Return Procedure

    Kanjo Spot 10 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
  • Page 8: Description Of The Device

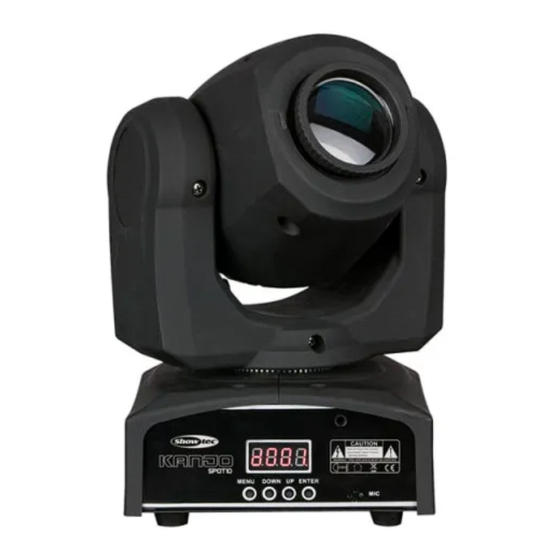

    Kanjo Spot 10 Description of the device Features The Kanjo Spot 10 is an ultra-compact moving head, equipped with a 10W LED Light source. The Kanjo Spot 10 is the ideal solution for small clubs and mobile DJs. • Compact size •...
  • Page 9: Frontside

    Kanjo Spot 10 Frontside Fig. 02 01) LED Lens 02) 4-digit LED Display + control buttons 03) Built-in microphone Backside Fig. 03 04) 3-pin DMX signal connector IN 05) 3-pin DMX signal connector OUT 06) Fuse F1,5AL/250V 07) IEC power connector 100-240V 08) Cooling fan Ordercode: 45010...
  • Page 10: Installation

    Kanjo Spot 10 Installation Remove all packing materials from the Kanjo Spot 10. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty.
  • Page 11: Multiple Kanjos (Dmx Control)

    Kanjo Spot 10 Multiple Kanjos (Master/Slave control) Fig. 04 Multiple Kanjos (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Kanjos and other devices.
  • Page 12: Fixture Linking

    Kanjo Spot 10 Multiple Kanjos DMX Set Up Fig. 05 Note : Link all cables before connecting electric power Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode.
  • Page 13: Control Panel

    Kanjo Spot 10 The Kanjo Spot 10 can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LED display MENU button C) DOWN button D) UP button ENTER button Fig. 06 Control Mode The fixtures are individually addressed on a data-link and connected to the controller.
  • Page 14: Menu Overview

    Kanjo Spot 10 Menu Overview Ordercode: 45010...
  • Page 15: Main Menu Options

    Kanjo Spot 10 Main Menu Options DMX-512 Mode Pan/Tilt Reverse Mode Channel Mode Master (Auto)/Slave Mode Sound-controlled Mode LED Display Continuous/OFF LED Display Reverse Mode Reset Manual Mode Manual DMX Adjustment Mode 1. DMX-512 Mode 01) While in the main menu, press the UP and DOWN buttons until the display shows 02) Press the ENTER button to enter the menu.
  • Page 16: Master (Auto)/Slave Mode

    Kanjo Spot 10 4. Master (Auto)/Slave Mode 01) While in the main menu, press the UP and DOWN buttons until the display shows 02) Press the ENTER button to enter the menu. 03) Press the UP and DOWN buttons to choose one of the two modes: Master/Auto mode Slave mode 04) When the display shows...
  • Page 17: Manual Mode

    Kanjo Spot 10 9. Manual Mode 01) While in the main menu, press the UP and DOWN buttons until the display shows 02) Press the ENTER button to enter the menu. 03) Press the UP and DOWN buttons to choose between the two options: Manual Mode ON Manual Mode OFF 04) If the display shows...
  • Page 18: Dmx Channels

    Kanjo Spot 10 DMX Channels 8 channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 –...
  • Page 19: Channels

    Kanjo Spot 10 Channel 8 – Functions 0-93 Not functional Reset settings Restore factory settings 96-255 Sound-controlled Mode 10 channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540°...
  • Page 20: Maintenance

    Kanjo Spot 10 Channel 9 – Strobe/Shutter Dimmer must be open 8-127 Strobe ON, from slow to fast 128-255 Strobe auto effect, from slow to fast Channel 10 – Functions 0-93 Not functional Reset settings Restore factory settings 96-255 Sound-controlled Mode Maintenance The operator has to make sure that safety-relating and machine-technical installations are to be inspected by an expert after every year in the course of an acceptance test.
  • Page 21: Static Gobo Wheel And Color Wheel

    Kanjo Spot 10 Static Gobo wheel and Color wheel Static Gobo Wheel Fig. 07 Color wheel Fig. 08 Ordercode: 45010...
  • Page 22: Troubleshooting

    Response: Suspect three potential problem areas as: the power supply, the lamp, the fuse. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LED. Return the Kanjo to your Showtec dealer. 03) The fuse. Replace the fuse. See page 19 for replacing the fuse.
  • Page 23: No Response To Dmx

    Kanjo Spot 10 No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try your DMX control again.
  • Page 24: Product Specifications

    Kanjo Spot 10 Product Specifications Model: Showtec Kanjo Spot 10 Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 26W (full output) DMX linking: 30pcs Fuse: F1,5AL/250V Dimensions: 175 x 150 x 278 mm (LxWxH) Weight: 2,6 kg Operating and Programming: Signal pin OUT:...
  • Page 25: Dimensions

    Kanjo Spot 10 Dimensions Ordercode: 45010...
  • Page 26: Notes

    Kanjo Spot 10 Notes Ordercode: 45010...
  • Page 27 Kanjo Spot 10 Ordercode: 45010...
  • Page 28 ©2015 Showtec...
