- Page 1 MANUAL ENGLISH Kanjo Spot 10 Ordercode: 45010 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Kanjo Spot 10 Table of contents Warning ................................... 2 Safety Instructions ..............................2 Operating Determinations ............................4 Rigging ..................................4 Connection with the mains ............................. 5 Return Procedure ..............................6 Claims ..................................6 Description of the device ............................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Kanjo Spot 10 • IEC power cable (1,5 m) •... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Kanjo Spot 10 • The user is responsible for correct positioning and operating of the Kanjo. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
Kanjo Spot 10 The Kanjo can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. -
Page 7: Return Procedure
Kanjo Spot 10 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device

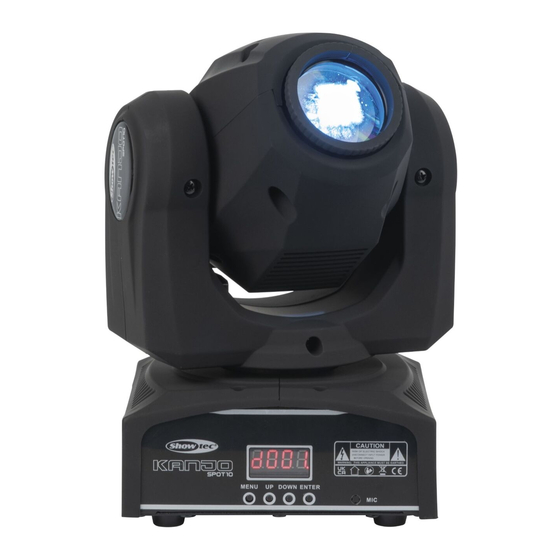

Kanjo Spot 10 Description of the device Features The Kanjo Spot 10 is an ultra-compact moving head, equipped with a 10W White LED. The Kanjo Spot 10 is the ideal solution for small clubs and mobile DJs. Input voltage: 100-240V AC, 50/60Hz ... -
Page 9: Backside
Kanjo Spot 10 Backside Fig. 02 04) 3-pin DMX signal connector IN 05) 3-pin DMX signal connector OUT 06) IEC power connector 100-240V IN + Fuse F3AL/250V 07) Cooling fan Installation Remove all packing materials from the Kanjo Spot 10. Check if all foam and plastic padding is removed. Connect all cables. -
Page 10: Control Modes
Kanjo Spot 10 Control Modes There are 5 modes: • Stand-alone (Auto) • Manual • Sound-controlled • Master/Slave • DMX-512 (8CH, 10CH) One Kanjo (Auto and Manual) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 11: Multiple Kanjos (Dmx Control)
Kanjo Spot 10 Multiple Kanjos (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Kanjos and other devices. 04) Link the units as shown in fig. -
Page 12: Fixture Linking
Kanjo Spot 10 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Control Panel
Kanjo Spot 10 The Kanjo Spot 10 can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LED display MENU button C) UP button D) DOWN button ENTER button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 14: Menu Overview
Kanjo Spot 10 Menu Overview Ordercode: 45010... -
Page 15: Main Menu Options
Kanjo Spot 10 Main Menu Options 1. DMX-512 Mode 2. Pan/Tilt Reverse Mode 3. Operation Modes 4. Channel Mode 5. Display Settings 6. Display Reverse Mode 7. Reset 8. Manual Mode 9. Manual DMX Adjustment Mode (optional) 1. DMX-512 Mode 01) While in main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to enter. -
Page 16: Operation Modes
Kanjo Spot 10 3. Operation Modes 01) While in main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to enter. 03) Press the UP/DOWN buttons to choose one of the 4 options: Slave mode Auto 1 Auto 2 Sound-controlled... -
Page 17: Reset
Kanjo Spot 10 7. Reset 01) While in main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to enter. 03) Press the UP/DOWN buttons to activate/cancel reset. Choose between 04) If the display shows , press the ENTER button. -
Page 18: Dmx Channels
Kanjo Spot 10 DMX Channels 8 channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 –... -
Page 19: Channels
Kanjo Spot 10 Channel 8 – Functions 0-93 Not functional Reset settings Restore factory settings 96-255 Sound-controlled Mode 10 channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540°... -
Page 20: Maintenance
Kanjo Spot 10 Channel 8 – Dimmer 0-255 Dimmer intensity, from dark to brightest Channel 9 – Strobe/Shutter Dimmer must be open 8-127 Strobe ON, from low to high frequency 128-255 Random strobe, from low to high frequency Channel 10 – Functions 0-93 Not functional Reset settings... -
Page 21: Static Gobo Wheel And Color Wheel
Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Kanjo to your Showtec dealer. 03) The fuse. Replace the fuse. See page 19 for replacing the fuse. - Page 22 Kanjo Spot 10 Problem Probable cause(s) Solution • Check if power is switched on and One or more cables are plugged in No power to the fixture fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 23: Product Specifications
Kanjo Spot 10 Product Specifications Model: Showtec Kanjo Spot 10 Input voltage: 100-240V AC, 50/60Hz Power consumption: 26W (full output) DMX linking: 30pcs Fuse: F3AL/250V Dimensions: 175 x 150 x 278 mm (LxWxH) Weight: 2,6 kg Operating and Programming: Signal pin OUT:... -
Page 24: Dimensions
Kanjo Spot 10 Dimensions Ordercode: 45010... -
Page 25: Notes
Kanjo Spot 10 Notes Ordercode: 45010... - Page 26 Kanjo Spot 10 Ordercode: 45010...
- Page 27 Kanjo Spot 10 Ordercode: 45010...
- Page 28 ©2017 Showtec...
