Unit dimensions indoor modules WKF 120/180 Duo

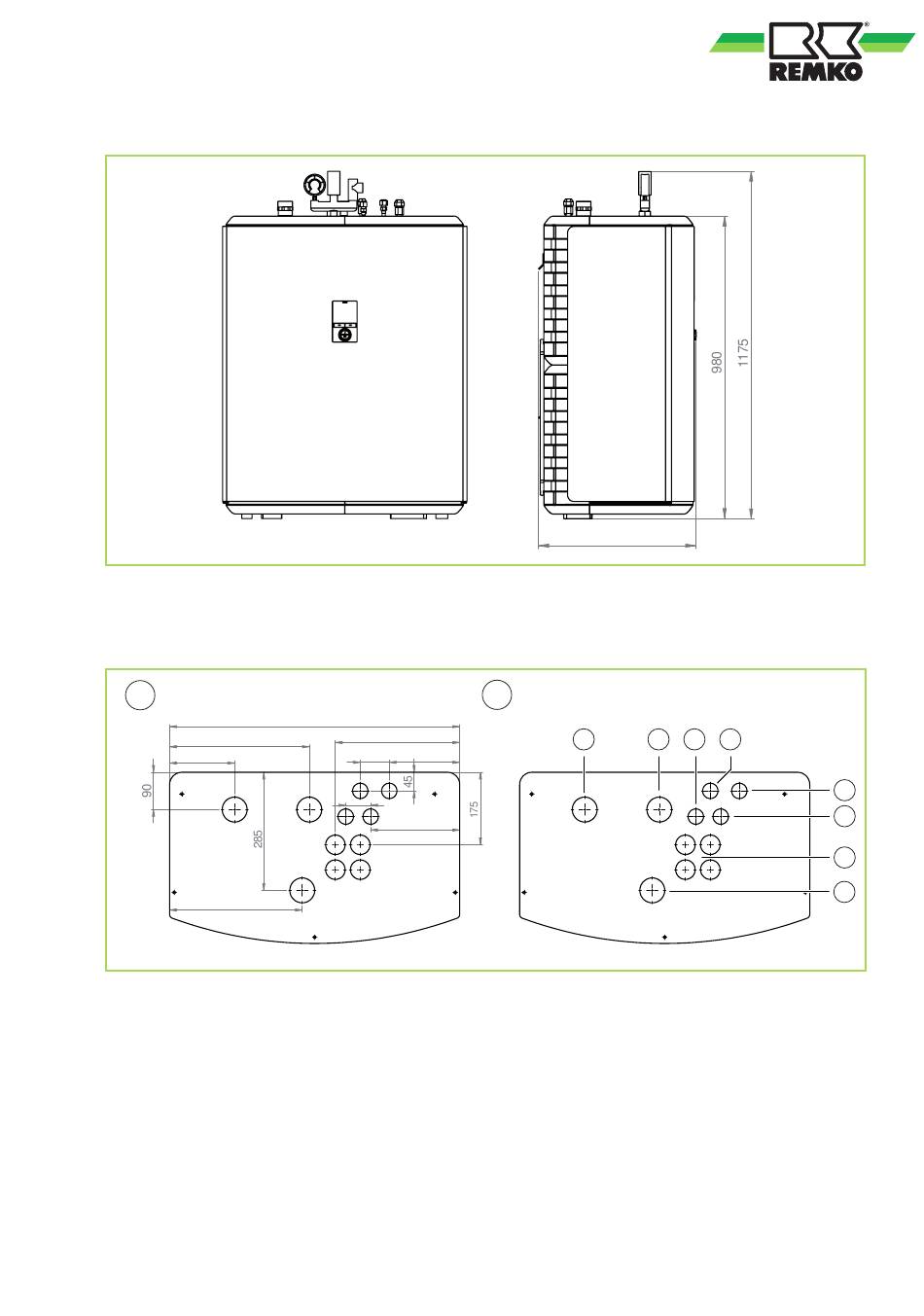

Fig. 8: Unit dimensions indoor modules WKF 120/180 Duo (all dimensions in mm)
Arrangement of the pipe sockets and designations on the pipe connections WKF 120/180 Duo
A
337
157
320
Fig. 9: Arrangement of the pipe sockets and designations on the pipe connections WKF 120/180 Duo
(all dimensions in mm)
A: Pipe connection arrangement
B: Designations of the pipe connections
1: Heat pump inlet, 1 1/2"
2: Heat pump return, 1 1/2"
3: Refrigerant heat gas pipe, Outdoor unit A 5/8"
4: Refrigerant liquid pipe, Outdoor unit B 3/8"
5: Refrigerant liquid pipe, Outdoor unit A 3/8"
6: Refrigerant heat gas pipe, Outdoor unit B 5/8"
7: Cable feedthrough
8: Safety assembly
700
300
70 170
60
215
510
B
2
1
4 5
3
6
7
8
