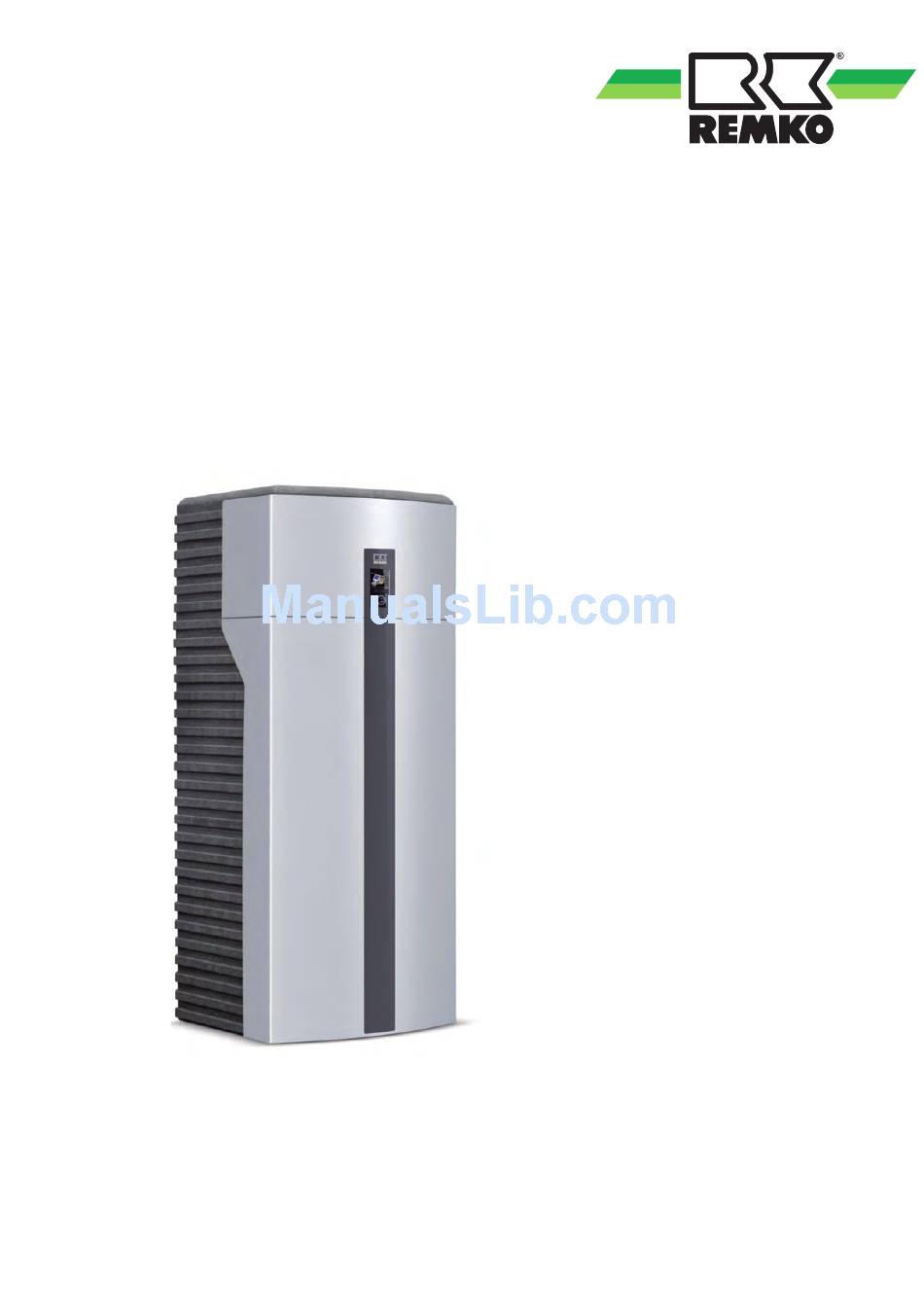

- Page 1 Assembly instructions REMKO WKF-compact Inverter heat pump Installation instructions for the technician Read the instructions prior to performing any task! 0050-2016-06 Edition 1, en_GB...
- Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- prints! Translation of the original assembly instructions...
-
Page 3: Table Of Contents
Table of contents Safety and usage instructions......................4 1.1 General safety notes........................4 1.2 Identification of notes........................4 1.3 Personnel qualifications........................4 1.4 Dangers of failure to observe the safety notes................4 1.5 Safety-conscious working....................... 4 1.6 Safety notes for the operator......................5 1.7 Safety notes for installation, maintenance and inspection.............. -
Page 4: Safety And Usage Instructions
REMKO WKF-compact Safety and usage instructions CAUTION! This combination of symbol and signal word 1.1 General safety notes warns of a potentially hazardous situation, which if not avoided may cause injury or mate- Carefully read the operating manual before com- rial and environmental damage. -
Page 5: Safety Notes For The Operator
"certificate of warranty" to with all applicable regional regulations. REMKO GmbH & Co. KG at the time when the Local regulations and laws such as Water units are purchased and commissioned. -
Page 6: Environmental Protection And Recycling
REMKO WKF-compact 1.11 Environmental protection and recycling 1.12 Transport and packaging Disposal of packaging The devices are supplied in a sturdy shipping con- All products are packed for transport in environ- tainer or inside the heat pump casing. Please mentally friendly materials. Make a valuable contri-... -
Page 7: Installing The Heat Pump
Installing the heat pump Place the indoor unit and the storage tank as close to each other as possible in the instal- Check the delivery for external damage. lation space. (Fig. 1) Due to the size and weight of the WKF-compact indoor unit, it is delivered in two parts. - Page 8 REMKO WKF-compact Remove the box placed on top of the storage Remove the rear casing frame from the tank, as well as the accessories and the storage tank. In the installation space, level cover with the pipe and cable passages.
- Page 9 Unpack the top part of the WKF and place it on a suitable surface. Fig. 9: Unpacking WKF-compact top part 1 Fig. 7: Screw in the corrugated pipes Remove the cable of the pre-installed probe (S08) from the rectangular hole and install the cable on the top of the storage tank.
- Page 10 REMKO WKF-compact Release the casing of the indoor unit Fig. 12: Release the cover Cut out the EPP housing sufficiently in accordance with the marking on the back-left corner using a knife. Fig. 14: Install the indoor unit on the storage tank Fig.
- Page 11 Fig. 19: Connect the servo motor Connect the last three corrugated pipes included in the delivery to the domestic water connections of the storage tank on the front left (Fig. 20 A) and install them upwards through the openings provided for them in the casing cover (Fig.
- Page 12 REMKO WKF-compact Fig. 21: Fix the connection pipes Fig. 23: Remove the fixing frame Installing the side casing. Insert the operating unit from behind into the provided opening on the front panel as far as The two side parts that are included in the the front sheet.
-
Page 13: Unit Dimensions For Indoor Unit
Unit dimensions for indoor unit Unit dimensions for indoor units WKF-compact 792,43 792,43 Fig. 25: Dimensions for indoor units WKF-compact Pipe connection arrangement Fig. 26: Pipe connection arrangement A: WKF B: WKF-compact... - Page 14 REMKO WKF-compact Designations of the pipe connections Fig. 27: Designations of the pipe connections A: WKF Refrigerant liquid pipe 3/8" B: WKF-compact Refrigerant heat gas pipe 5/8" Hot water 2. Heat generator return flow (heat pump outlet) Circulation Safety assembly Cold water supply 10: 2.
-
Page 15: Spare Parts
Spare parts Corrugated tubes and flat gasket (not illustrated) Designation WKF/WKF-compact EDV-Nummer Corrugated tube 1 WT connection on top (WP-VL) = 540mm 259050-1 Corrugated tube 2 WT connection on bottom (WP-RL) = 1340mm 259050-2 Corrugated tube 3 WW connection on top = 1250mm 259050-3 Corrugated tube 4 circ. -
Page 16: Index
REMKO WKF-compact Index General ......4 Identification of notes ....4 Dimensions for Notes for inspection . - Page 18 REMKO WKF-compact...
- Page 20 SFlb Customer Service Our equipment operates precisely and reliably. However, in the event of a fault, REMKO customer service is quickly at the scene. Our comprehensive network of experienced dealers always guarantees quick and REMKO GmbH & Co. KG reliable service.
