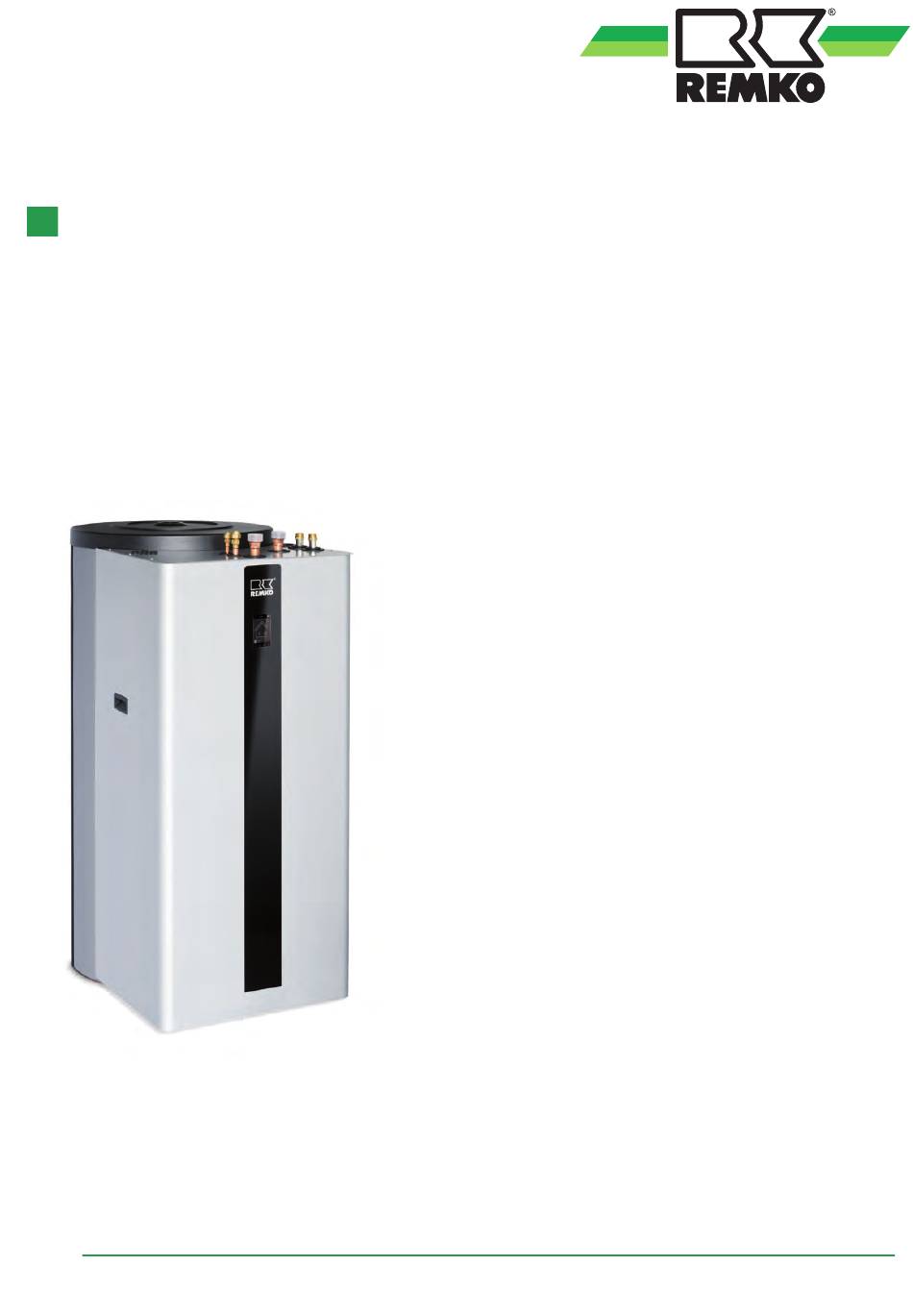

Operating and
installation instructions

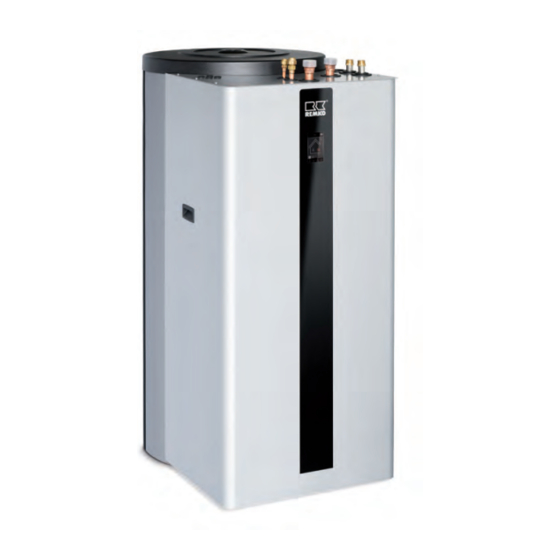

REMKO series WKF NEO-compact
Smart heat pumps
Air/water system for heating or cooling
WKF NEO-compact 70, WKF NEO-compact 120, WKF NEO-compact 180
Instructions for Technicians
0188-2019-08 Edition 7, en_GB
Read the instructions prior to performing any task!
