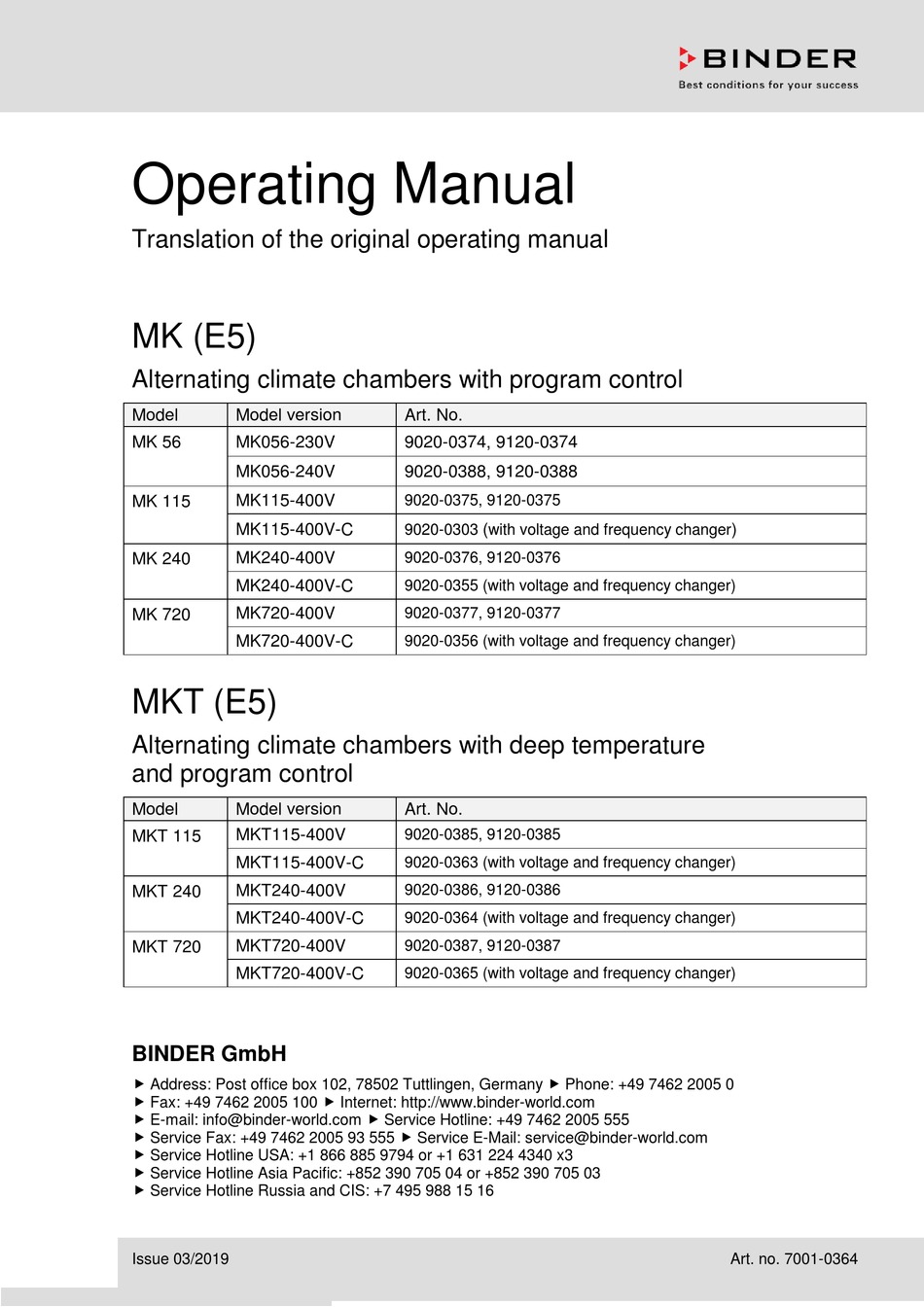

Operating Manual
Translation of the original operating manual
MK (E5)
Alternating climate chambers with program control
Model
Model version
MK 56
MK056-230V
MK056-240V
MK115-400V
MK 115
MK115-400V-C
MK240-400V
MK 240
MK240-400V-C
MK720-400V
MK 720
MK720-400V-C
MKT (E5)
Alternating climate chambers with deep temperature
and program control
Model
Model version
MKT115-400V
MKT 115
MKT115-400V-C
MKT240-400V
MKT 240
MKT240-400V-C
MKT720-400V
MKT 720
MKT720-400V-C
BINDER GmbH
Address: Post office box 102, 78502 Tuttlingen, Germany Phone: +49 7462 2005 0
Fax: +49 7462 2005 100 Internet: http://www.binder-world.com
E-mail: info@binder-world.com Service Hotline: +49 7462 2005 555
Service Fax: +49 7462 2005 93 555 Service E-Mail: service@binder-world.com
Service Hotline USA: +1 866 885 9794 or +1 631 224 4340 x3
Service Hotline Asia Pacific: +852 390 705 04 or +852 390 705 03
Service Hotline Russia and CIS: +7 495 988 15 16
Issue 03/2019
Art. No.
9020-0374, 9120-0374
9020-0388, 9120-0388
9020-0375, 9120-0375
(
9020-0303
with voltage and frequency changer
9020-0376, 9120-0376
9020-0355 (with voltage and frequency changer)
9020-0377, 9120-0377
9020-0356 (with voltage and frequency changer)
Art. No.
9020-0385, 9120-0385
9020-0363 (with voltage and frequency changer)
9020-0386, 9120-0386
9020-0364 (with voltage and frequency changer)
9020-0387, 9120-0387
9020-0365 (with voltage and frequency changer)
)
Art. no. 7001-0364
Advertisement
Table of Contents
Related Manuals for Binder MK Series
Summary of Contents for Binder MK Series
- Page 1 Fax: +49 7462 2005 100 Internet: http://www.binder-world.com E-mail: info@binder-world.com Service Hotline: +49 7462 2005 555 Service Fax: +49 7462 2005 93 555 Service E-Mail: service@binder-world.com Service Hotline USA: +1 866 885 9794 or +1 631 224 4340 x3 ...
-
Page 2: Table Of Contents
Contents SAFETY ........................6 Legal considerations ........................... 6 Structure of the safety instructions ...................... 6 1.2.1 Signal word panel ........................6 1.2.2 Safety alert symbol ........................7 1.2.3 Pictograms ..........................7 1.2.4 Word message panel structure ....................8 Localization / position of safety labels on the chamber ............... 8 Type plate ............................ - Page 3 SET-POINT ENTRY IN “FIXED VALUE” OPERATING MODE ......40 Set-point entry through the “Setpoints” menu ................... 40 Direct setpoint entry via Normal display .................... 41 Special controller functions via operation lines ................. 41 TIMER PROGRAM: STOPWATCH FUNCTION ........... 43 Starting a timer program ........................43 8.1.1 Performance during program delay time ................
- Page 4 11.2 State of alarm ............................ 68 11.3 Resetting an alarm, list of active alarms ................... 69 11.4 Activating / deactivating the audible alarm (alarm buzzer) ..............69 12. TEMPERATURE SAFETY DEVICES ..............70 12.1 Over temperature protective device (class 1) ................... 70 12.2 Overtemperature safety controller class 2 ..................
- Page 5 21.2.1 Cleaning ..........................111 21.2.2 Decontamination ........................113 21.3 Sending the chamber back to BINDER GmbH ................114 22. DISPOSAL ......................114 22.1 Disposal of the transport packing ....................114 22.2 Decommissioning ..........................115 22.3 Disposal of the chamber in the Federal Republic of Germany ............115 22.4 Disposal of the chamber in the member states of the EU except for the Federal Republic of...
-
Page 6: Safety
Understanding and observing the instructions in this operating manual are prerequisites for hazard-free use and safety during operation and maintenance. In no event shall BINDER be held liable for any dam- ages, direct or incidental arising out of or related to the use of this manual. -
Page 7: Safety Alert Symbol
WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious (irreversible) injury CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor (reversible) injury CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in damage to the product and/or its functions or of a property in its proximity. -
Page 8: Word Message Panel Structure
Service label Figure 1: Position of labels on the chamber Keep safety labels complete and legible. Replace safety labels that are no longer legible. Contact BINDER service for these replacements. MK / MKT (E5) 03/2019 page 8/158... -
Page 9: Type Plate
Made in Germany 78532 Tuttlingen / Germany www.binder-world.com Figure 2: Type plate (example of MKT 240 regular chamber) Indications of the type plate (example) Information BINDER Manufacturer: BINDER GmbH MKT 240 Model Alternating climate chamber Device name Serial No. 00000000000000 Serial no. -
Page 10: General Safety Instructions On Installing And Operating The Chamber
213-850 on safe working in laboratories (formerly BGI/GUV-I 850-0, BGR/GUV-R 120 or ZH 1/119, issued by the employers’ liability insurance association) (for Germany). BINDER GmbH is only responsible for the safety features of the chamber provided skilled electricians or qualified personnel authorized by BINDER perform all maintenance and repair, and if components relating to chamber safety are replaced in the event of failure with original spare parts. - Page 11 Any solvent contained in the charging material must not be explosive or inflammable. I.e., irrespective of the solvent concentration in the steam room, NO explosive mixture with air must form. The temperature inside the chamber must lie below the flash point or below the sublimation point of the charging material. Familiarize yourself with the physical and chemical properties of the charging material, as well as the con- tained moisture constituent and its behavior with the addition of heat energy.
-
Page 12: Intended Use
Such ingredients include in particular acids and halides. Any corrosive damage caused by such ingredients is excluded from liability by BINDER GmbH. In case of foreseeable use of the chamber there is no risk for the user through the integration of the chamber into systems or by special environmental or operating conditions in the sense of EN 61010- 1:2010. -
Page 13: Operating Instructions
Operating instructions Depending on the application and location of the chamber, the operator of the alternating climate chamber must provide the relevant information for safe operation of the chamber in a set of operating instructions. Keep these operating instructions with the chamber at all times in a place where they are clearly visible. -
Page 14: Chamber Description
COM™ 4 Multi Management Software (option, chap. 20.1). The chamber comes regularly equipped with an Ethernet serial interface for computer communication. In addition, the BINDER APT-COM™ 4 Multi Management Software (option) permits networking up to 100 chambers and connecting them to a PC for controlling and programming, as well as recording and representing temperature data. -
Page 15: Chamber Overview
Chamber overview Figure 3: Alternating climate chamber (example: MK 56) Instrument panel Door handle Inspection window Chamber door Refrigerating machine, maintenance access flaps Instrument panel 5,7" controller display with touchscreen USB interface Pilot lamp Figure 4: Triangle instrument panel with program controller MB2 and USB interface MK / MKT (E5) 03/2019 page 15/158... -
Page 16: Lateral Control Panel
(option) not used not used Switch for water cooling (option for MK 56, for other chambers available via BINDER Individual 2 zero-voltage switching outputs via op- Customized Solutions) eration lines (MKT, option with MK)) Temperature safety device class 2 for over and... -
Page 17: Main Power Switch (Mk 56)
Main power switch (MK 56) This switch allows completely switching off the chamber (de-energized condition). Figure 6: Main power switch (1) in the MK 56 lateral control panel Rear power switch (MK / MKT 115, 240, 720) This switch allows completely switching off the chamber (de-energized condition). (12) Figure 7: Rear view MK/MKT 115, 240, 720 Main power switch On / Off... -
Page 18: Rear Chamber View
Rear chamber view (20) (16) (17) (19) Figure 8: MK 56 rear chamber view with options water cooling and compressed air connection (12), (13), (14), (15) not used (16) Connection “OUT” for cooling water outlet with screw thread ¾’’ for hose ½“, with union nut (option water cooling) (17) Connection “IN”... - Page 19 (20) Compressed air connection (option): Cou- screw thread ¾’’ for hose ½“, with union nut pling connector to connect compressed air (water cooling option, available via BINDER or the compressed air dryer (option) Individual Customized Solutions) (17) Connection “IN” for cooling water inlet with screw thread ¾’’...
-
Page 20: Completeness Of Delivery, Transportation, Storage, And Installation
Note on second-hand chambers (Ex-Demo-Units): Second-hand chambers are chambers that were used for a short time for tests or exhibitions. They are thoroughly tested before resale. BINDER ensures that the chamber is technically sound and will work flawlessly. Second-hand chambers are marked with a sticker on the chamber door. Please remove the sticker before commissioning the chamber. -
Page 21: Guidelines For Safe Lifting And Transportation
Without the pallet the chamber is in imminent danger of overturning. • Permissible ambient temperature range during transport: -10 °C / 14 °F to +60 °C / 140 °F. You can order transport packing and pallets for moving or shipping purposes from BINDER service. Storage Intermediate storage of the chamber is possible in a closed and dry room. - Page 22 CAUTION Danger of overheating. Damage to the chamber. ∅ Do NOT set up chambers in non-ventilated recesses. Ensure sufficient ventilation for dispersal of the heat. • Permissible ambient temperature range during operation: +18 °C / 64.4 °F to +32 °C / 89.6 °F. At ele- vated ambient temperature values, fluctuations in temperature can occur.
-
Page 23: Installation And Connections
• pH value 4-7 • connection pressure: 4 to 10 bar BINDER GmbH is NOT responsible for the water quality at the user’s site. Any problems and malfunctions that might arise following use of water of deviating quality is excluded from liability by BINDER GmbH. -
Page 24: Installation Of The Voltage And Frequency Changer (Chambers With Voltage And Frequency Changer)
• Protect both ends of the hose with two of the four supplied hose clamps. Before turning on the cham- ber, check the connection for leaks. Water consumption: The average water demand is not helpful for the design of the water supply line, since the supply line must provide sufficient dimensions for peak loads. - Page 25 (a) Eyelets for lifting with a lifting crane or fork lifter (b) Positions for a fork lifter Figure 11: Positioning of aids for lifting the voltage and frequency changer For the installation of the voltage and frequency changer behind the chamber, provide a rear wall distance of the chamber of approx.
-
Page 26: Electrical Connection
VDE directives (for Germany). We recommend the use of a residual current circuit breaker. • MK 56: Only use original connection cables from BINDER • Pollution degree (acc. to IEC 61010-1): 2 • Over-voltage category (acc. to IEC 61010-1): II CAUTION Danger of incorrect power supply voltage. -
Page 27: Connecting The Voltage And Frequency Changer (For Chambers Equipped With A Voltage And Frequency Changer)
4.4.2 Connecting the voltage and frequency changer (for chambers equipped with a voltage and frequency changer) The voltage and frequency changer is supplied with a fixed power connection cable without a plug. It is protected against excess-current with 3 internal overload releases. The connection is made by the cus- tomer. -
Page 28: Functional Overview Of The Mb2 Chamber Controller
(with MK 56) and special controller functions for each program section. You can enter values or programs directly at the controller or use the APT-COM™ 4 Multi Management Software (op- tion) specially developed by BINDER. Operating mode... -
Page 29: Operating Functions In Normal Display
Operating functions in normal display Current operating mode Text list for information icons Date, time, authorization level of the logged-in user, memory Quick setpoint entry Continue to next screen Back to Normal display Information Program start Setpoint entry Event list Display of active alarms Access to main menu Figure 15: Operating functions of the MB2 controller in normal display (sample values with MKF 56) -
Page 30: Display Views: Normal Display, Program Display, Chart-Recorder Display
Display views: Normal display, program display, chart-recorder display Press the Change view icon to toggle between normal display, program display and chart- recorder display. Press the Normal display icon to return from program display and chart recorder display back to Normal display. -
Page 31: Controller Icons Overview
Controller icons overview Navigation icons in Normal display Icon Signification Function Main menu Access from Normal display to the main menu Alarm Access from Normal display to the list of active alarms Event list Access from Normal display to the event list Access from Normal display to the setpoint entry menu: setpoint Setpoint setting entry for Fixed value operation, safety controller settings... - Page 32 Functional icons in the chart recorder display Icon Signification Function Show legend Show legend Hide legend Hide legend Switch legend Switch between legend pages Show indications “Door open” (B1), “Anti-condensat.” (B2), “Com- Show indications pressed air” (B3) Hide indications “Door open” (B1), “Anti-condensat.” (B2), “Com- Hide indications pressed air”...
-
Page 33: Operating Modes
Operating modes The MB2 program controller operates in the following operating modes: • Idle mode The controller is not functional, i.e., there is no heating or refrigeration. The fan is off. The chamber approximates ambient values. You can activate and deactivate this operating mode with the “Idle mode” control contact in Fixed value operating mode (chap. -
Page 34: Controller Menu Structure
Controller menu structure Use the navigation icons in the screen footer in Normal display to access the desired controller func- tions. The available functions depend on the current authorization level “Service”, “Admin” or “User” (chap. 13.1). This is selected either during login or can be available without password protection. Main menu: program settings, further information, “Service”... -
Page 35: Main Menu
• Access to service data, controller reset to factory settings (chap. 5.5.3) • Available only for users with “Service” and “Admin” authorization level. Full functional range only for BINDER Service (users with “Service” authorization level). “Programs” submenu • Access to the controller’s program functions (chap. 8, 9, 10) -
Page 36: Settings" Submenu
5.5.3 “Service” submenu The “Service” submenu is available for users with “Service” or “Admin” authorization level. When logged-in with “Admin” authorization level the user will find information to tell the BINDER Service in service case. Path: Main menu > Service Serial number of the chamber, setup version chap. -
Page 37: Principle Of Controller Entries
Principle of controller entries In the selection and entry menus there are icons displayed in the footers which you can use to take over the entry or cancel it. Selection menu (example) Entry menu (example) After completing the settings there are the following possibilities: Press the Confirm icon to take over the entries and exit the menu or continue the menu se- quence. -
Page 38: Performance When Opening The Door
Performance when opening the door When you open the door the fan starts running with minimum speed (30 %). After 60 seconds from opening the door, heating, refrigeration, and fan turn off. The compressor contin- ues operating during 5 minutes without cooling function. After closing the door, heating, refrigeration, and fan turn on again. -
Page 39: Controller Settings Upon Start Up
Controller settings upon start up The window “Language selection” enables the language selection, in case that it’s activated in the “Start- up” menu. Afterwards occurs a request of the time zone and the temperature unit. The controller will function in the operating mode, which was active before the last shut-down. It controls temperature in fixed value operating mode to the last entered values and in the program mode to the set points achieved beforehand. -
Page 40: Set-Point Entry In "Fixed Value" Operating Mode
Set-point entry in “Fixed value” operating mode In Fixed value operating mode you can enter a temperature set-point, the fan speed(with MKF 56), and the switching-state of up to 16 operation lines. All settings made in Fixed value operating mode remain valid until the next manual change. They are saved also when turning off the chamber or in case of toggling to Idle Mode or Program Mode. -
Page 41: Direct Setpoint Entry Via Normal Display
When entering a value outside the setting range, the message: “Value outside of limits! (Min: xxx, Max: xxx)” appears (xxx is a wildcard for the limits of the respective parameter). Press the Confirm icon and repeat the entry with a correct value. After completing the settings, press the Confirm icon to take over the entries and exit the menu, or press the Close icon to exit the menu without taking over the entries. - Page 42 Use the “Setpoints” menu to configure the operation lines. “Functions on/off” entry menu (example: MK “Setpoints” menu. 56). Select the field “Functions on/off”. Mark / unmark the checkbox to activate / deacti- vate the desired function and press the Confirm icon Activated operation line: switching status “1”...
-
Page 43: Timer Program: Stopwatch Function
Timer program: stopwatch function During an entered duration the controller constantly equilibrates to the setpoints entered in Fixed value operation mode (temperature, fan speed (with MK 56), configuration of the operation lines). This duration can be entered as a “Timer program”. During the program runtime, any setpoint changes do not become effective;... -
Page 44: Stopping A Running Timer Program
Stopping a running timer program 8.2.1 Pausing a running timer program Press the Program pause icon to interrupt the program. The program is paused. The program runtime stops running down, the time display flashes. There are the following options: Press the Program start icon to continue the program Press the Cancelling icon to cancel the program 8.2.2 Cancelling a running timer program Press the Program cancelling icon to cancel the program. -
Page 45: Time Programs
Time programs The MB2 program controller permits programming time programs with real-time reference. It offers 25 program memory positions with up to 100 program sections each. For each program section you can enter a temperature set-point, fan speed (with MK 56), section dura- tion, type of temperature transition (ramp or step) and the tolerance range. -
Page 46: Performance During Program Delay Time
9.1.1 Performance during program delay time During the configured program delay time until program start, the controller equilibrates to the current setpoints of Fixed value operation mode. Modifications of these setpoints are effective. When the config- ured moment for program start is reached, the program delay time ends and the program starts running. Stopping a running time program 9.2.1 Pausing a running time program Press the Program pause icon to interrupt the program.. -
Page 47: Creating A New Time Program
Creating a new time program Path: Main menu > Programs > Time program “Time program” menu: Enter the program name and, if desired, addi- overview of the existing programs. tional program information in the corresponding fields. Select an empty program place. Press the Confirm icon. -
Page 48: Deleting A Time Program
Program editor: “Edit program” menu Select the desired function and press the Confirm icon. The program editor offers following options: • Change the program name • Copy program • Replace program: Replacing an new or an existing program with the copied program. This menu point is visible only after a program has been copied. -
Page 49: Section Editor: Section Management
Section editor: section management Path: Main menu > Programs > Time program Select the desired program. Program view. Section view (example: section 1). Select the desired program section There are the following options: (example: section 1) Select a parameter to enter or modify the according value (chap. -
Page 50: Add A New Program Section
9.6.1 Add a new program section Section editor: “Edit section” menu. Select “Create new section” and press the Confirm icon. Then select whether to insert the new section before or after the current section. Press the Confirm icon. The new section opens. 9.6.2 Copy and insert or replace a program section Section view (example: section 1). -
Page 51: Deleting A Program Section
Press the Edit icon to open the section editor if you want the current section to be replaced or the copied section to be inserted before or after it Section view (example: section 1). Program view. Select the section to be replaced or before or Press the Edit icon to open the section editor after which the copied section shall be inserted (example: section 2) and press the Confirm... -
Page 52: Value Entry For A Program Section
Value entry for a program section Path: Main menu > Programs > Time program Select the desired program and section. The section view gives access to all parameters of a program section. You can enter or modify the values. Program name and section number Section duration Type of setpoint transition: ramp or step Operation lines... -
Page 53: Set-Point Ramp And Set-Point Step
9.7.2 Set-point ramp and set-point step You can define the type of temperature transitions for each individual program section. “Ramp” mode: Gradual changes of temperature The set-point of a given program section functions as the section’s start temperature. During the section’s duration, the set-point gradually passes to the set-point of the subsequent program section. -
Page 54: Special Controller Functions Via Operation Lines
“Ramp” and “Step” mode example (representation of a temperature course) W/°C t/min. Corresponding program table Duration Temperature Fan (MK 56) Section No. Ramp or Step [hh:mm:ss] [°C] 00:10:00 40.0 xxxx Step 00:20:00 60.0 xxxx Step 00:10:00 80.0 xxxx Step 00:20:00 40.0 xxxx Step... -
Page 55: Setpoint Entry
Use the Section editor to configure the operation lines. “Functions on/off” entry menu. Section view. Mark / unmark the checkbox of the desired Select the field “Functions on/off”. function to activate / deactivate it and press the Confirm icon. The controller returns to the section view. Activated operation line: switching status “1”... -
Page 56: Tolerance Range
9.7.5 Tolerance range You can specify a temperature program tolerance range for each program section with different values for the tolerance minimum and maximum. When the actual value exceeds the given threshold, the program is interrupted. This is indicated on the display (see below). When the actual temperature is situated again within the entered tolerance limits, the program automatically continues. -
Page 57: Repeating One Or Several Sections Within A Time Program
9.7.6 Repeating one or several sections within a time program You can repeat several subsequent sections together. It is not possible to define the start section the same time also as the target section, therefore you cannot repeat a single individual section. Enter the desired number of repetitions in the field „Number of repetitions“... -
Page 58: Week Programs
Week programs The MB2 program controller permits programming week programs with real-time reference. It offers 5 week program places in total with up to 100 shift points for each week program. Path: Main menu > Programs> Week program 10.1 Starting an existing week program In Normal display press the Program start icon to access the “Program start”... -
Page 59: Creating A New Week Program
10.3 Creating a new week program Path: Main menu > Programs > Week program Enter the program name and, if desired, addi- “Week program” menu: tional program information in the correspond- overview of the existing programs. ing fields. Select an empty program place. Select the set-point course “Ramp”... -
Page 60: Program Editor: Program Management
10.4 Program editor: program management Path: Main menu > Programs > Week program “Week program” menu: Program view (example: program 1). overview of the existing programs. If a new program has been created, there is just one program section. Select an existing program (example: pro- gram 1). -
Page 61: Deleting A Week Program
Program view. To add a new section, select “Create new section” and press the Confirm icon. With a new section no weekday is specified. There- fore the section is first marked in red and cannot be The program view opens. saved. -
Page 62: Section Editor: Section Management
10.5 Section editor: section management Path: Main menu > Programs > Week program Select the desired program. Program view. Section view (example: section 1). Select the desired program section There are the following options: (example: section 1) ... -
Page 63: Add A New Program Section
10.5.1 Add a new program section Section editor: “Edit section” menu. Program view. Select “Create new section” and press the With a new section no weekday is specified. There- Confirm icon. fore the section is first marked in red and cannot be saved. -
Page 64: Deleting A Program Section
Select “Replace section” to replace the selected sec- tion with the copied section Select “Insert section” to additionally add the copied section. Press the Confirm icon. If you selected “Insert section” the sections are auto- matically arranged in the correct chronological order. Section editor: “Edit section”... -
Page 65: Weekday
“Change program name” menu. In the field “Course” select the desired setting “Ramp” or “Step” and press the Confirm icon. 10.6.2 Weekday In the field “Weekday” select the desired weekday. With “Daily” selected, this section will run every day at Section view. -
Page 66: Setpoint Entry
10.6.4 Setpoint entry • Select the field “Temperature” and enter the desired temperature setpoint. Setting range: MK -50 °C / -58°F up to 180 °C / 356 °F, MKT: -80 °C / -112 °F up to 180 °C / 356 °F: Confirm entry with Confirm icon. -
Page 67: Notification And Alarm Functions
Notification and alarm functions 11.1 Notification and alarm messages overview 11.1.1 Notifications Notifications are indicated by information icons displayed in the screen header in Normal display An information icon serves as an indication of a certain condition. If this condition persists, in some cases an alarm will be triggered after a fix or configurable interval. As long as the condition persists, the information icon therefore continues to be displayed also in state of alarm. -
Page 68: Alarm Messages
MK/MKT 115, 240, 720: Compressor immediately Fault in refrigerating machine. Contact BINDER ser- overcurrent vice. Alarm messages are displayed in the list of active alarms until acknowledging them. They are also shown in the event list. 11.2 State of alarm 1. -
Page 69: Resetting An Alarm, List Of Active Alarms
11.3 Resetting an alarm, list of active alarms Normal display in state of alarm (example). List of active alarms. Press the Alarm icon Press the Reset alarm icon. Pressing the Reset alarm icon mutes the buzzer for all active alarms. The icon then disappears. •... -
Page 70: Temperature Safety Devices
The user cannot restart the chamber again. The protective cut-off device is located internally. Only a service specialist can replace it. Therefore, please contact an authorized service provider or BINDER Service. 12.2 Overtemperature safety controller class 2 The chambers are regularly equipped with an electronic overtemperature safety controller (temperature safety device class 2 according to DIN 12880:2007). -
Page 71: Setting The Safety Controller
Example: Desired temperature value: 40 °C, desired safety controller value: 45 °C. Possible settings for this example: Temperature set point Safety controller mode Safety controller set-point Limit (absolute) 45 °C 40 °C Offset (relative) 5 °C 12.2.2 Setting the safety controller Press the Setpoint setting icon to access the “Setpoint”... -
Page 72: Message And Measures In The State Of Alarm
12.2.3 Message and measures in the state of alarm The state of alarm is indicated visually in Normal display by the alarm message “Safety controller alarm” and the screen header flashing in red color. If the buzzer is enabled (chap. 11.4) there is an additional audible alert (chap. -
Page 73: Over/Under Temperature Safety Device Class 2 (Option)
12.3 Over/under temperature safety device class 2 (option) The over-/under temperature safety device (4) consists of two entry modules (4a) and (4b) located in the lateral control panel. Both mod- ules can be set from -50 °C / -58°F (MK) or -80 °C / -112 °F (MKT) up to 200 °C / 392°F and serve to define the maximum high and low tem- perature limits. -
Page 74: User Management
• All passwords can be changed in the “log out” submenu (chap. 13.3). “Service” authorization level • Authorization level only for BINDER service • Extensive authorization for controller operation and configuration, access to service data • The passwords for “Service”, “Admin” and “User” authorization levels can be changed in the “log out”... - Page 75 Operation after user login At user login, the authorization level is selected and confirmed by entering the respective pass- word. Following user login, controller operation is avail- able, recognizable by the open-lock icon in the header. The available controller functions corre- spond to the user’s authorization level.
- Page 76 Information window To check the authorization level of the user currently logged-in, select in Normal display the arrow far right in the display header. The information window shows date and time, the controller’s free memory space and under “Authoriza- tion” the authorization level of the current user. If passwords have been assigned for all authorization levels, a user without login (password entry) has no authorization.
-
Page 77: Log In
13.2 Log in Path: Main menu > User > Log in Controller with- out a user logged-in Selection of user type (example) All selection possibilities are password protected Controller with logged-in user After completing the settings, press the Confirm icon to take over the entries and exit the menu, or press the Close icon to exit the menu without taking over the entries. -
Page 78: Log Out
13.3 Log out Path: Main menu > User > Log out User logoff with “Admin” authorization Controller Controller with without a logged-in user user logged- User logoff with “User” authorization Controller Controller with without a logged-in user user logged- 13.4 User change If the password function has been deactivated (chap.13.5.2) this function is not available. -
Page 79: Password Assignment And Password Change
User selection (example) All selection possibilities are password protected Controller with logged-in user 13.5 Password assignment and password change This function is not available for a user logged-in with “User” authorization. 13.5.1 Password change A logged-in user can change the passwords of his current level and of the next lower level(s). Example: A user with “Admin”... - Page 80 Selection of the authorization level Enter desired password. If desired, press the Change (example: view with “Admin” authorization) keyboard icon to access other entry windows. In the “Keyboard switch” window you can select different keyboards to enter uppercase and lowercase letters, digits, and special characters.
-
Page 81: Deleting The Password For An Individual Authorization Level
13.5.2 Deleting the password for an individual authorization level A user logged-in with “Service” or “Admin” authorization can delete the passwords of his current level and of the next lower level(s). To do this no password is entered during a password change. Path: Main menu >... -
Page 82: New Password Assignment For "Service" Or "Admin" Authorization Level When The Password Function Was Deactivated
13.5.3 New password assignment for “Service” or “Admin” authorization level when the password function was deactivated If the password protection for an authorization level has been deactivated, i.e., no password is assigned, no login for this level is possible. Therefore access to this authorization level is available without login. If the password for the “Service”... -
Page 83: Activation Code
13.6 Activation code Certain functions of the controller can be unlocked with a previously generated activation code. The activation code enables access to functions available only in the “Service” authorization level by users without a “Service” authorization. Such functions include e.g., adjustment or extended configurations. The activation code is available in authorization levels. -
Page 84: General Controller Settings
General controller settings Most of the general settings can be accessed in the “Settings” submenu, which is available for users with “Service” or “Admin” authorization level. It serves to enter date and time, select the language for the con- troller menus and the desired temperature unit and to configure the controller’s communication functions. 14.1 Selecting the controller’s menu language The MB2 program controller communicates by a menu guide using real words in German, English, French, Spanish, and Italian. - Page 85 Or later: Path: Main menu > Settings > Date and time “Date and time” submenu. “Date / time” entry menu. Select the field “Date / time”. Enter date and time and press the Confirm icon. “Date and time” submenu. “Date and time” submenu. In the field “Daylight saving time switch”...
-
Page 86: Selecting The Temperature Unit
14.3 Selecting the temperature unit Following start-up of the chamber: Or later: Path: Main menu > Settings > Chamber Select the desired temperature unit and press the Confirm icon. Change of the temperature unit between °C and °F. If the unit is changed, all values are converted accordingly C = degree Celsius 0 °C = 31°F... -
Page 87: Touchscreen Calibration
• Select the field “Brightness”. Move the grey slide to the left or right to define the brightness of the display • left = darker (minimum value: 0) • right = brighter (maximum value: 100) Press the Confirm icon. • Select the field “Wait time for screen saver” and enter the desired waiting time for the screen saver in seconds. -
Page 88: Network And Communication
This menu allows to configure the communication parameters of the RS485 interface. The device address is required to recognize chambers with this interface type in a network, e.g. when connecting it to the optional BINDER APT-COM™ 4 Multi Management Software (chap. 20.1). In this case do not change the other parameters. -
Page 89: Ethernet
14.5.2 Ethernet 14.5.2.1 Configuration Path: Main menu > Settings > Ethernet “Ethernet” submenu. • In the field “IP address assignment” select the desired setting “Automatic (DHCP)“ or “Manual“. With selection “Manual” you can enter the IP- address, the subnet mask and the standard gateway manually. -
Page 90: Display Of Mac Address
Internet. The IP address is available via Chamber information > Ethernet. The BINDER web server opens. Enter the user name and password which have been assigned for the web server in the controller menu. This enables online access to the controller display, to see e.g., the event list or error messages. In this view no settings can be changed. -
Page 91: E-Mail
14.5.4 E-Mail As soon as an alarm was triggered, an e-mail is sent to the configured e-mail address. Path: Main menu > Settings > Email E-mail address entry: “Email” submenu. Select the desired e-mail address field and enter the e- mail address. -
Page 92: Usb Menu: Data Transfer Via Usb Interface
14.6 USB menu: Data transfer via USB interface The USB port is located in the instrument box. When you insert a USB-stick, the “USB” menu opens. Depending on the user’s authorization level, different functions (highlighted in black) are available for the logged-in user. -
Page 93: Turning Off The Interior Lighting Automatically
14.7 Turning off the interior lighting automatically Press the Interior lighting icon to turn on and off the interior lighting. Additionally. you can define in this menu the interval after which the turned-on light will turn off automati- cally. Path: Main menu >... -
Page 94: Current Operating Parameters
15.2 Current operating parameters Press the Information icon to access the “Info” menu from Normal display. “Info” menu. Select the desired information. • Select “Program operation” to see infor- mation on a currently running program. • Select “Setpoints“ to see information on the entered setpoints and operation lines. -
Page 95: Event List
15.4 Technical chamber information Path: Main menu > Device info Chamber name and setup Versions of CPU, I/O module and safety con- for BINDER troller Service Information on digital and analog inputs and for BINDER outputs and phase angle outputs... -
Page 96: Self-Test Function (Mk 56)
You can export them using the controller’s USB interface and send them to BINDER Service (use function “Export service data” to USB stick, chap. 14.6). BINDER Service will evaluate the data using an analyzing tool. - Page 97 Alarm message “Self-test active”. “Active alarms” menu. The self-test program is running. The indicated The zero-voltage relay alarm output is not activat- set-points are non-functional. ed with the alarm message “Self-test active”. With enabled buzzer: the buzzer sounds. Press Press the Reset alarm icon to mute the buzzer. the Alarm icon to access the “Active alarms”...
-
Page 98: Chart Recorder Display
Chart recorder display This view offers graphic representation of the measurement course. Data representation imitates a chart recorder and allows recalling any set of measured data at any point of time taken from the recorded period. 16.1 Views Press the Change view icon to access the pen recorder display. 16.1.1 Show and hide legend Show legend Hide legend... -
Page 99: Show And Hide Specific Indications
16.1.3 Show and hide specific indications Show indications Hide indications Press the Show indications icon to display the indications “Door open” (B1), “Anti-condensat.” (B2), “Compressed air” (B3). Indications “Door open” (B1), “Anti-condensat.” (B2), and “Compressed air” (B3) are displayed. 16.1.4 History display History display Press the History display icon to change to the history display. - Page 100 History display: Curve selection Curve selection Press the Curve selection icon to access the “Curve selection” submenu. “Curve selection” submenu. Select the curves to be displayed by checking the checkbox of the corresponding parameter. Press the Confirm icon History display: Search the required instant Search Press the Search icon to access the “Search”...
- Page 101 History display: Zoom function Zoom Press the Zoom icon to access the “Zoom” submenu. “Zoom” submenu. Select the zoom factor and press the Confirm icon History display: Show and hide scroll buttons to scroll to an instant Show scroll buttons Hide scroll buttons Press the Show scroll buttons icon to access the “Page selection”...
-
Page 102: Setting The Parameters
16.2 Setting the parameters This menu allows setting the storage interval, the type of values to be shown and the scaling of the tem- perature charts. Path: Main menu > Settings > Measurement chart “Measurement chart” submenu. • Select the field “Storage interval” and enter the desired storage interval. Confirm entry with Confirm icon. -
Page 103: Notes On Refrigerating Operation
Notes on refrigerating operation Defrosting: BINDER chambers are very diffusion-proof. To ensure high temperature precision there is no automatic cyclic defrosting device. The refrigerating system largely avoids icing of the evaporation plates. However, at very low temperatures the moisture in the air can condense on the evaporator leading to icing. -
Page 104: Anti-Condensation Protection Via Operation Line
Anti-condensation protection via operation line The anti-condensation protection condensates the chamber humidity at the coldest point in order to avoid the samples becoming wet from condensation. Anti-condensation protection is performed by the evapora- tor and can be programmed On/Off via operation line “Anti-condensation” in Fixed value and program modes. -
Page 105: Zero-Voltage Switching Outputs Via Operation Lines
Zero-voltage switching outputs via operation lines The chambers are equipped regularly (MKT) or optionally (MK) with four zero-voltage switching outputs (DIN sockets (7) and (8) located in the lateral control panel). The operation lines serve to switch any device connected to the zero-voltage relay output. They can be programmed On/Off in Fixed value and program modes. -
Page 106: Options
APT-COM™ 4 Basic Edition is included with the chamber. APT-COM™ 4 is available for download on the BINDER website. Upon registering the chamber, you will receive a license key with which you can activate the functionality of the Basic Edition for your downloaded version. For further information see chap. 26.2. -
Page 107: Compressed Air Connection (Option)
• Quality of the air: DIN ISO 8573-1:2010 [2:2:1] • Supply pressure: 6-8 bar domestic connection If a different connection pressure is required, please contact BINDER INDIVIDUAL Customized Solu- tions. • Permissible temperature: +18 °C / 64.4 °F up to +32 °C / 89.6 °F. - Page 108 An exchange is also necessary when the status display on the rear panel is lit or flashes in yellow. Check the status display approx. once per month. Normal operating state Filter elements and desiccant cartridges must be replaced. Contact BINDER Service Alarm. Contact BINDER Service Status display...
-
Page 109: Water Cooling (Option)
20.7 Water cooling (option) Water cooling is a regularly available option for MK 56. For other chambers it is available via BINDER Individual Customized Solutions. The water cooling serves to cool the chamber instead of the air cooling and reduces the heat, which is emitted to the ambient air during cooling operation. -
Page 110: Maintenance, Cleaning, And Service
(behind the left maintenance access flap) every week. In case of visible dirt accumulation, disconnect the chamber and clean the fan grid by suction. We recommend taking out a maintenance agreement. Please consult BINDER Service. BINDER telephone hotline:... -
Page 111: Cleaning And Decontamination
Do NOT use a neutral cleaning agent on zinc coated surfaces. Do not use cleaning agents that may cause a hazard due to reaction with components of the device or the charging material. If there is doubt regarding the suitability of cleaning products, please contact BINDER service. - Page 112 Any corrosive damage that may arise following use of other cleaning agents is excluded from liability by BINDER GmbH. Any corrosive damage caused by a lack of cleaning, is excluded from liability by BINDER GmbH. CAUTION Danger of corrosion.
-
Page 113: Decontamination
Any corrosive damage that may arise following use of other disinfectants is excluded from liability by BINDER GmbH. Any corrosive damage caused by a lack of cleaning, is excluded from liability by BINDER GmbH. With every decontamination method, always use adequate personal safety controls. -
Page 114: Sending The Chamber Back To Binder Gmbh
21.3 Sending the chamber back to BINDER GmbH If you return a BINDER product to us for repair or any other reason, we will only accept the product upon presentation of an authorization number that has previously been issued to you. An authorization num- ber (RMA number) will be issued after receiving your complaint either in writing or by telephone prior to your sending the BINDER product back to us. -
Page 115: Decommissioning
(Elektro- und Elektronikgerätegesetz, ElektroG from 20 Octo- ber 2015, BGBl. I p. 1739) or contact BINDER service who will organize taking back and disposal of the chamber according to the German national law for electrical and electronic equipment (Elektro- und El- ektronikgerätegesetz, ElektroG from 20 October 2015, BGBl. -
Page 116: Disposal Of The Chamber In The Member States Of The Eu Except For The Federal Republic Of Germany
According to Annex I of Directive 2012/19/EU of the European Parliament and of the Council on waste electrical and electronic equipment (WEEE), BINDER devices are classified as “monitoring and control instruments” (category 9) only intended for professional use“. They must not be disposed of at public col- lecting points. -
Page 117: Disposal Of The Chamber In Non-Member States Of The Eu
Alteration of the environment. For final decommissioning and disposal of the alternating climate chamber, please con- tact BINDER service. Follow the statutory regulations for appropriate, environmentally friendly disposal. The main board of the chamber includes a lithium cell. Please dispose of it according to national regula- tions. -
Page 118: Troubleshooting
Turn on the rear power switch (12). Chamber without function. Check chamber fuse and replace it if Chamber fuse has responded. appropriate. If it responds again, contact BINDER service. Controller defective. Nominal temperature exceed- ed by 20 °C due to chamber Contact BINDER service. - Page 119 (12) not turned Log in with the required higher au- Menu functions not available Menu functions not available. thorization or contact BINDER ser- with current authorization level. vice to obtain an activation code. No access to controller Password incorrect.
- Page 120 Alarm message: “- - - - “ or Contact BINDER service. sensor defective. “<-<-<“ or “>->->“ Short-circuit. Only qualified service personnel authorized by BINDER must perform repair. Repaired chambers must comply with the BINDER quality standards. MK / MKT (E5) 03/2019 page 120/158...
-
Page 121: Technical Description
(certified since December 1996 by TÜV CERT). All test equipment used is subject to the administration of measurement and test equipment that is also constituent part of the BINDER QM DIN EN ISO 9001 sys- tems. They are controlled and calibrated to a DKD standard at regular intervals. -
Page 122: Mk (E4) Technical Data
24.4 MK (E4) technical data Chamber size Exterior dimensions Width, gross (including 18 mm for 1 ac- 1000 1135 1615 cess port MK 56, 115, 240), 36 mm for 2 inch 29.3 39.37 44.69 63.58 access ports (MK 720), with plug) 1450 1725 1715... - Page 123 +22 °C +/- 3 °C / 71.6 °F +/- 5.4 °F and a power supply voltage fluctuation of +/-10%. Technical data is determined in accordance to BINDER Factory Standard Part 2:2015 and DIN 12880:2007. All indications are average values, typical for chambers produced in series. We reserve the right to change technical specifications at any time.
-
Page 124: Mkt (E4) Technical Data
24.5 MKT (E4) technical data Chamber size Exterior dimensions Width, gross (including 18 mm for 1 ac- cess port (MKT 115, 240), 36 mm for 2 mm / inch 1000/ 39.37 1135/ 44.69 1615/ 63.58 access ports (MKT 720), with plug) Height, gross (incl. - Page 125 +22 °C +/- 3 °C / 71.6 °F +/- 5.4 °F and a power supply voltage fluctuation of +/-10%. Technical data is determined in accordance to BINDER Factory Standard Part 2:2015 and DIN 12880:2007. All indications are average values, typical for chambers produced in series. We reserve the right to change technical specifications at any time.
-
Page 126: Equipment And Options (Extract)
DIN plug included Object temperature display with flexible Pt100 temperature sensor Compressed air dryer Water cooling (option for MK 56, for other chambers available via BINDER Individual Customized Solu- tions) Notch-type access port 35 x 100 mm in the door... -
Page 127: Accessories And Spare Parts (Extract)
24.7 Accessories and spare parts (extract) BINDER GmbH is responsible for the safety features of the chamber only, provided skilled electricians or qualified personnel authorized by BINDER perform all maintenance and repair, and if components relating to chamber safety are replaced in the event of failure with original spare parts. -
Page 128: Mk Heating-Up And Cooling-Down Graphs
24.8 MK heating-up and cooling-down graphs Heating-up time MK 56: Time [minutes] Cooling-down time MK 56: Time [minutes] MK / MKT (E5) 03/2019 page 128/158... - Page 129 Heating-up time MK 115: Temp/ °C Time / min Cooling-down time MK 115: Temp. / °C Time / min MK / MKT (E5) 03/2019 page 129/158...
- Page 130 Heating-up time MK 240: Temp. / °C Time / min Cooling-down time MK 240: Temp. / °C Time/ min MK / MKT (E5) 03/2019 page 130/158...
- Page 131 Heating-up time MK 720: Temp./ °C Time/ min Cooling-down time MK 720: Temp./ °C Time/ MK / MKT (E5) 03/2019 page 131/158...
-
Page 132: Mkt Heating-Up And Cooling-Down Graphs
24.9 MKT heating-up and cooling-down graphs Heating-up time MKT 115. Temp. / °C Time / min. -100 Cooling-down time MKT 115: Temp. / °C Time / min. -100 MK / MKT (E5) 03/2019 page 132/158... - Page 133 Heating-up time MKT 240: Temp./ °C Time / min Cooling-down time MKT 240: Temp./ °C Time / min MK / MKT (E5) 03/2019 page 133/158...
- Page 134 Heating-up time MKT 720: Temp. / °C Time / min. -100 Cooling-down time MKT 720: Temp. / °C - 50 Time / min. -100 MK / MKT (E5) 03/2019 page 134/158...
-
Page 135: Mk Heat Compensation
24.10 MK heat compensation MK 56 heat compensation: Temperature [°C] MK 115 heat compensation: 3500 3000 2500 2000 1500 1000 -40,0 -40,0 -39,0 -35,6 -30,4 -26,5 -18,8 -10,6 -4,4 17,8 32,0 58,0 Temperature MK 240 heat compensation: 3500 3000 2500 2000 1500 1000... -
Page 136: Mkt Heat Compensation
Temperature MK 720 heat compensation: 7000 6000 5000 4000 3000 2000 1000 Temperature Bringing in a heat load leads to continuous operation of refrigerating machine. In this case frequent maintenance intervals are necessary. 24.11 MKT heat compensation MKT 115 heat compensation: 1000 1500 2000... - Page 137 MKT 240 heat compensation: 1000 1500 2000 2500 3000 3500 Watt MKT 720 heat compensation: 1000 2000 3000 4000 5000 6000 7000 Watt Bringing in a heat load leads to continuous operation of refrigerating machine. In this case frequent maintenance intervals are necessary. MK / MKT (E5) 03/2019 page 137/158...
-
Page 138: Dimensions
24.12 Dimensions MK 56 dimensions: [mm] MK / MKT (E5) 03/2019 page 138/158... - Page 139 MK / MKT 115 dimensions: [mm] MK / MKT (E5) 03/2019 page 139/158...
- Page 140 MK 240 dimensions: [mm] MK / MKT (E5) 03/2019 page 140/158...
- Page 141 MKT 240 dimensions: [mm] MK / MKT (E5) 03/2019 page 141/158...
- Page 142 MK / MKT 720 dimensions: [mm] MK / MKT (E5) 03/2019 page 142/158...
-
Page 143: Certificates And Declarations Of Conformity
Certificates and declarations of conformity 25.1 EU Declaration of Conformity for MK MK / MKT (E5) 03/2019 page 143/158... - Page 144 MK / MKT (E5) 03/2019 page 144/158...
- Page 145 MK / MKT (E5) 03/2019 page 145/158...
-
Page 146: Eu Declaration Of Conformity For Mkt
25.2 EU Declaration of Conformity for MKT MK / MKT (E5) 03/2019 page 146/158... - Page 147 MK / MKT (E5) 03/2019 page 147/158...
- Page 148 MK / MKT (E5) 03/2019 page 148/158...
-
Page 149: Certificate For The Gs Mark Of Conformity Of The "Deutsche Gesetzliche Unfallversicherung E.v." (German Social Accident Insurance) Dguv
25.3 Certificate for the GS mark of conformity of the “Deutsche Gesetzliche Un- fallversicherung e.V.“ (German Social Accident Insurance) DGUV MK / MKT (E5) 03/2019 page 149/158... - Page 150 MK / MKT (E5) 03/2019 page 150/158...
-
Page 151: Product Registration
Product registration 26.1 Registering a BINDER chamber MK / MKT (E5) 03/2019 page 151/158... -
Page 152: Multi Management Software Apt-Com™ 4 Basic-Edition
Register now for getting your free BINDER Multi Management Software APT-COM™ 4 BASIC-Edition With the purchase of your BINDER chamber you will receive the BINDER Multi Management Software APT-COM4™ 4 BASIC-Edition for free. BINDER´s new Multi Management Software provides management, logging, programming and documen- tation options and much more. -
Page 153: Contamination Clearance Certificate
Contamination clearance certificate 27.1 For chambers located outside the USA and Canada Declaration regarding safety and health Erklärung zur Sicherheit und gesundheitlichen Unbedenklichkeit The German Ordinance on Hazardous Substances (GefStofV), and the regulations regarding safety at the workplace, require that this form be filled out for all products that are returned to us, so that the safety and the health of our employees can be guaranteed. - Page 154 Kind of transport / transporter / Transportweg/Spediteur: Transport by (means and name of transport company, etc.) Versendung durch (Name Spediteur o.ä.) __________________________________________________________________________________ Date of dispatch to BINDER GmbH / Tag der Absendung an BINDER GmbH ___________________________________________________________________________________ MK / MKT (E5) 03/2019 page 154/158...
- Page 155 We are aware that, in accordance with Article 823 of the German Civil Code (BGB), we are directly liable with regard to third parties, in this instance especially the employees of BINDER GmbH, who have been entrusted with the handling / repair of the unit / component. / Es ist uns bekannt, dass wir gegenüber Dritten –...
-
Page 156: For Chambers Located In The Usa And Canada
Please complete this form and the Customer Decontamination Declaration (next 2 pages) and attach the required pictures. E-mail to: IDL_SalesOrderProcessing_USA@binder-world.com After we have received and reviewed the complete information we will decide on the issue of a RMA num- ber. Please be aware that size specifications, voltage specifications as well as performance specifications www.binder-world.us... - Page 157 Customer (End User) Decontamination Declaration Health and Hazard Safety declaration To protect the health of our employees and the safety at the workplace, we require that this form is com- pleted by the user for all products and parts that are returned to us. (Distributors or Service Organizations cannot sign this form) NO RMA number will be issued without a completed form.
- Page 158 4.5 Shipping laws and regulations have not been violated. I hereby commit and guarantee that we will indemnify BINDER Inc. for all damages that are a con- sequence of incomplete or incorrect information provided by us, and that we will indemnify and hold harmless BINDER Inc.
Need help?
Do you have a question about the MK Series and is the answer not in the manual?
Questions and answers
